| Article number: | 12-6-54 |
| Quantity in stock: | 1 |
TUNED FOR SPEED
The Verge D9 is a trailblazer. Born out of our 451 Verge design philosophy, it has bigger race wheels, T-Tuned™ geometry, and a wide 1x drivetrain. It’s about as much value as we could condense into one bike, and it’s ready for any upgrades you can throw at it.
| General Info |
|
| Color: | Red / Silver |
| Wheel Size: | 451 wheels |
| Speeds: | 1x9 |
| Weight: | 12.8 kg (28.2 lb) |

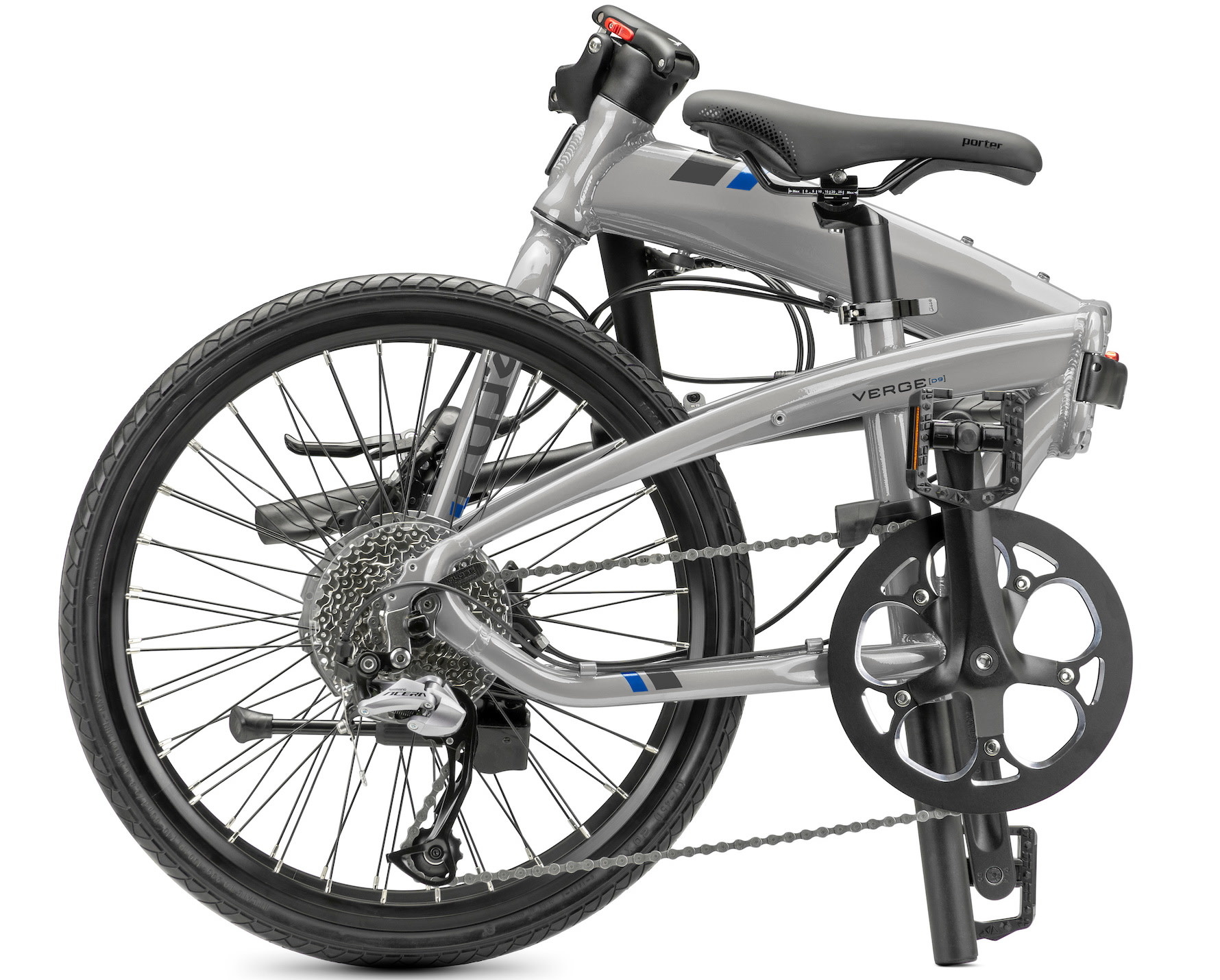

| Folding Time: | 10 sec |
| Folding Size: | 44 x 80 x 74 cm (17.3" x 31.5" x 29.1") |
| Frame Sizes: | One size |
| Gear Inches: | 30" - 97" (2.36 - 7.72 m) |
| Distance: Seatpost to Handlebar: | Min: 620 mm (24.4"); Max: 670 mm (26.4") |
| Distance: Saddle to Pedal: | Min: 700 mm (27.6"); Max: 960 mm (37.8") |
| Suggested Rider Height: | 142 - 190 cm (4'8" - 6'3") |
| Max Gross Vehicle Weight: | 120 kg (264 lb) |
| Max Load Weight: | 105 kg (230 lb) |
| Frame |
|
| Frame: | Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies |
| Fork: | Integrated, hi-tensile steel, for disc |
| Cockpit |
|

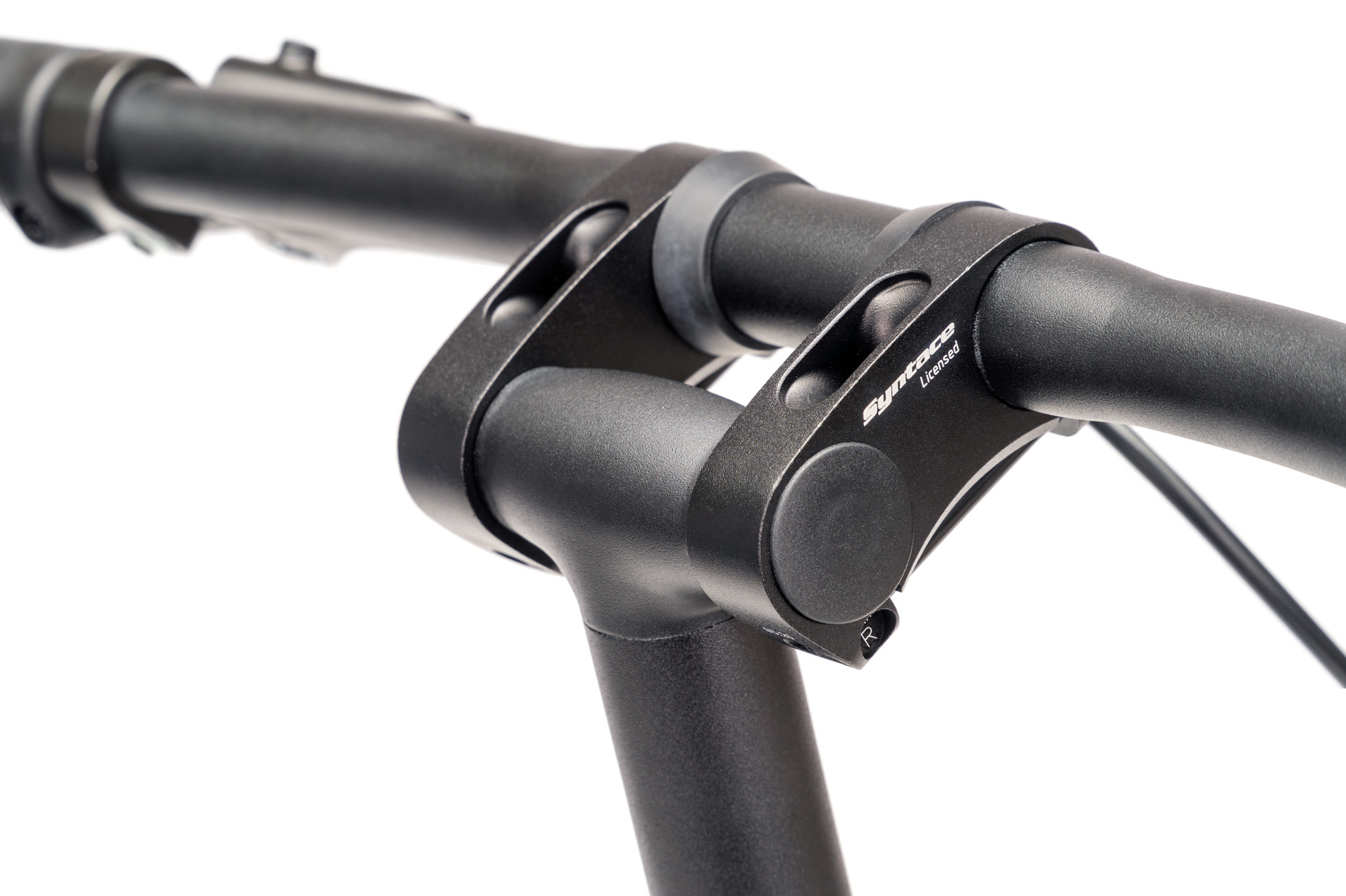

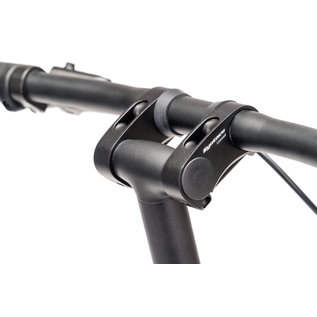

| Handlepost: | Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm |
| Stem: | Syntace VRO, adjustable, Built for Tern |
| Headset: | Flux, cartridge bearings, Physis integrated |
| Handlebar: | Flat bar, 6061-Al |
| Grip/Bars Tape: | Velo ergonomic, lock-on |
| Saddle: | Tern Porter, patented GripPad design |
| Seatpost: | SuperOversize, 6061-Al, micro-adjust clamp |
| Seatpost Clamp: | SuperOverize, 6061-Al |
| Brakes |
|
| Front Brake: | Shimano, hydraulic disc |
| Rear Brake: | Shimano, hydraulic disc |
| Brake Levers: | Shimano, hydraulic disc |
| Brake Cable & Housing: | Shimano, hydraulic |
| wheels |
|
| Front Hub: | Shimano disc |
| Rear Hub: | Shimano disc |
| Spokes and Nipples: | Stainless steel |
| Rims: | Aluminum, double wall |
| Tires: | CST, 37-451, light skinwall, 60 tpi |
| transmission |
|
| Shifter(s): | Shimano, trigger, 1 x 9 spd |
| Rear Derailleur: | Shimano Acera, Shadow RD |
| Crankset: | Forged 6061 aluminum, 53T |
| Cassette/Freewheel: | 11-36T, 9 spd |
| Bottom Bracket: | Cartridge, sealed bearings |
| Chain: | KMC 9 spd |
| Pedals: | Folding, alloy body |
| Shifter Cable & Housing: | SP |
| bells & whistles |
|
| Bell: | Aluminum |
| Kickstand: | Deluxe rear mount |
| Clip System: | Magnetix 2.0 |
| Luggage Socket: | Yes |
| Fenders: | No |
| Rack(s): | No |
