Tern Vektron S10 Gen 3 - Forest Green

Tern Vektron S10 Gen 3

THE ACCELERATOR

• New colors and updated styling
• Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
• Updated frame with a reclining battery for a lower center of gravity and better ride
• Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
• Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
• Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
• Fits easily on buses, subways and taxis for electric multi-modal commuting

Specifications

General Info
COLOR	Satin Forest
wHEEL sIZE	20"
sPEEDS	1 x 10
wEIGHT	22.1 kg (48.7 lb)
Folding Size	40 × 85.5 × 67.5 cm (15.7 × 33.7 × 26.6 in)
Folding Time	10 sec
Frame Sizes	One Size
Gear Inches	30" - 97" (2.36 - 7.72 m)
Distance: Seatpost to Handlebar	62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal	67 - 110 cm (26.4 - 43.3 in)
Suggested Rider Height	147 - 195 cm (57.9 - 76.8 in))
Max Gross Vehicle Weight	125 kg (275.6 lb)
Max Rider Weight	105 kg (231.5 lb)
Frame
Frame	Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork	Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost	Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem	Tern Andros, adjustable, forged construction, patented technology
Headset	Flux Pro, angular contact bearings, Physis integrated
Handlebar	Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
Grips	Ergon
Saddle	Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost	Tern Telescope, 34.9/30.9 mm, 2014-AL
Seat clamp	Tern Collar, 6061-AL, 2pc
Brakes

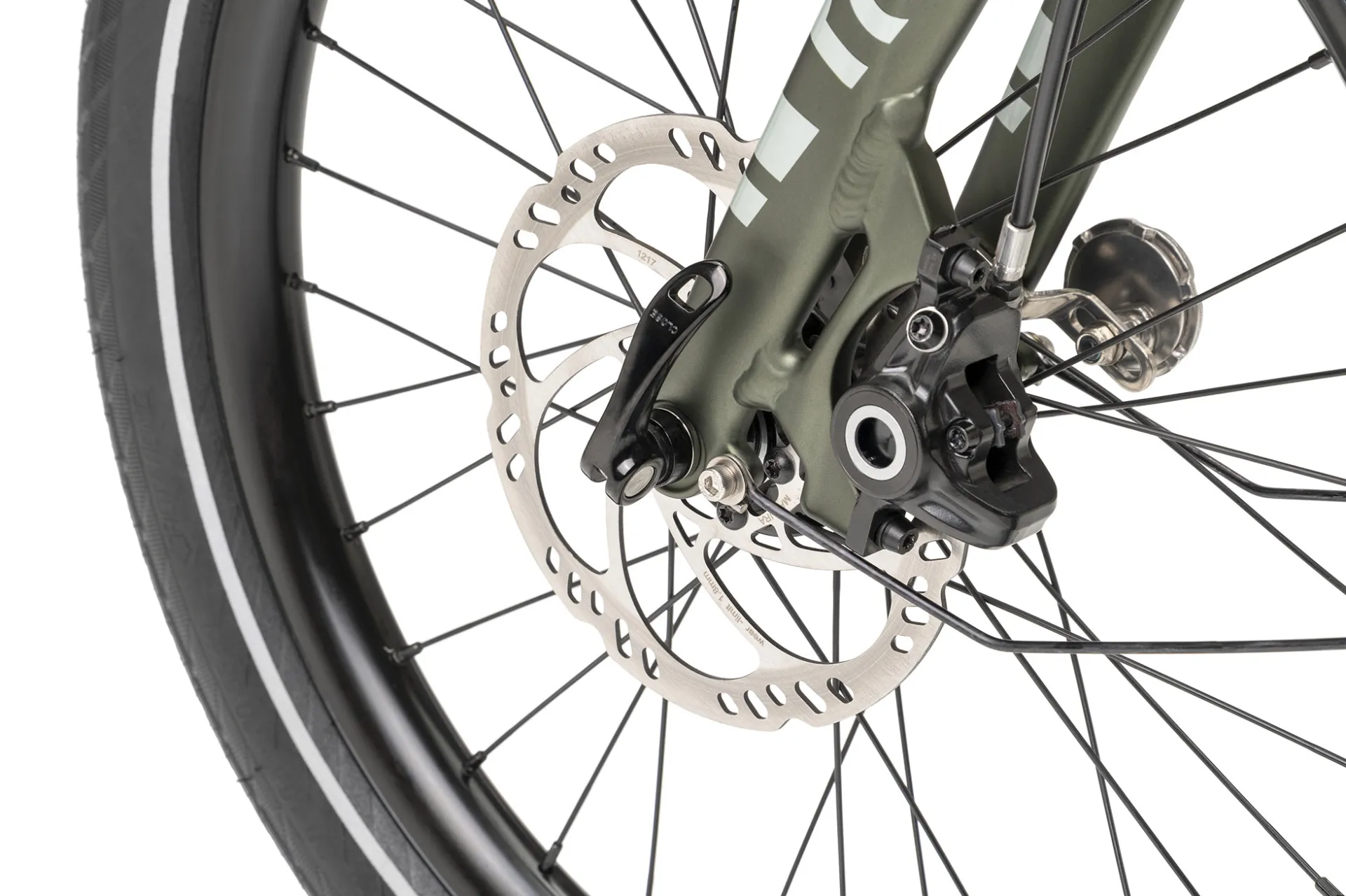

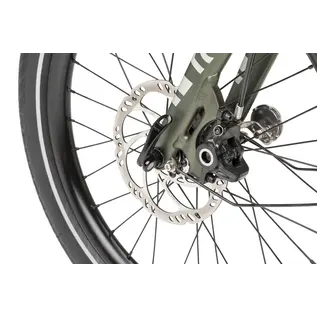

Front Brake	Magura MT4, hydraulic disc
Rear Brake	Magura MT4, hydraulic disc
Brake Levers	Magura hydraulic disc
Brake Cable & Housing	Magura, hydraulic
Wheels
Front Hub	Novatec, sealed cartridge bearing, disc
Rear Hub	Novatec, sealed cartridge bearing, disc
Spokes and Nipples	Stainless steel, double-butted
Rims	Kinetix Comp, for disc
Tires	Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
Shifter	Shimano Deore, 1 x 10 spd
Rear Derailleur	Shimano Deore Shadow+
Crankset	Vektron custom, forged 6061-AL crankarm
Cassette	Shimano 11-36T, 10 spd
Bottom Bracket	Motor integrated
Chain	10 spd, DHT for eBike, GST corrosion resistant coating
Pedals	MKS EZY
Shifter Cable & Housing	Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor	Bosch Performance, 300% Assist, 65 Nm Torque, max speed 32 km/h (20 mph)
Battery	Bosch PowerPack 400 Wh
Display	Bosch Purion, 4 mode selectable, walk assist
Range	400 Wh: 53 -106 km (34-68 mi)
Charger	Bosch 100-240V, 4A Charger
Bells & Whistles
Bell	Aluminum
Chainguard	SKS Chainblade
Kickstand	Ursus, rear mount
Clip System	Magnetix 3.0
Luggage Socket	Yes
Front Light	Tern Valo Direct, 190 lumens
Rear Light	Herrmans H-Trace, for eBike
Fenders	SKS, stainless hardware
Rack(S)	Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
Accessory	ABUS Wheel Lock, keyed-alike with Bosch battery
