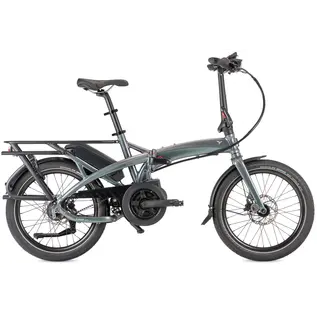

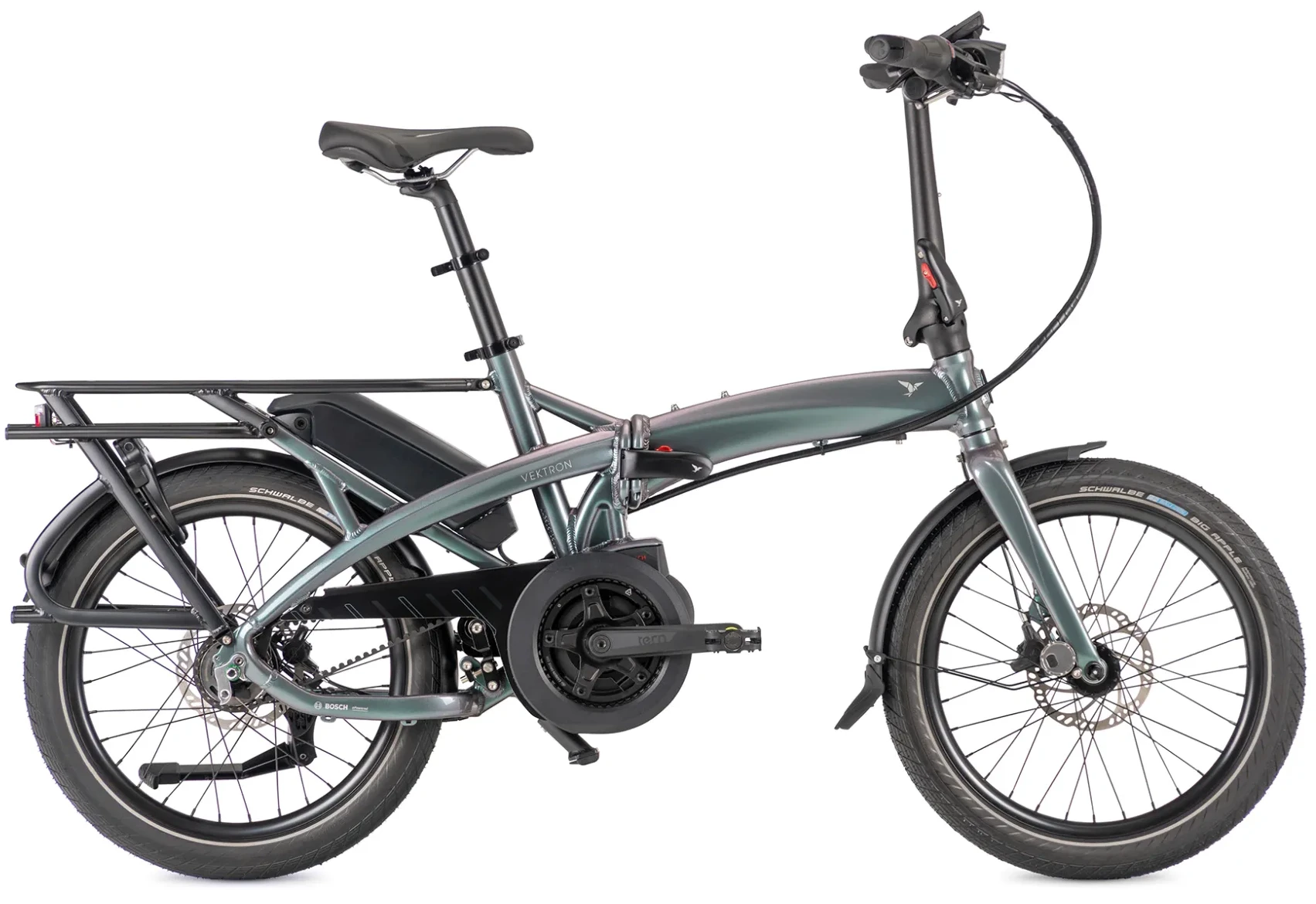

Tern Vektron P5i Gen 4 - 400Wh - Urban Verdant

Tern Vektron P10 Gen 4

Ride It, Fold It, Go Further

What makes it a P10?

• Powerful Bosch BES2 Performance motor provides up to 65 Nm of torque and 300% support
• Compact & concise Purion display keeps your handlebars sleek and offers easy thumb control
• PowerPack 400Wh battery lets you ride up to 112 km (70 mi) on a single charge

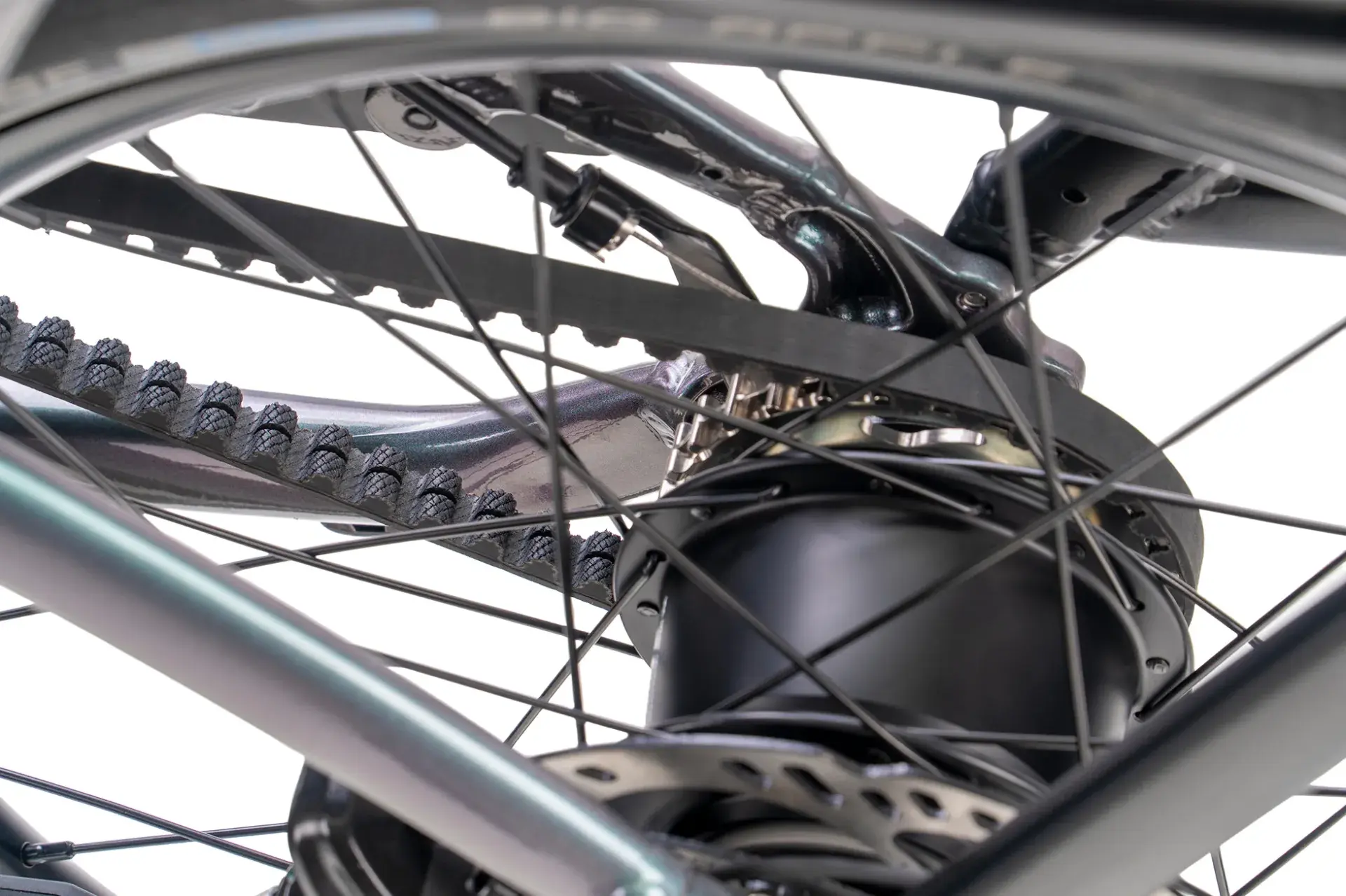

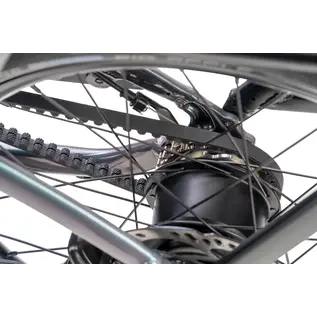

• Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter offers smooth, effortless shifting across changing terrain
• Silent, grease-free, and low-maintenance Gates Belt Drive
• ABUS frame lock, conveniently keyed alike with the battery

Vektron highlights

• Best-in-class Bosch drivetrain ensures efficient, comfortable, and natural-feeling pedal assist
• Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes

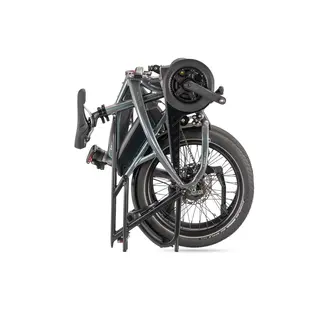

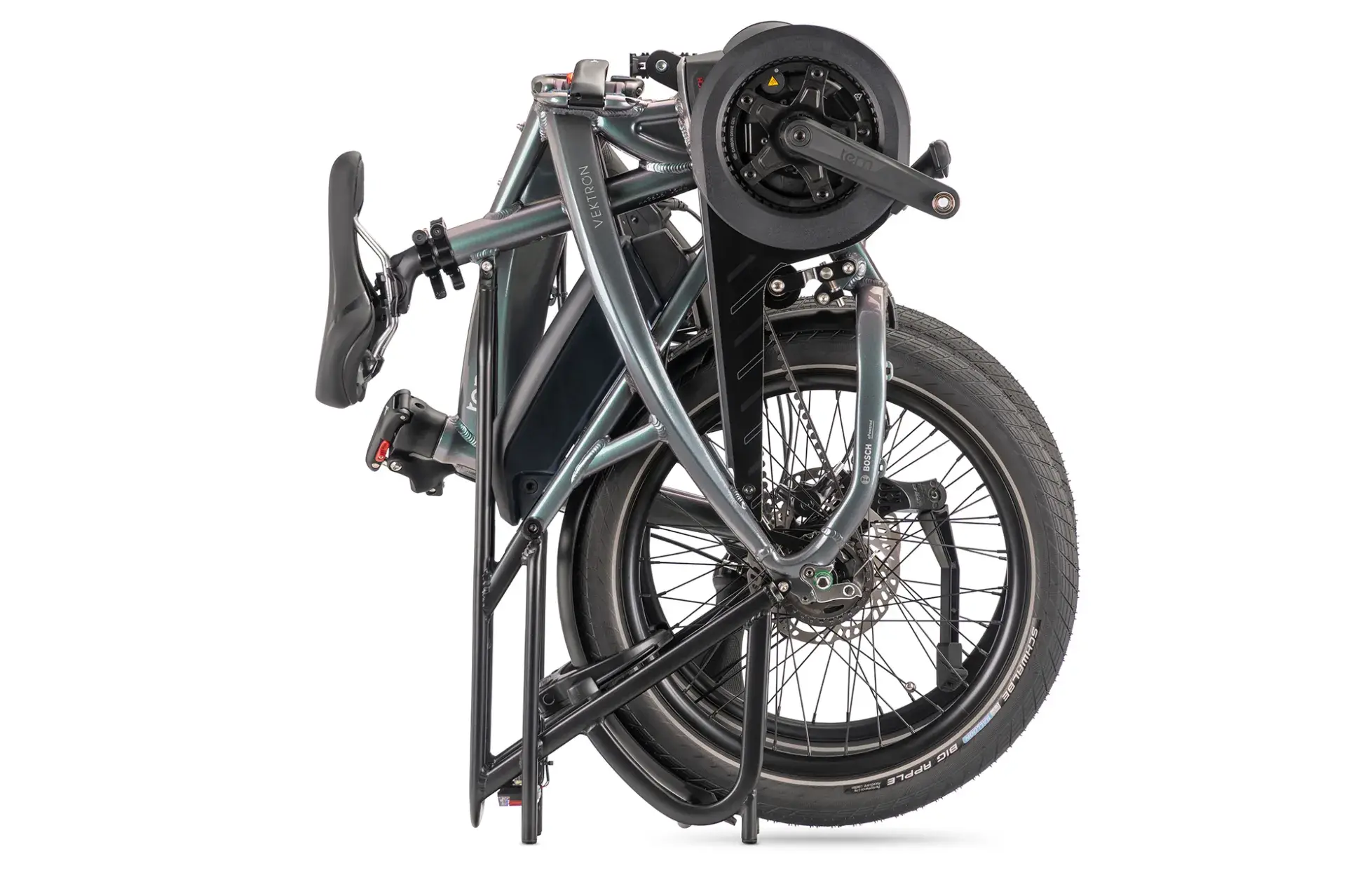

• Folds down compact in 10 seconds to fit in cars, trains, and closets
• Stands upright and rolls when folded—easy to move, easy to store
• Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
• Hydraulic disc brakes for all-weather stopping power
• Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
• UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards

Specifications

General Info
COLOR	Urban Verdant
wHEEL sIZE	20"
sPEEDS	1 x 5
wEIGHT	21.4 kg (47.2 lb)
Folding Size	42 × 85 × 69 cm (16.5 × 33.5 × 27.2 in)
Folding Time	10 sec
Frame Sizes	One Size
Gear Inches	34" - 90" (2.75 - 7.22 m)
Distance: Seatpost to Handlebar	62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal	67 - 110 cm (26.4 - 43.3 in)
Suggested Rider Height	147 - 195 cm (57.9 - 76.8 in))
Max Gross Vehicle Weight	125 kg (275.6 lb)
Max Rider Weight	105 kg (231.5 lb)
Frame

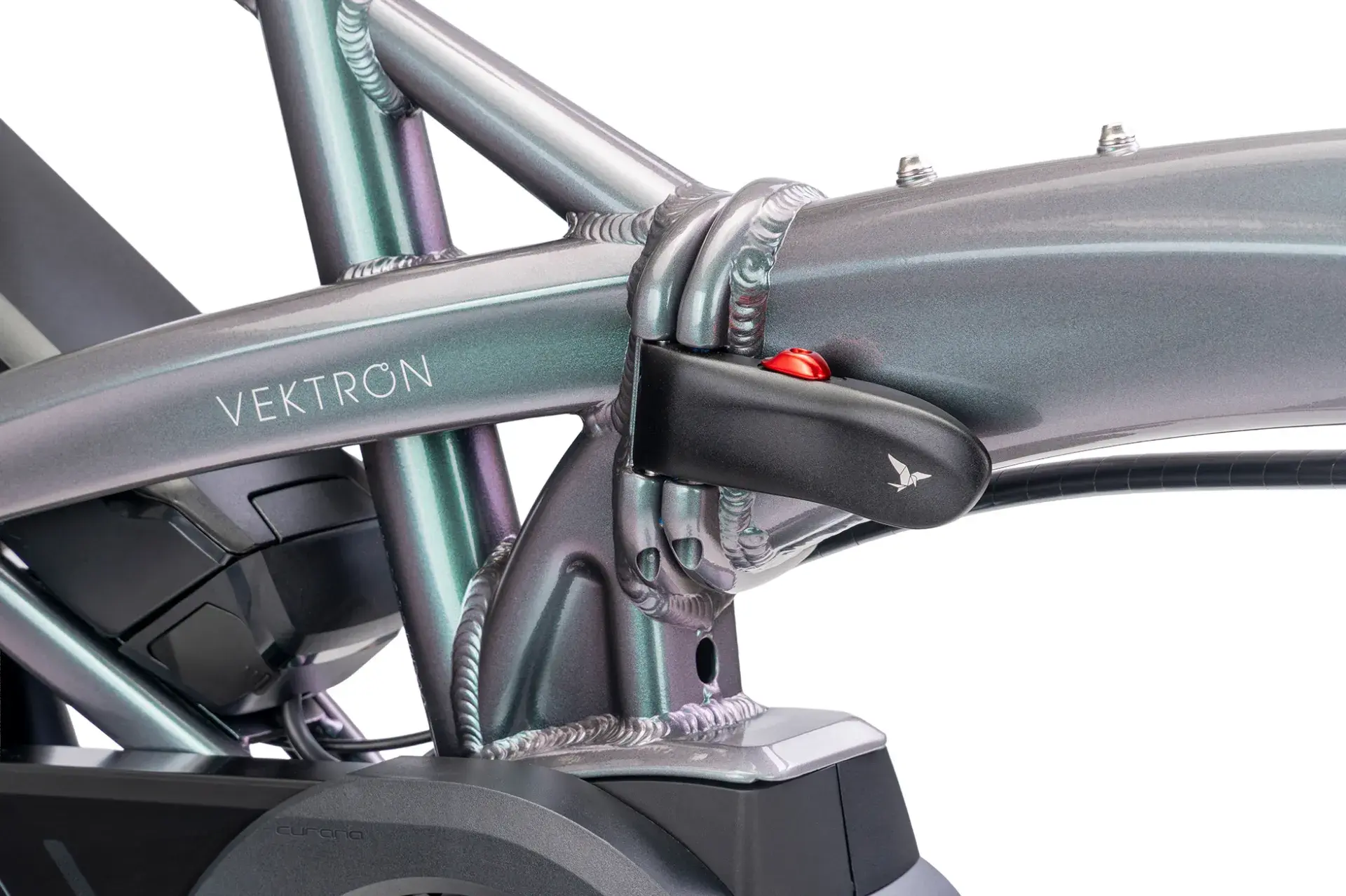

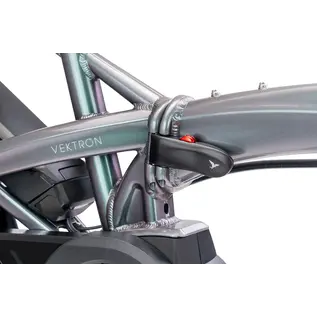

Frame	Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork	Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost	Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem	Tern Andros, adjustable, forged construction, patented technology
Headset	Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar	Tern Sweep, 6061-AL, Tern Andros adapted
Grips	Ergon
Saddle	Tern Upright by Velo
Seatpost	Tern Telescope, 34.9/30.9 mm
Seat clamp	Tern Collar
Brakes

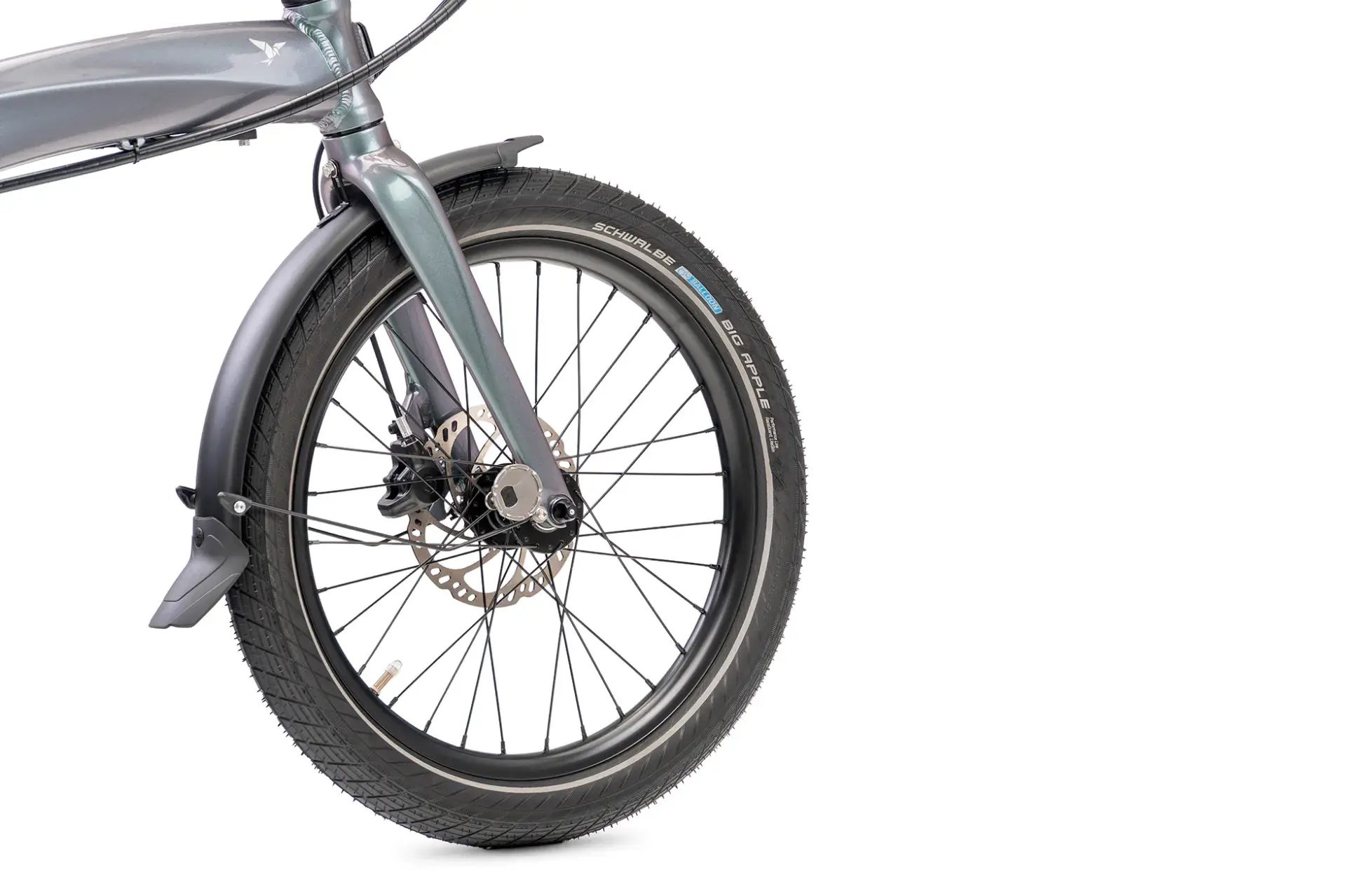

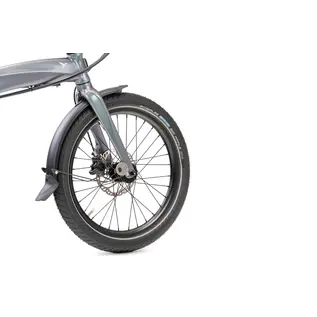

Front Brake	Magura MT4, hydraulic disc
Rear Brake	Magura MT4, hydraulic disc
Brake Levers	Magura hydraulic disc
Brake Cable & Housing	Magura, hydraulic
Wheels
Front Hub	Disc, aluminum

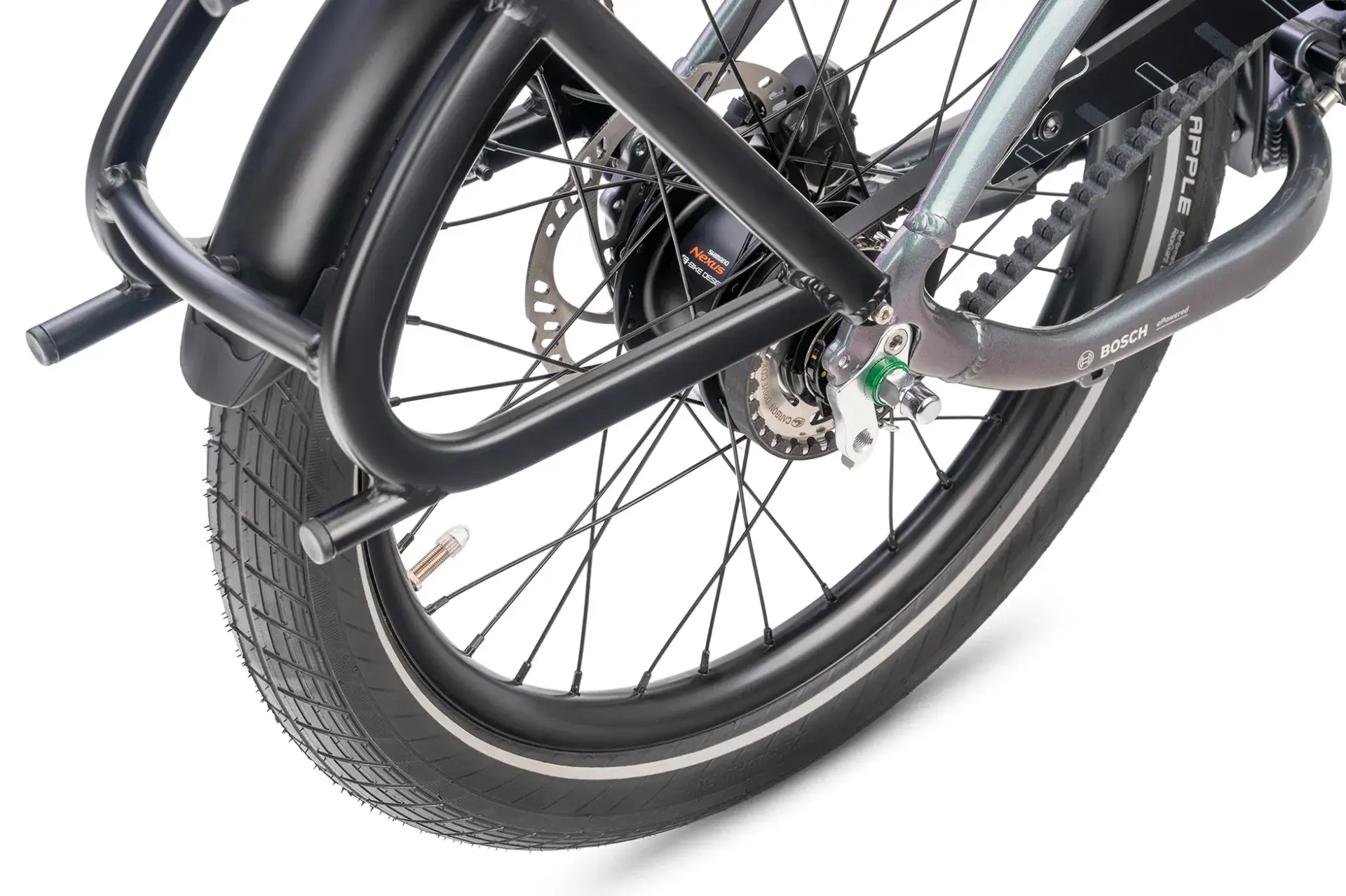

Rear Hub	Shimano Nexus 5
Spokes and Nipples	Stainless steel
Rims	Kinetix Comp, for disc
Tires	Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
Shifter	Shimano Nexus, 5 spd
Crankset	Tern custom, Gates CDX CNC machined beltring
Cassette	Gates CDX, precision CNC machined cog
Bottom Bracket	Motor integrated
Chain	Gates Carbon Drive CDC belt
Pedals	MKS EZY
Shifter Cable & Housing	Shimano
E-System
Motor	Bosch BES2 Performance, 300% Assist, 65 Nm Torque, max speed 32 km/h (20 mph)
Battery	Bosch PowerPack 400 Wh
Display	Bosch Intuvia
Range	400 Wh: 45 -112 km (28-70 mi)
Charger	Bosch 100-240V, 4A Charger
Bells & Whistles
Bell	Aluminum
Chainguard	Tern Custom, full chain cover
Kickstand	Ursus, rear mount
Clip System	Magnetix 3.0
Luggage Socket	Yes
Front Light	Tern Valo Direct, 190 lumens
Rear Light	Herrmans H-Trace, for eBike
Fenders	SplashGuard, stainless hardware

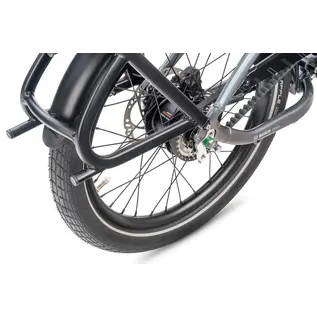

Rack(S)	Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
Frame Lock	ABUS, keyed-alike with Bosch battery
