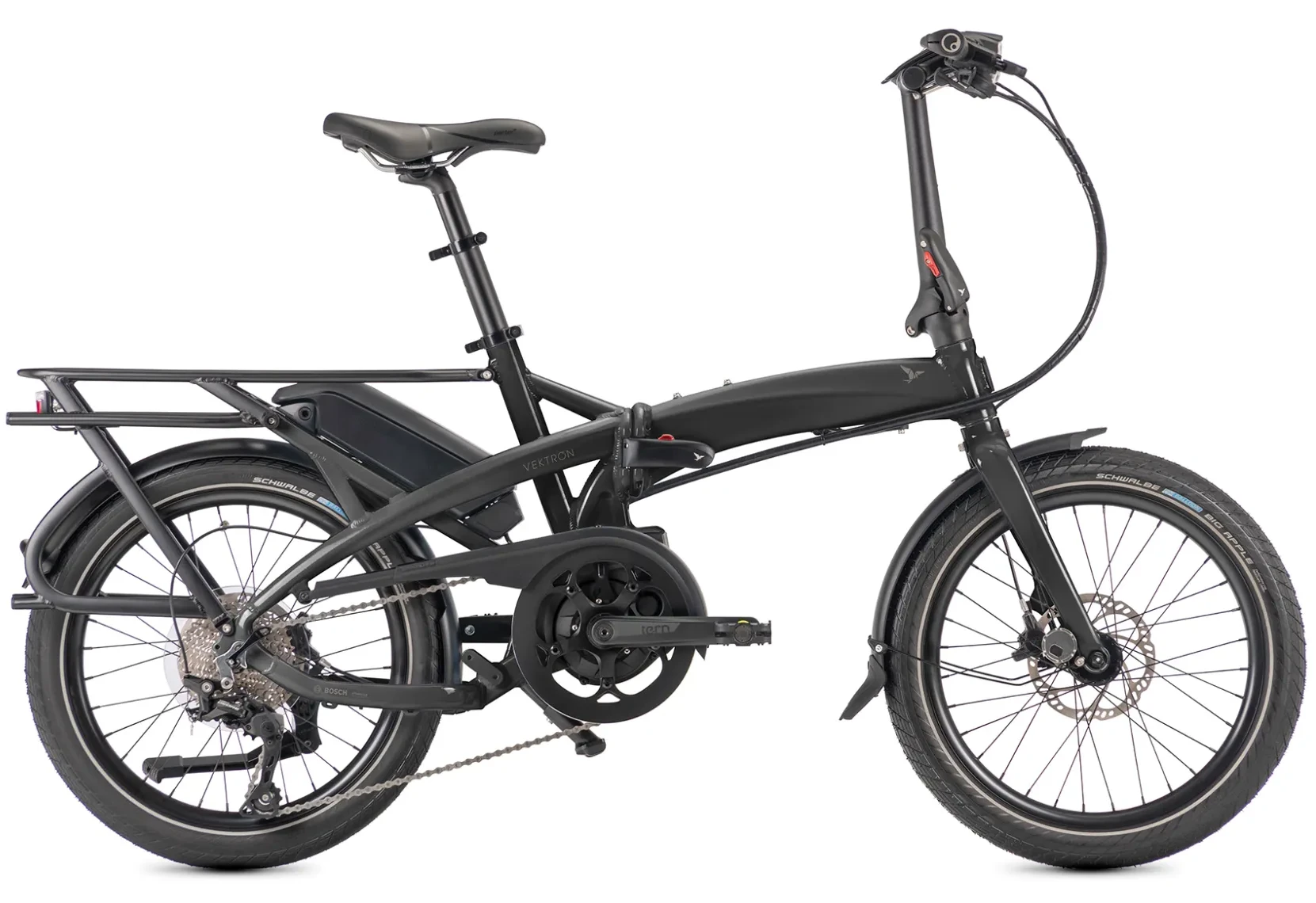

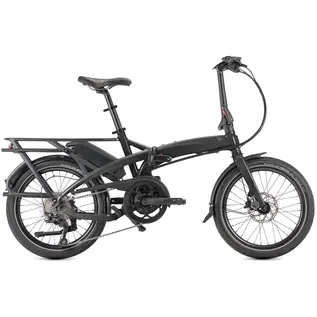

Tern Vektron P10 Gen 4 - 400Wh - Cosmic Black

Tern Vektron P10 Gen 4

Ride It, Fold It, Go Further

What makes it a P10?

• Powerful Bosch BES2 Performance motor provides up to 65 Nm of torque and 300% support
• Compact & concise Purion display keeps your handlebars sleek and offers easy thumb control
• PowerPack 400Wh battery lets you ride up to 112 km (70 mi) on a single charge

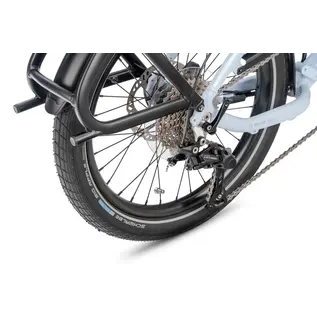

• Shimano Deore 1 x 10-speed hub for smooth, efficient shifting across changing terrain

Vektron highlights

• Best-in-class Bosch drivetrain ensures efficient, comfortable, and natural-feeling pedal assist
• Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes

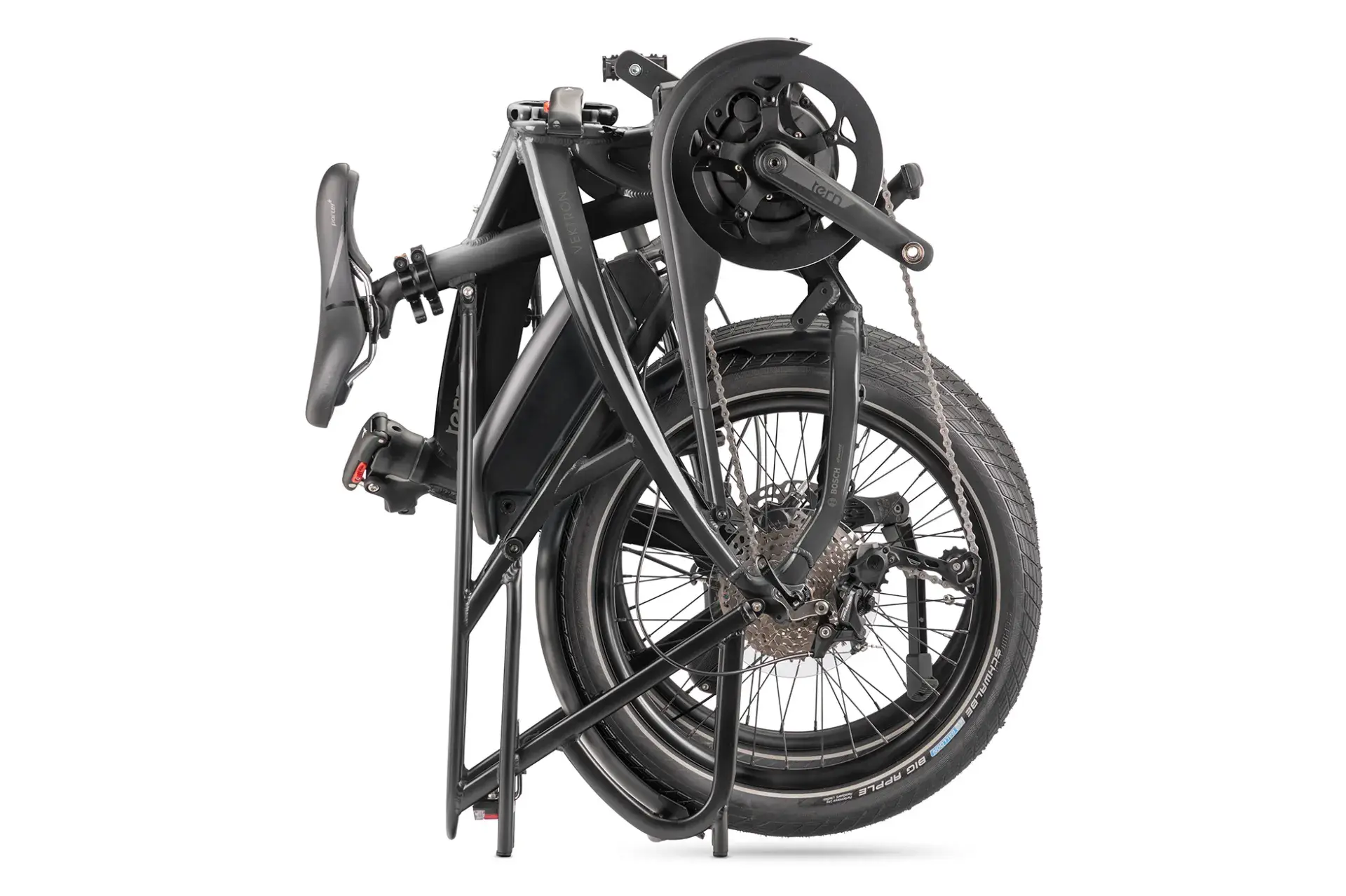

• Folds down compact in 10 seconds to fit in cars, trains, and closets
• Stands upright and rolls when folded—easy to move, easy to store
• Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
• Hydraulic disc brakes for all-weather stopping power
• Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
• UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards

Specifications

General Info
COLOR	Cosmic Black
wHEEL sIZE	20"
sPEEDS	1 x 10
wEIGHT	20 kg (44.1 lb)
Folding Size	41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
Folding Time	10 sec
Frame Sizes	One Size
Gear Inches	30" - 97" (2.36 - 7.72 m)
Distance: Seatpost to Handlebar	62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal	67 - 110 cm (26.4 - 43.3 in)
Suggested Rider Height	147 - 195 cm (57.9 - 76.8 in))
Max Gross Vehicle Weight	125 kg (275.6 lb)
Max Rider Weight	105 kg (231.5 lb)
Frame

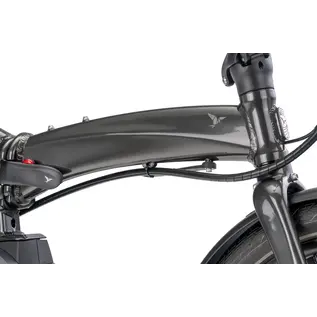

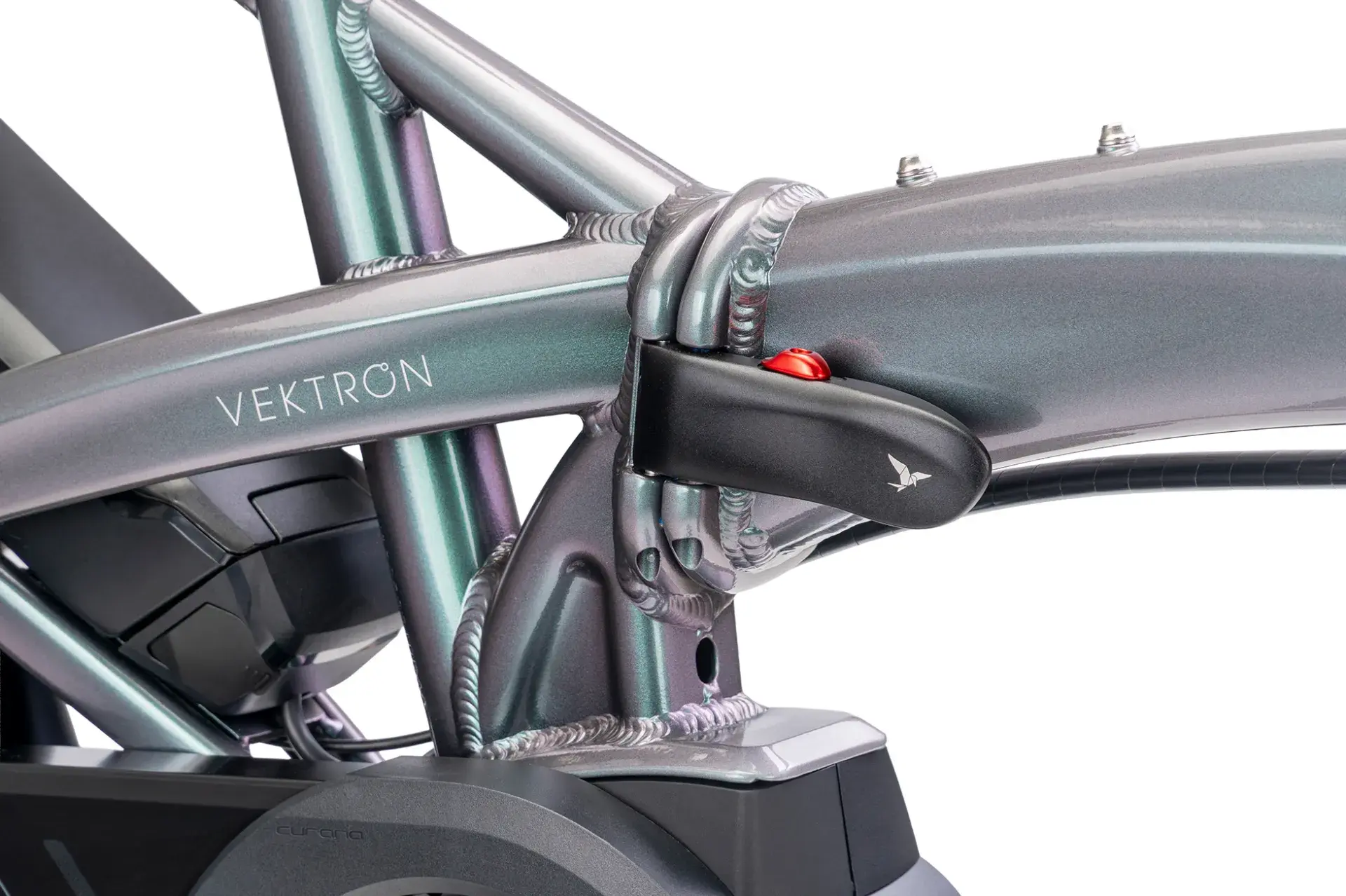

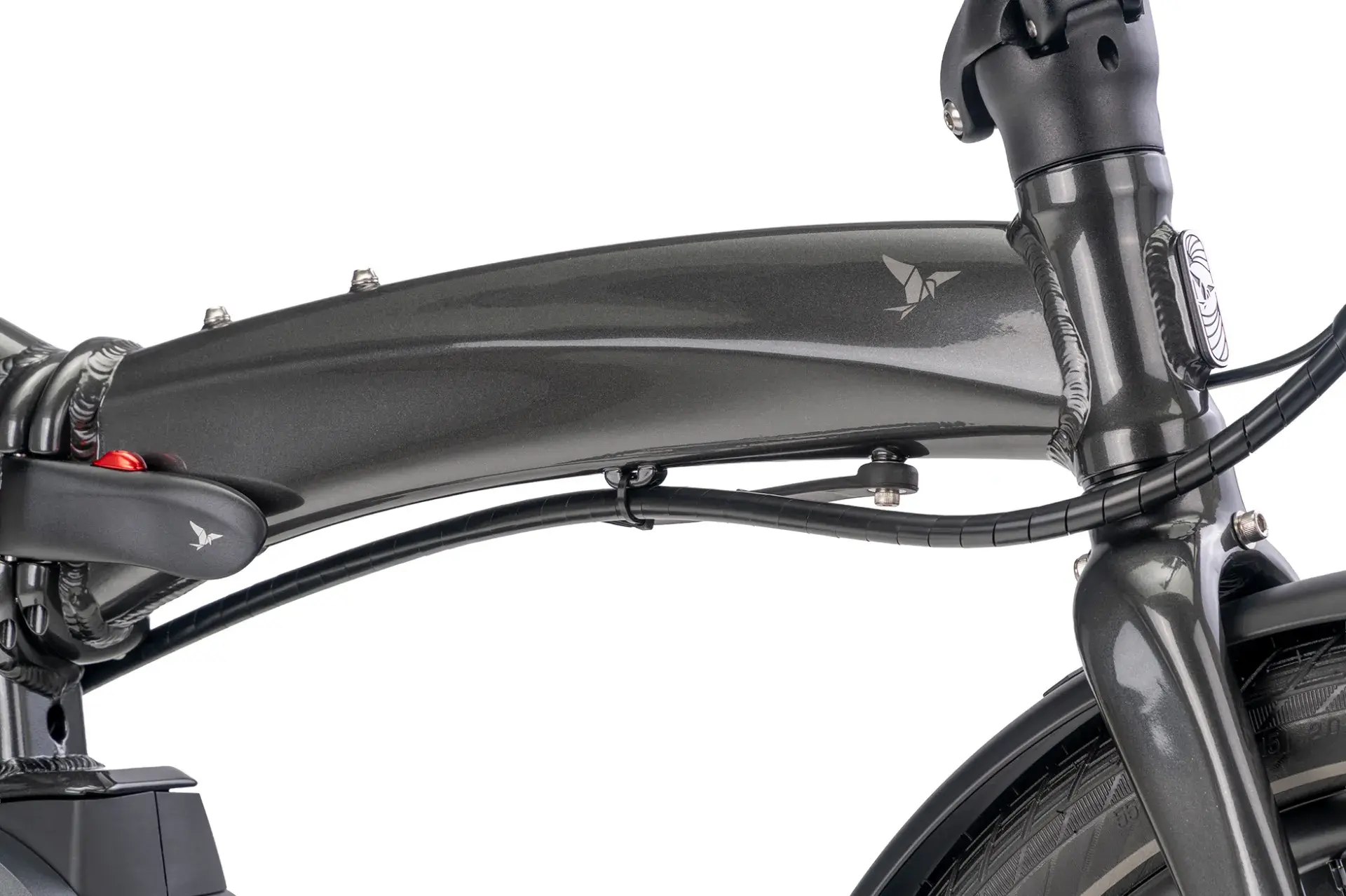

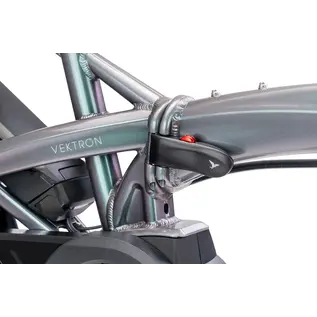

Frame	Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork	Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost	Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem	Tern Andros, adjustable, forged construction, patented technology
Headset	Tern Flux by FSA, cartridge bearings, Physis integrated
Handlebar	Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
Grips	Ergon
Saddle	Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost	Tern Telescope, 34.9/30.9 mm
Seat clamp	Tern Collar
Brakes
Front Brake	Magura MT4, hydraulic disc
Rear Brake	Magura MT4, hydraulic disc
Brake Levers	Magura hydraulic disc
Brake Cable & Housing	Magura, hydraulic
Wheels
Front Hub	Novatec, sealed cartridge bearing, disc
Rear Hub	Novatec, sealed cartridge bearing, disc
Spokes and Nipples	Stainless steel, double-butted
Rims	Kinetix Comp, for disc
Tires	Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Transmission
Shifter	Shimano Deore, 1 x 10 spd

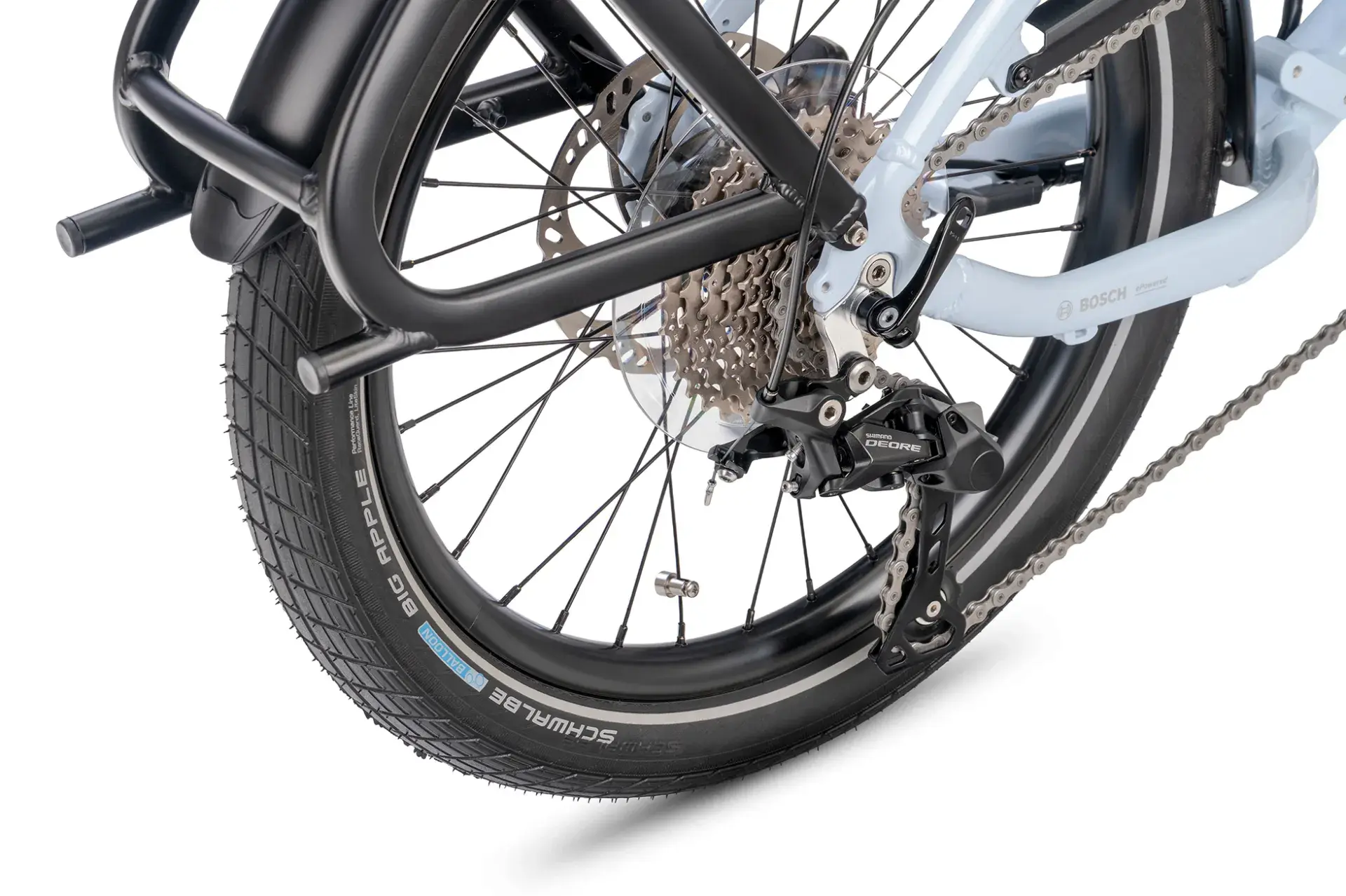

Rear Derailleur	Shimano Deore Shadow+
Crankset	Vektron custom, forged 6061-AL crankarm
Cassette	Shimano 11-36T, 10 spd
Bottom Bracket	Motor integrated
Chain	10 spd, DHT for eBike, GST corrosion resistant coating
Pedals	MKS EZY
Shifter Cable & Housing	Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor	Bosch BES2 Performance, 300% Assist, 65 Nm Torque, max speed 32 km/h (20 mph)
Battery	Bosch PowerPack 400 Wh
Display	Bosch Purion, 4 mode selectable, walk assist
Range	400 Wh: 45 -112 km (28-70 mi)
Charger	Bosch 100-240V, 4A Charger
Bells & Whistles
Bell	Aluminum
Chainguard	SKS Chainblade
Kickstand	Ursus, rear mount
Clip System	Magnetix 3.0
Luggage Socket	Yes
Front Light	Tern Valo Direct, 190 lumens
Rear Light	Herrmans H-Trace, for eBike
Fenders	SplashGuard, stainless hardware
Rack(S)	Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
