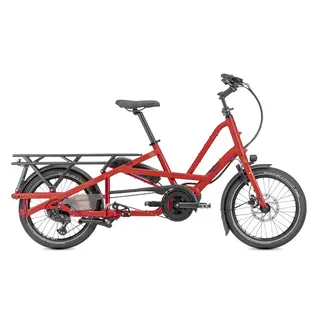

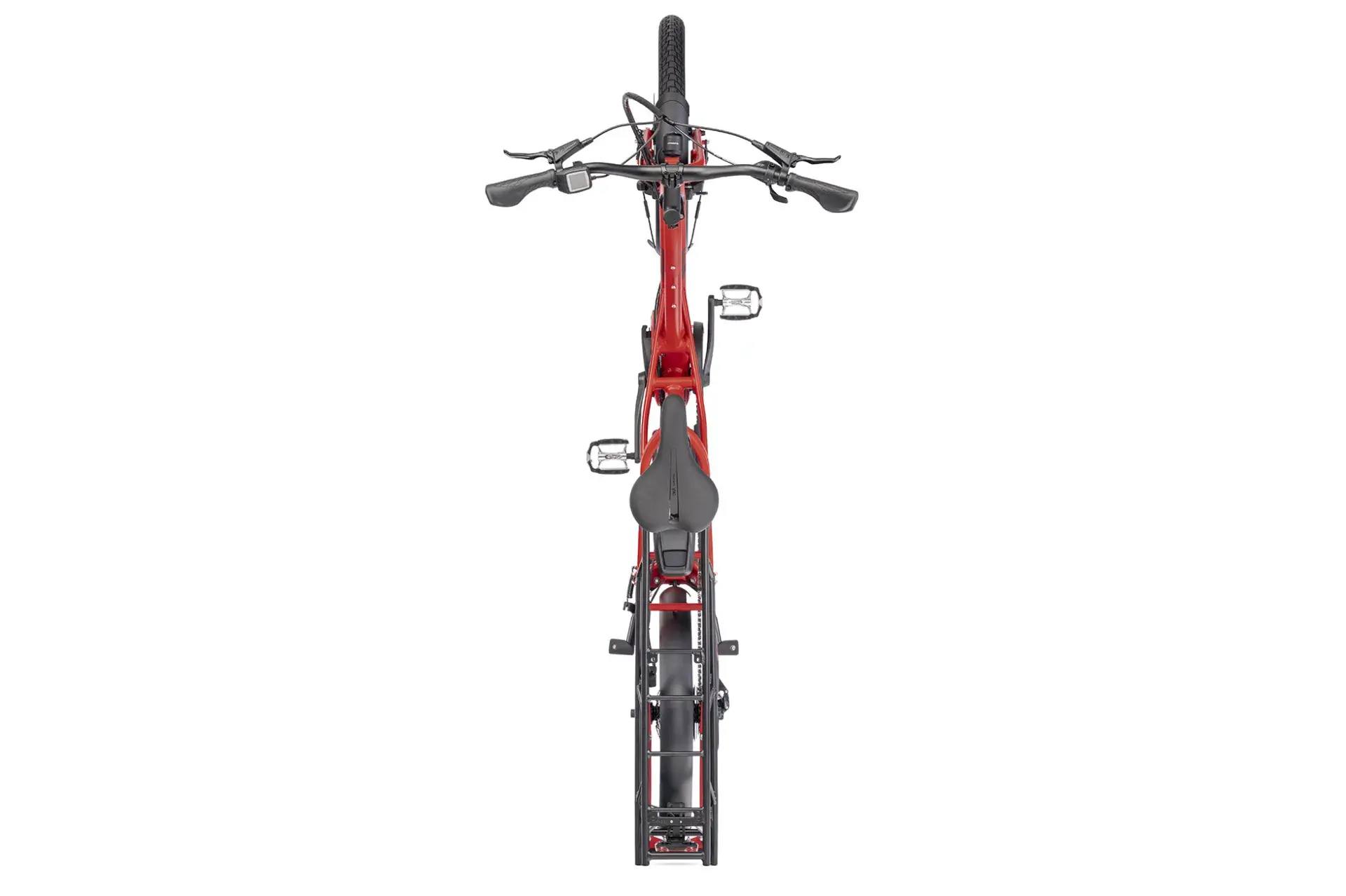

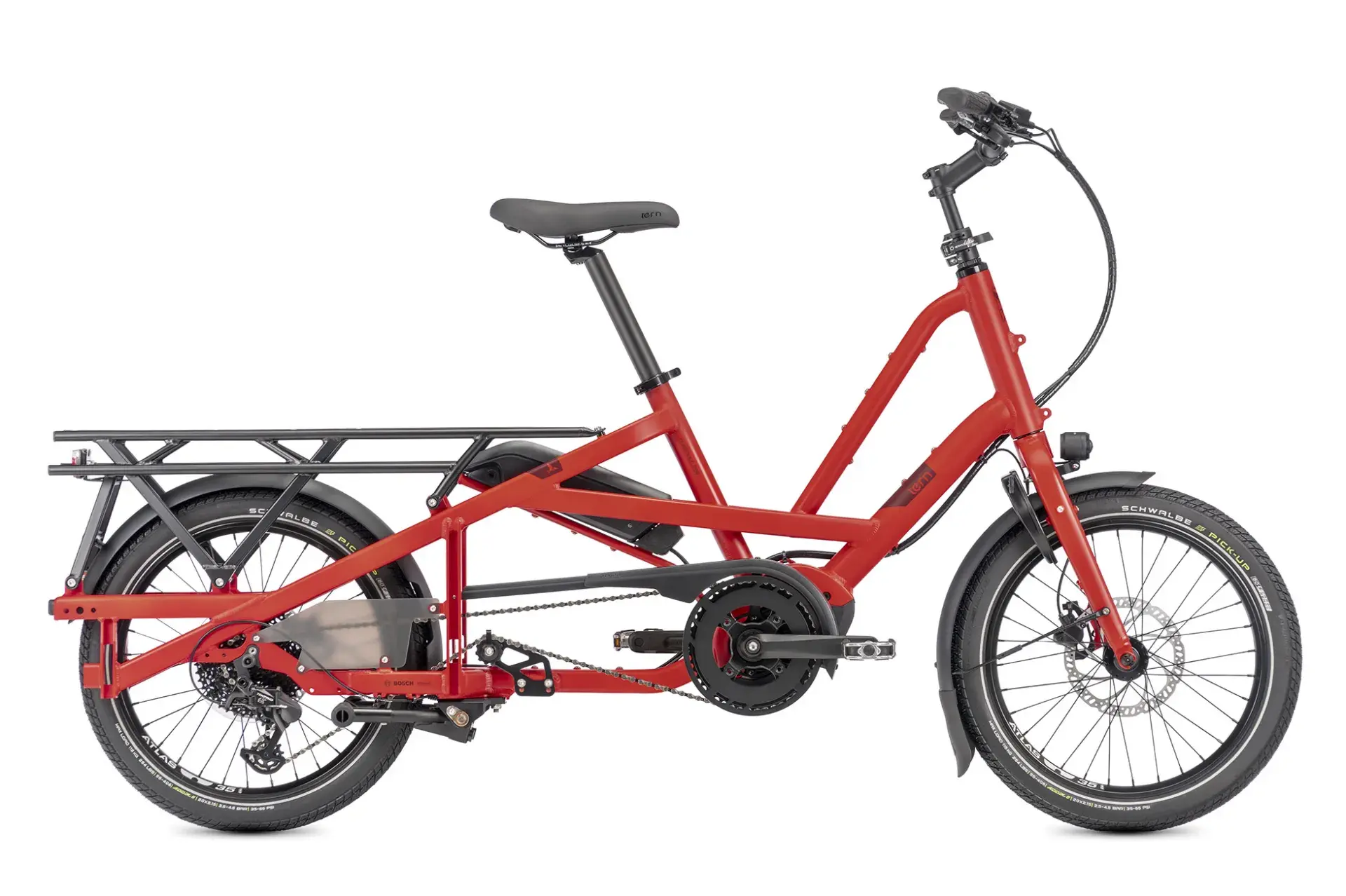

Tern Quick Haul Long D9 - 500Wh - Traffic Red

Article number: 12-9-31
Quantity in stock: 1

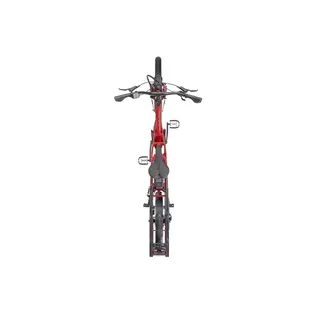

Tern Quick Haul Long D9

LIFE IS BETTER BY BIKE

  • Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
  • Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
  • Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
  • Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
  • Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)

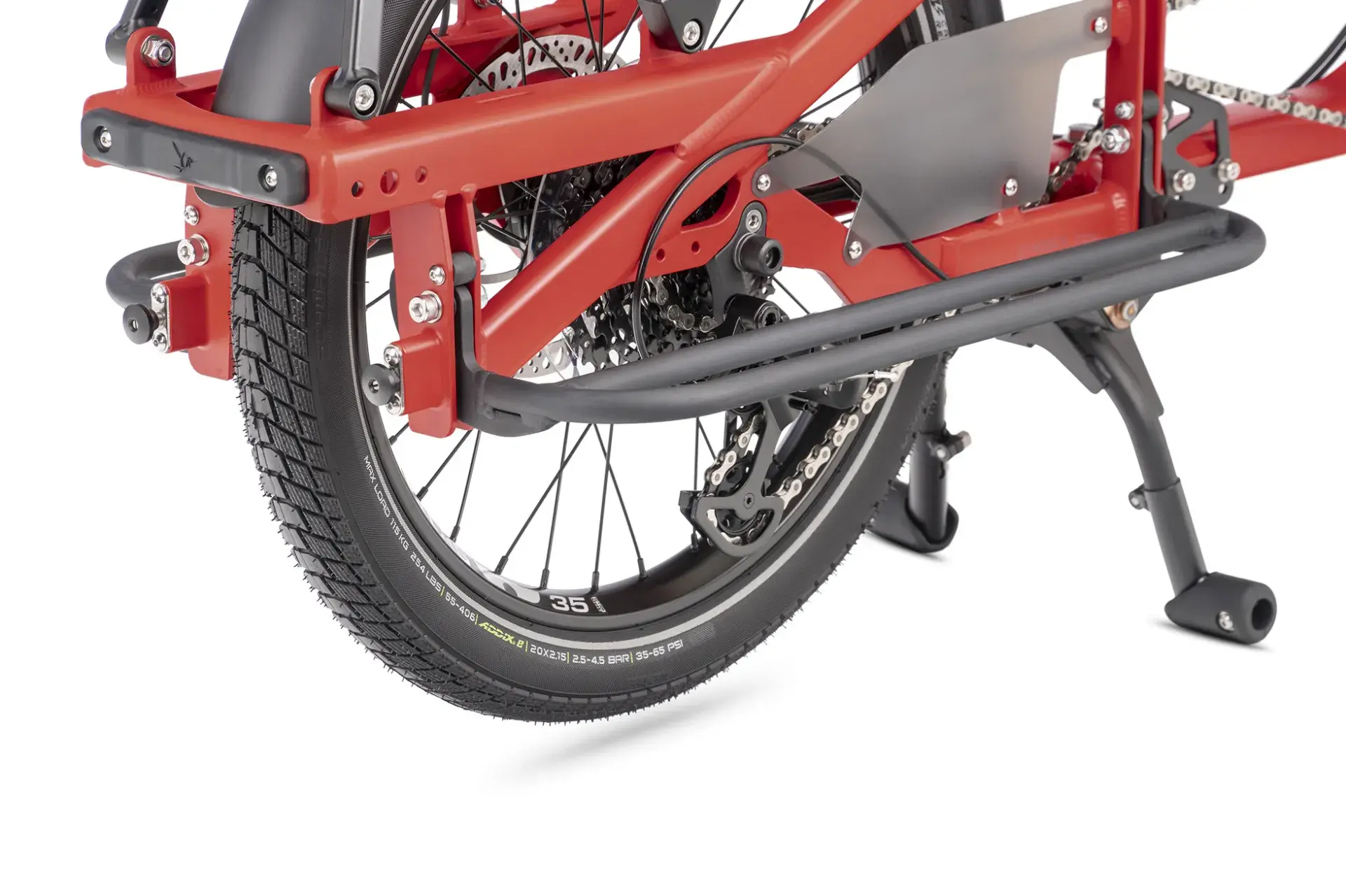

  • Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
  • Create customized setups using our wide range of kid & cargo-carrying accessories
  • Adjusts without tools to fit riders 155 - 185 cm (5'1" - 6'1"), weighing up to 120 kg (265 lb)
  • Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements



SPECIFICATIONS

GENERAL INFO
SPEEDS:1 x 9
WEIGHT: 29.3 kg (64.6 lb)
GEAR INCHES: 23" - 89" (1.87 - 7.13 m)
FRAME SIZES: One size
DISTANCE:
  SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in)
DISTANCE:
  SADDLE TO PEDAL: 76 - 99 cm (29.9 - 39 in)
SUGGESTED RIDER HEIGHT: 155 - 185 cm (61 - 72.8 in)
MAX GROSS VEHICLE WEIGHT: 190 kg (418.9 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)

FRAME
FRAME:  Tern Quick Haul, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
FORK: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)

COCKPIT

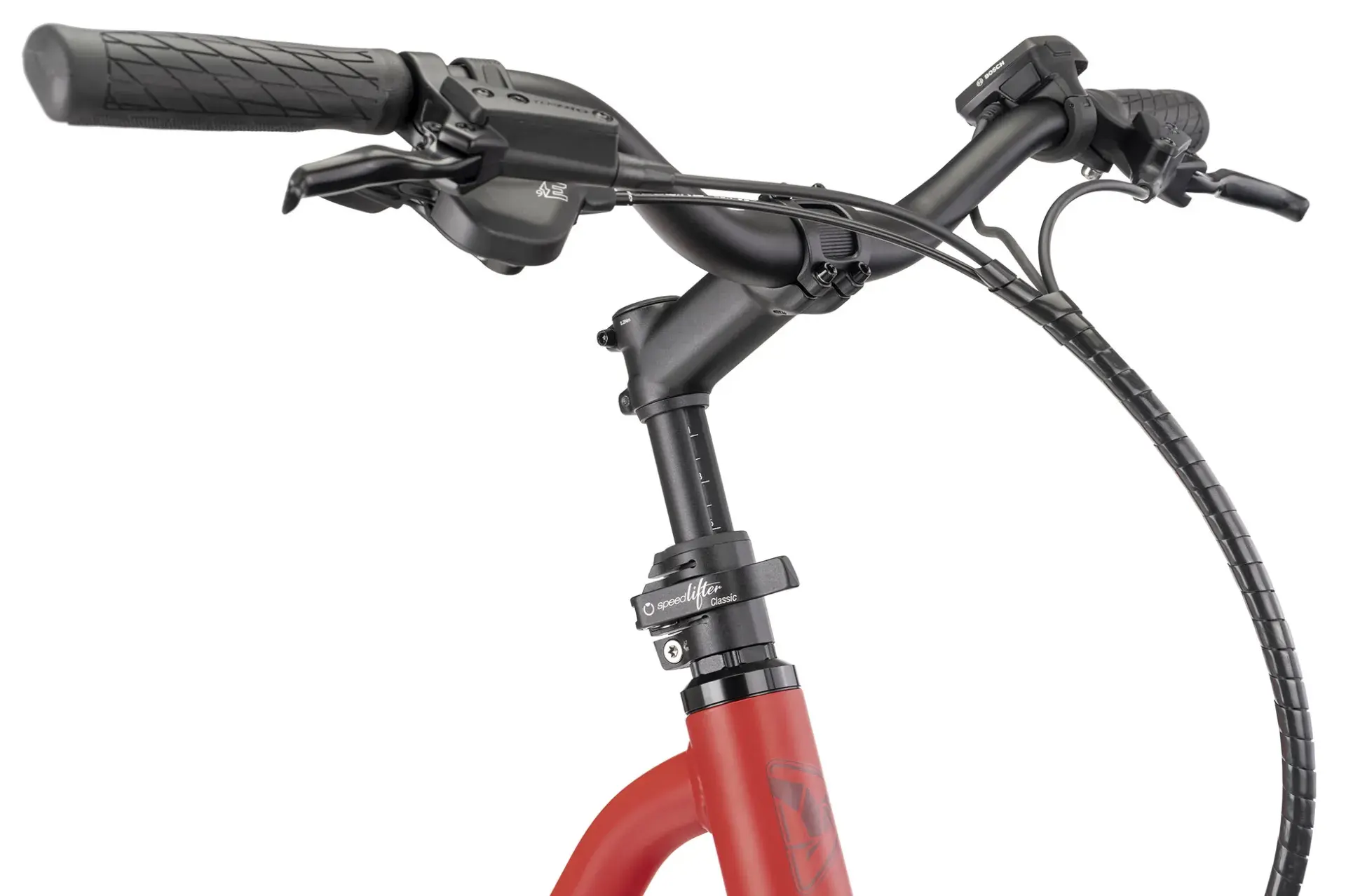

STEM: Speedlifter, adjustable, 3D forged stem, 31.8
HEADSET: TH, cartridge bearings
HANDLEBAR: Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE: Velo ergonomic, lock-on
SADDLE: Velo Comfort
SEATPOST: 31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP: Tern Collar

BRAKES
FRONT BRAKE: Tektro hydraulic disc
REAR BRAKE: Tektro hydraulic disc
BRAKE LEVERS: Tektro hydraulic disc
BRAKE CABLE & HOUSING: Tektro hydraulic disc

WHEELS
FRONT HUB: Disc, aluminum
REAR HUB: 9 spd, disc, aluminum, Boost
SPOKES AND NIPPLES: Stainless steel

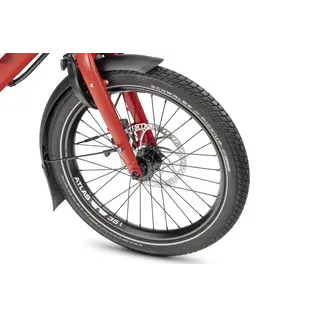

RIMS: Tern Atlas H, cargo

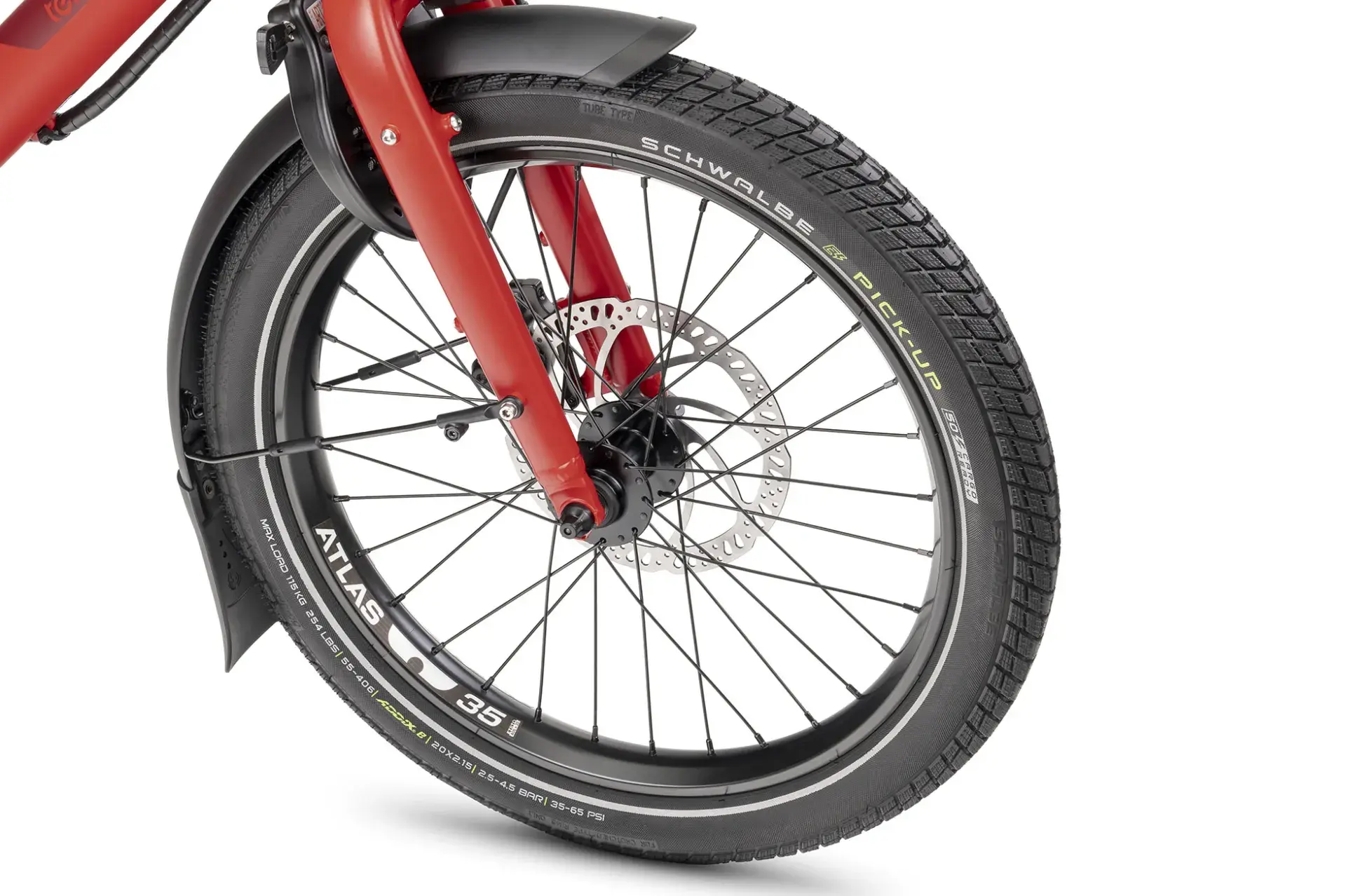

TIRES: Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex

TRANSMISSION
SHIFTER(S): Tektro, 1 x 9 spd, trigger
REAR DERAILLEUR: Tektro custom for Tern, 1 x 9 spd
CRANKSET: ern custom, forged 6061-AL crankarm, anti-drop chainring
CASSETTE/FREEWHEEL: Tektro 11-42T, 9 spd
BOTTOM BRACKET: Motor integrated
CHAIN: KMC for eBike, 9 spd
PEDALS: Urban with non-slip surface
SHIFTER CABLE & HOUSING: SP

E-SYSTEM

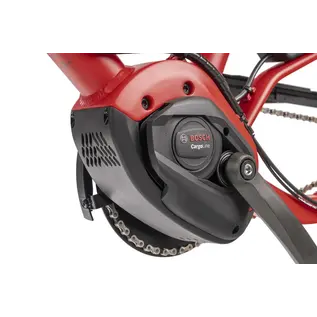

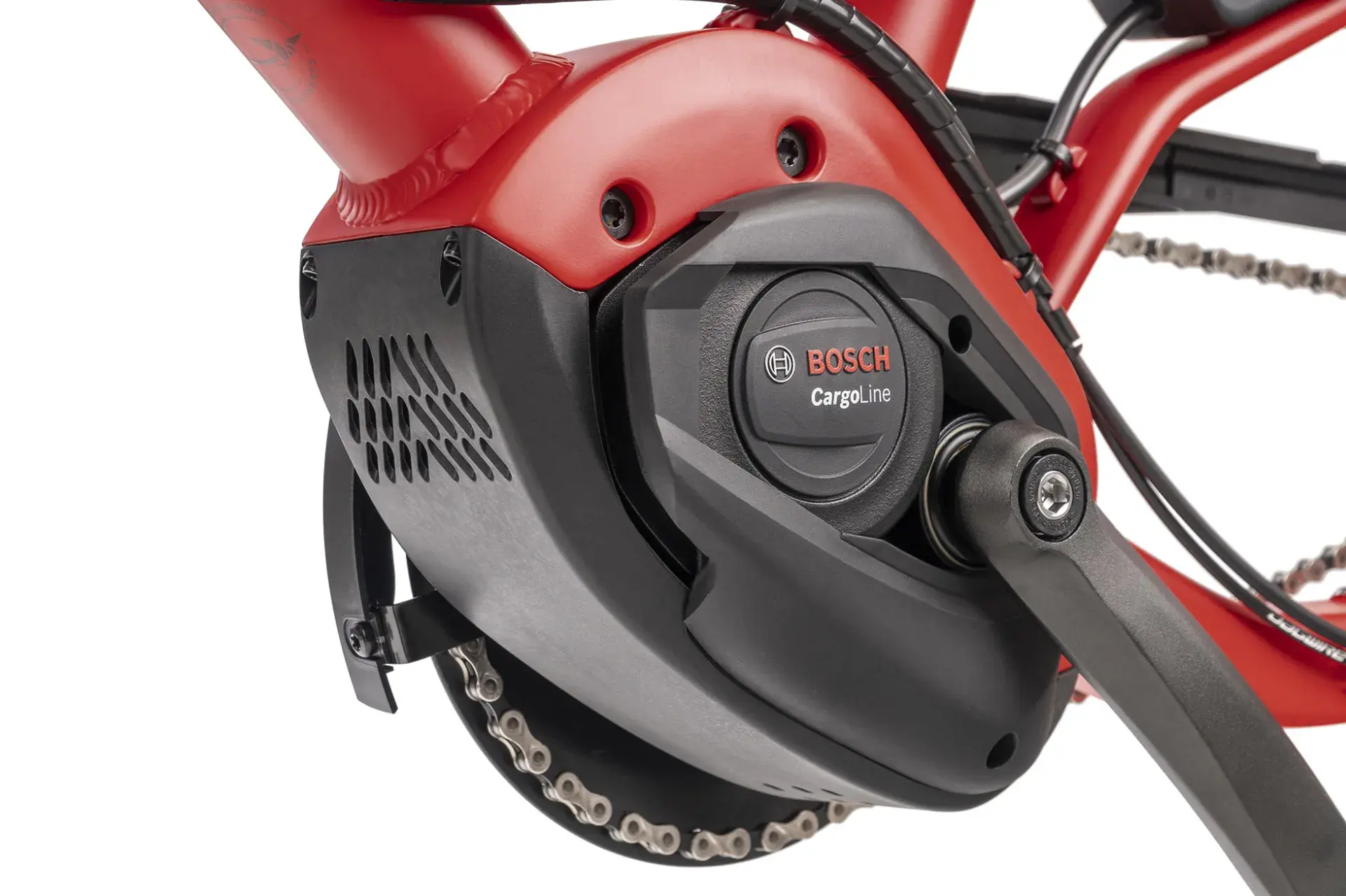

MOTOR: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 32 km/h (20 mph)
BATTERY: Bosch PowerPack 500

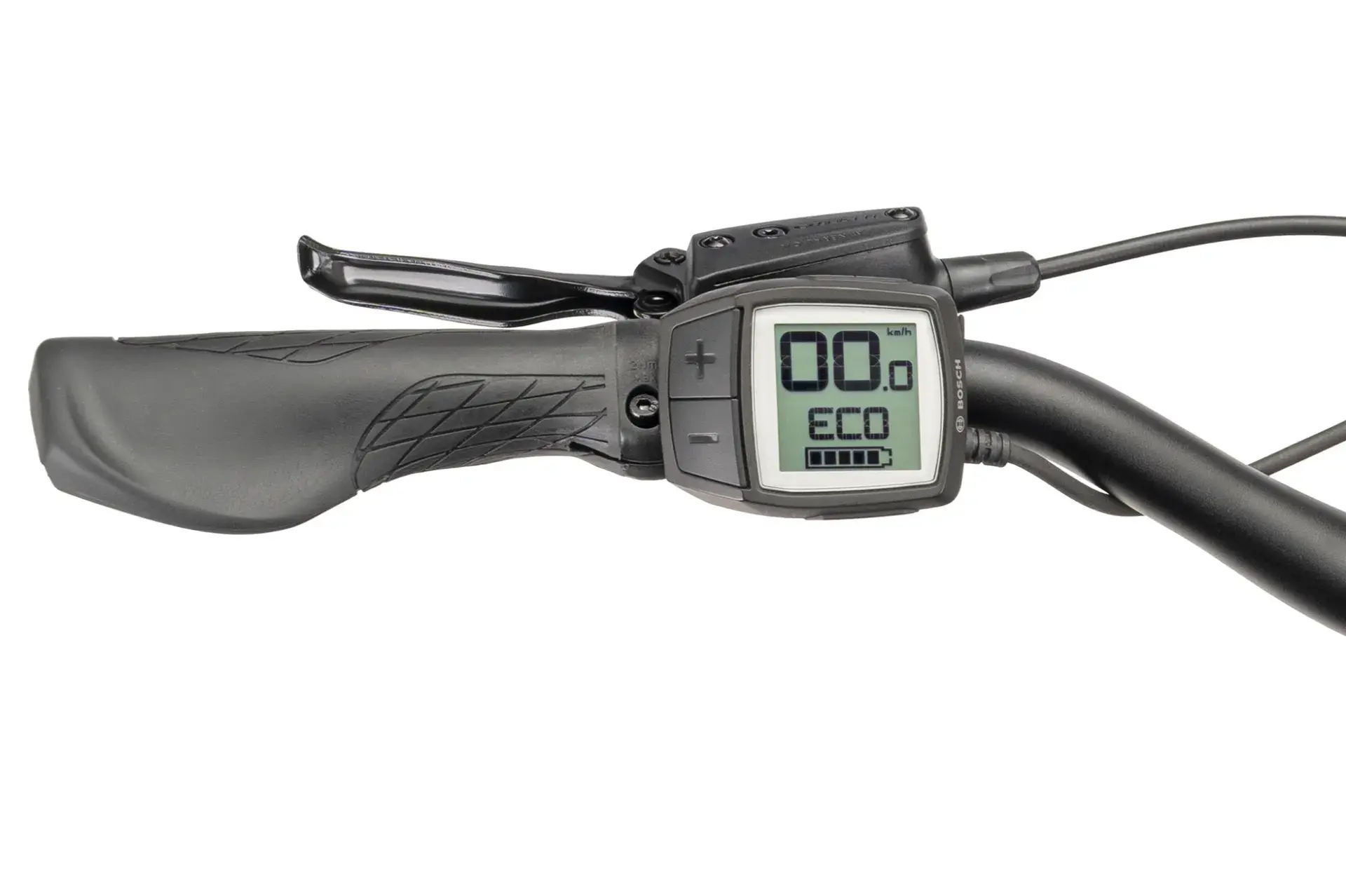

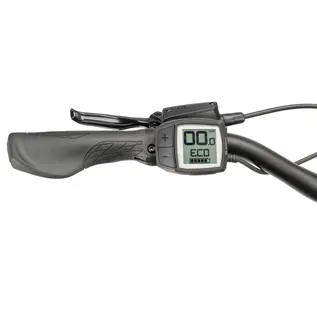

DISPLAY: Bosch Purion
RANGE: 500 Wh: 66 - 132 km (41 - 82 mi)
CHARGER: Compact Charger, 100-240V, 4A

BELLS & WHISTLES
BELL: Aluminum
CHAINGUARD: SKS Chainblade

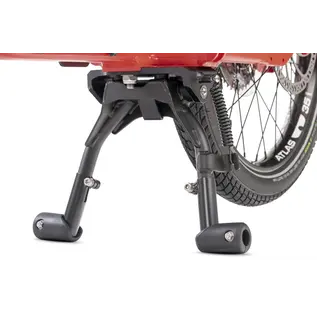

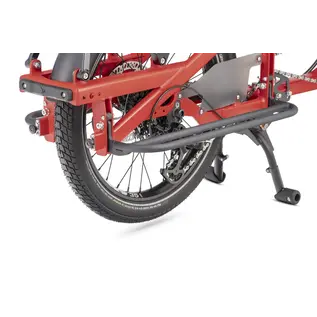

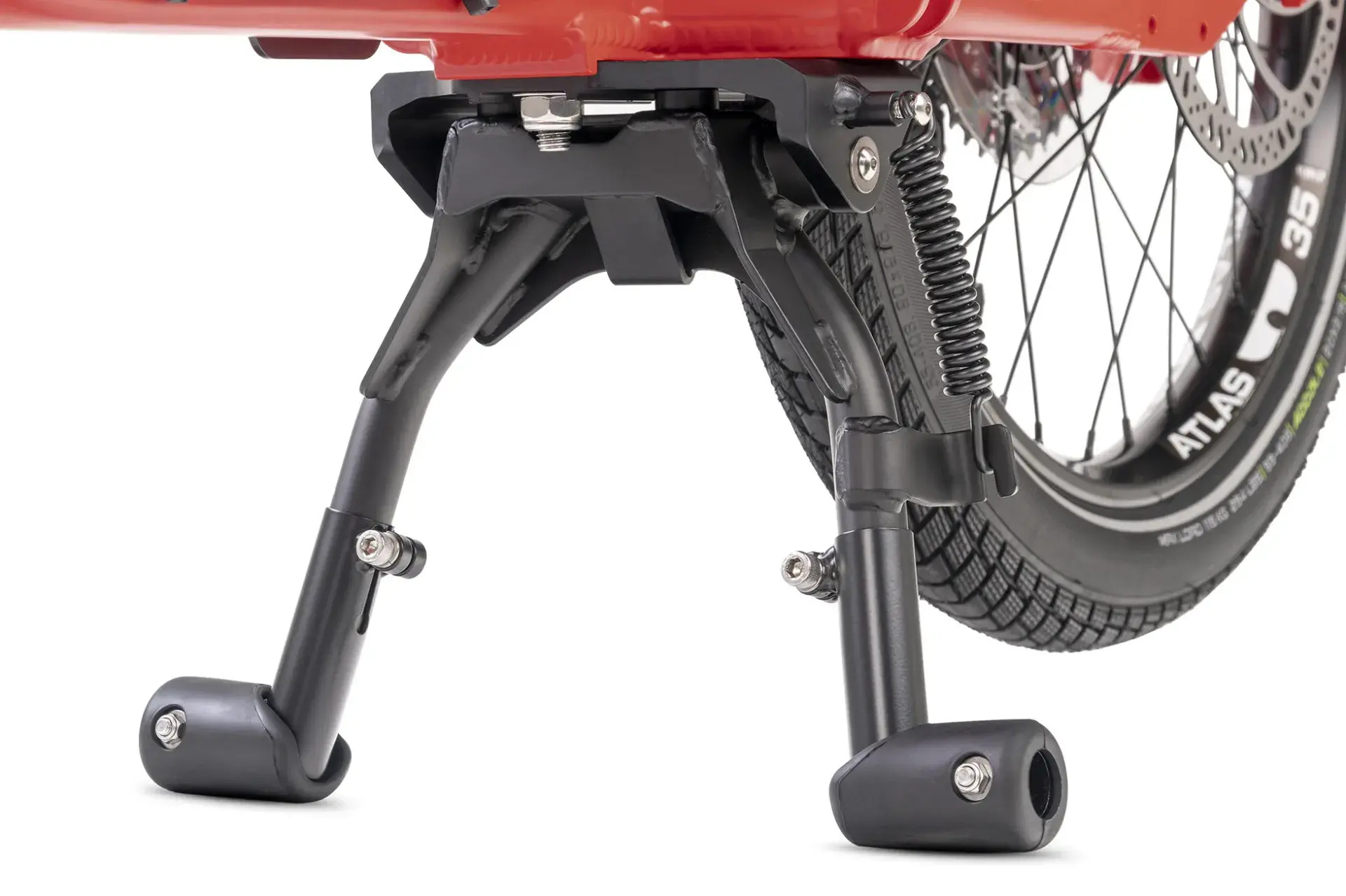

KICKSTAND: Atlas Kickstand, for cargo
LUGGAGE SOCKET: Combo Mount

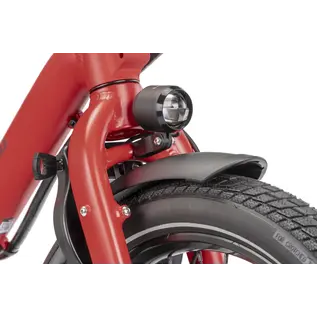

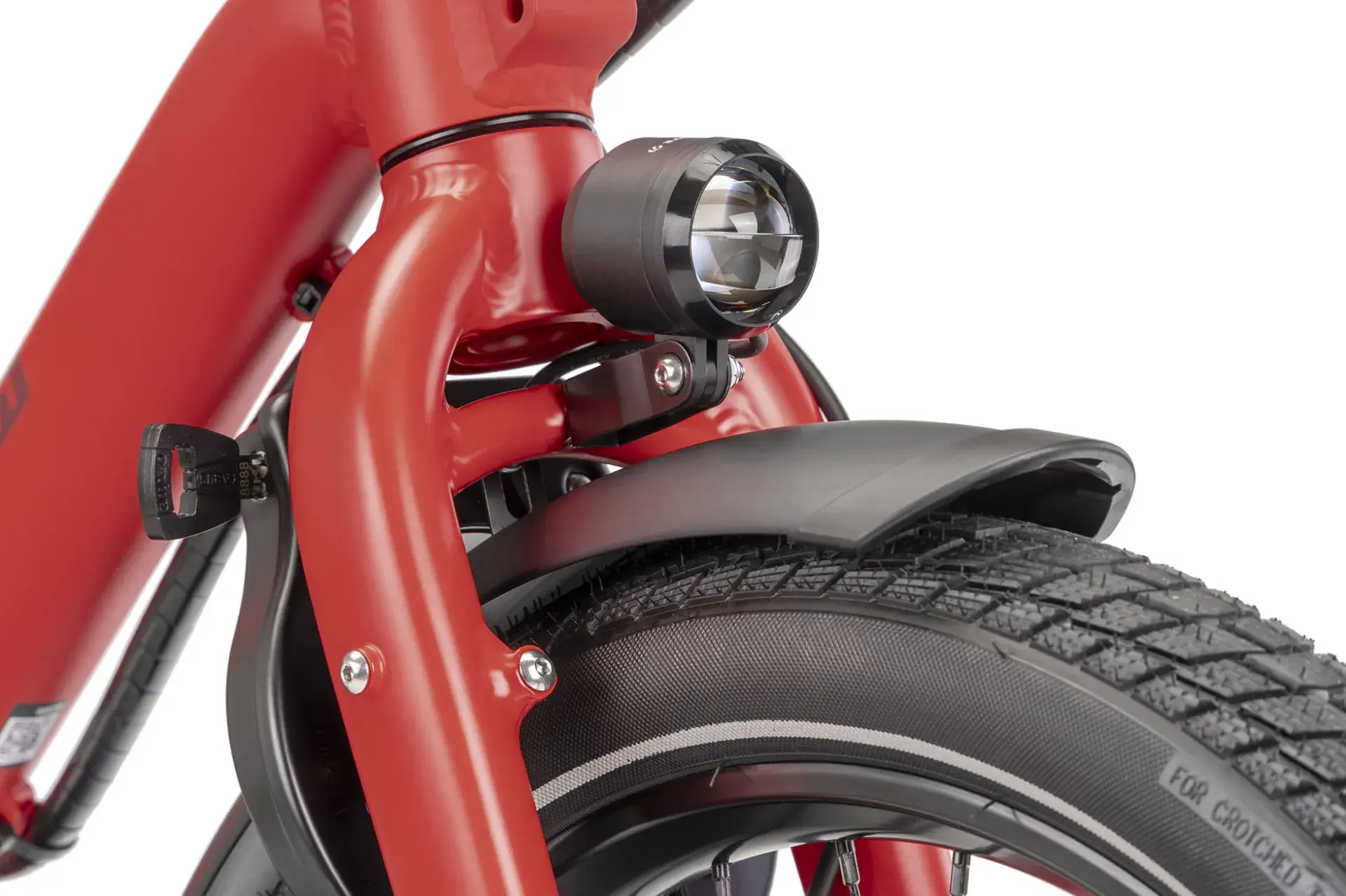

FRONT LIGHT: 90 lux, StVZO approved
REAR LIGHT: Herrmans
FENDERS: SplashGuard, stainless hardware

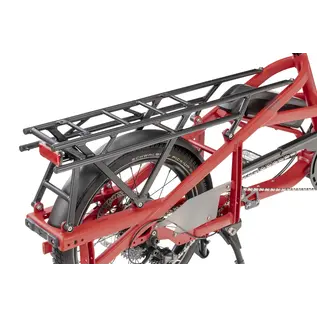

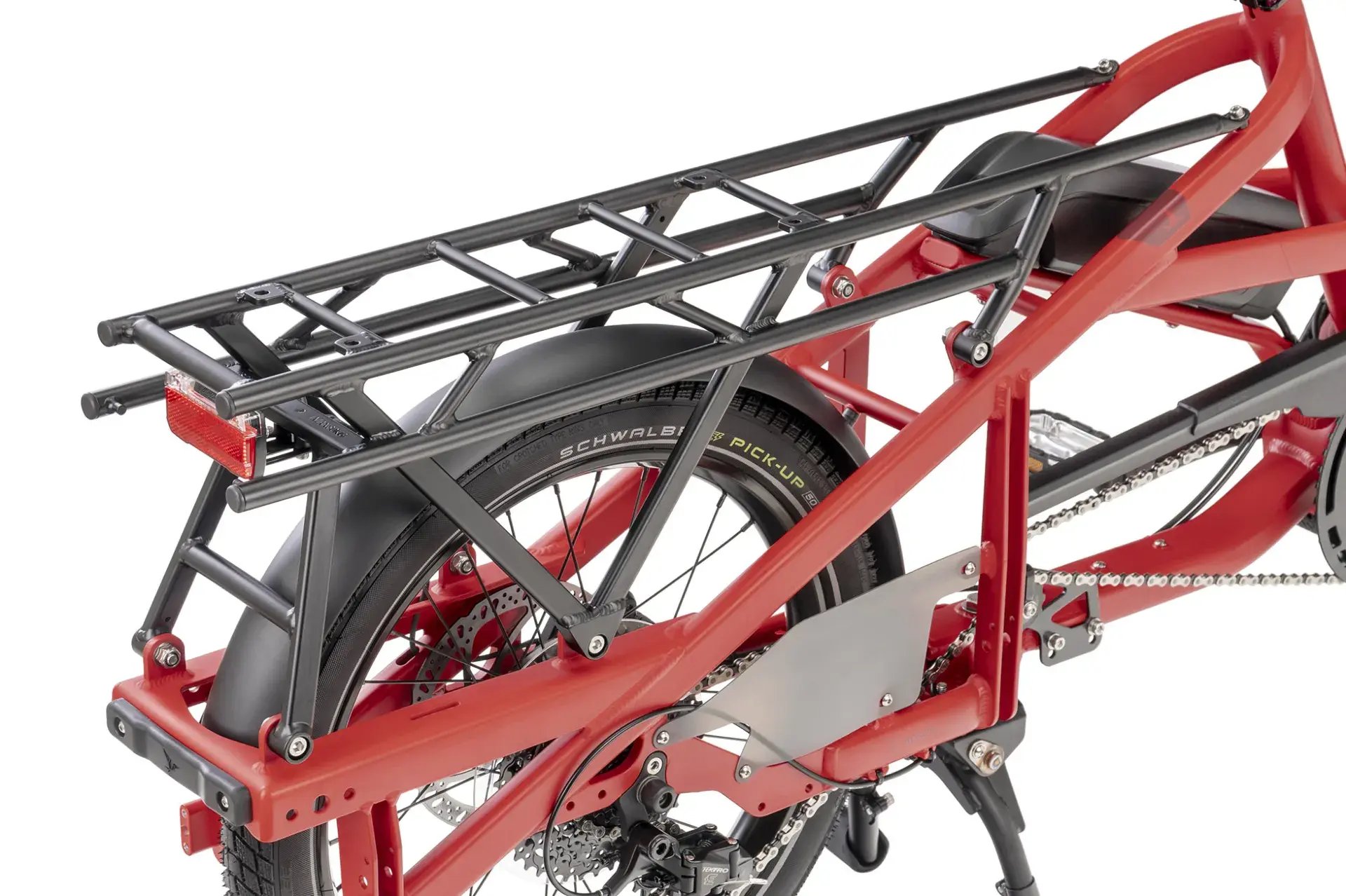

RACK(S): Atlas L, 90 kg (198 lb) capacity

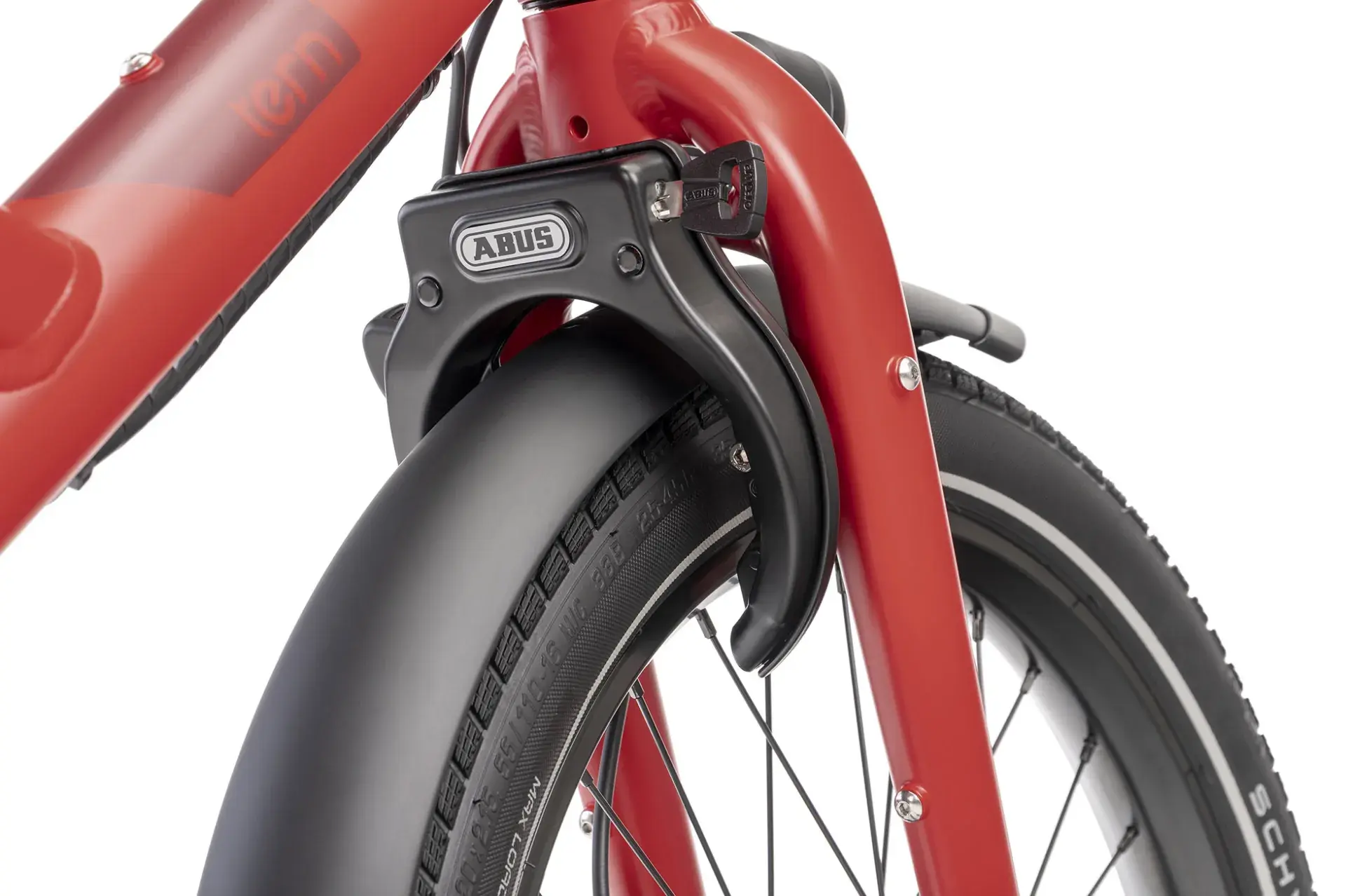

FRAME LOCK: ABUS, keyed-alike with Bosch battery

Disclaimer:
We are doing our best to provide accurate and up to date descriptions, specifications and images of our products, but we cannot guarantee that they are absolutely correct. Please contact us if in doubt, or to confirm a particular feature or a spec which is important to you.
