Tern Quick Haul D8 - 400Wh - Tabasco

Tern Quick Haul D8

Simply Capable

What Makes it a D8?

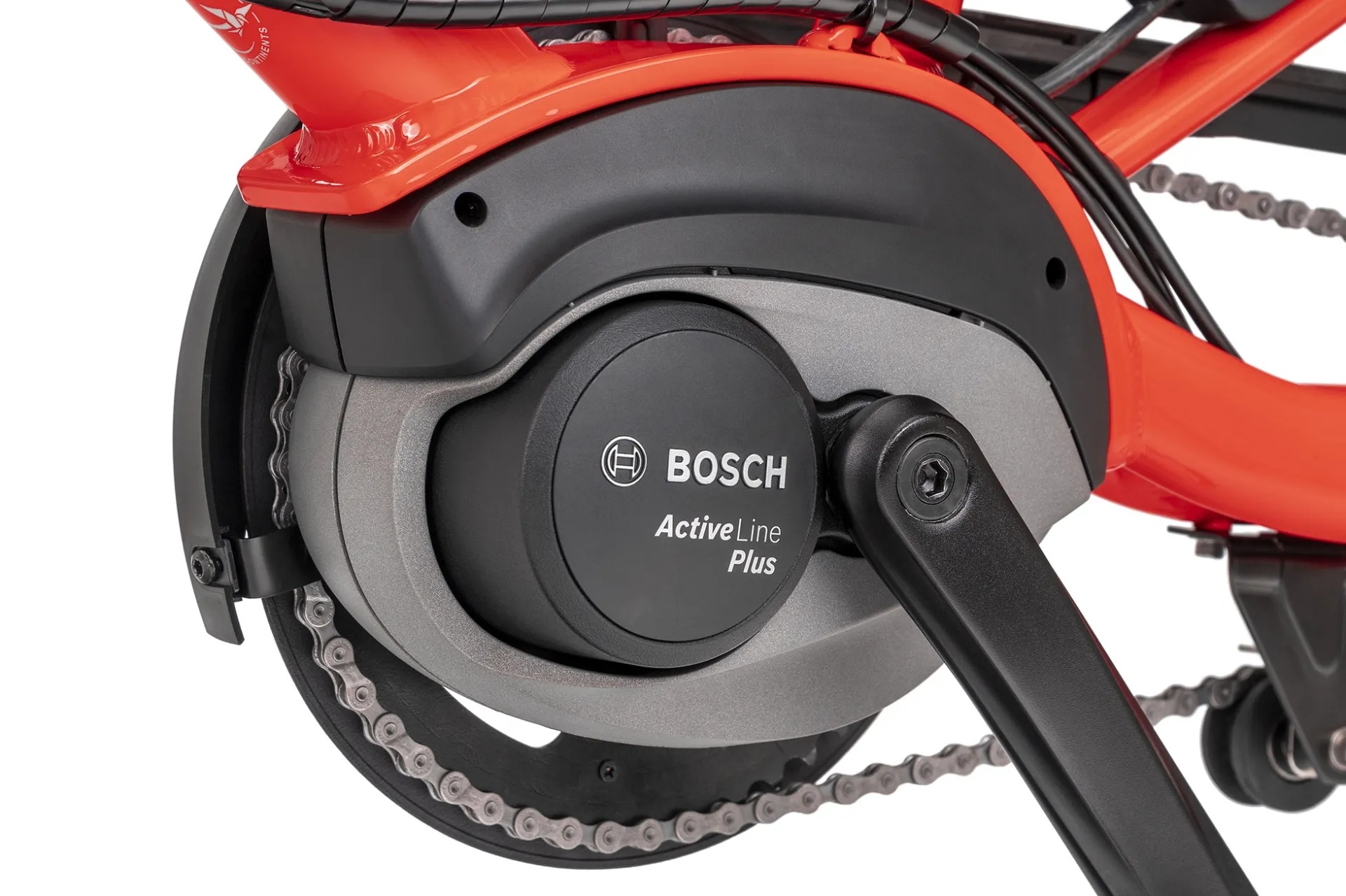

• Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
• 1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

• Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
• Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost
• Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
• Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
• Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
• Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Specifications

General Info
cOLOR
wHEEL sIZE	20"
sPEEDS	1 x 8
wEIGHT	22.8 kg (50.3 lb)
Frame Sizes	One Size
Gear Inches	31" - 95" (2.45 - 7.57 m)
Distance: Seatpost to Handlebar	60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal	68 - 110 cm (26.8 - 43.3 in)
Suggested Rider Height	160 - 195 cm (63 - 76.8 in)
Max Gross Vehicle Weight	150 kg (330.7 lb)
Max Rider Weight	120 kg. (264 lbs.)
Frame
Frame	Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork	Cargo, steel, EFBE approved: 150 kg
Cockpit
Stem	Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Headset	TH, cartridge bearings
Handlebar	Low riser, 31.8, 6061-AL
Grips	Velo ergonomic, lock-on
Saddle	Velo Comfort
Seatpost	31.6 mm, 6061-AL, micro-adjust clamp
Seat clamp	Tern Collar
Brakes
Front Brake	Shimano, hydraulic disc
Rear Brake	Shimano, hydraulic disc
Brake Levers	Shimano, hydraulic disc
Brake Cable & Housing	Shimano, hydraulic disc
Wheels
Front Hub	Shimano disc
Rear Hub	Shimano disc
Spokes and Nipples	Stainless steel
Rims	Kinetix Comp, for disc
Tires	Schwalbe Big Apple, 55-406, puncture protection, Reflex
Transmission
Shifter	Shimano Altus, 1 x 8 spd, trigger
Rear Derailleur	Shimano Altus Shadow
Crankset	Tern custom, forged 6061-AL crank arm
Cassette	Shimano 11-34T, 8 spd
Bottom Bracket	Motor integrated
Chain	KMC for eBike, 8 spd
Pedals	Urban with non-slip surface
Shifter Cable & Housing	SP
E-System
Motor	Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 km/h (20 mph)
Battery	Bosch PowerPack 400
Display	Bosch Purion, 4 mode selectable, walk assist
Range	54 -105 km (34-66 mi)
Charger	Bosch Standard Charger, 100-240V, 2A
Bells & Whistles
Bell	Aluminum
Chainguard	SKS Chainblade
Kickstand	Pletscher design, rear mount
Luggage Socket	Combo Mount
Front Light	Herrmans, 120 lumens
Rear Light	Herrmans
Fenders	Chromeplastic, stainless hardware
Rack(S)	Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
