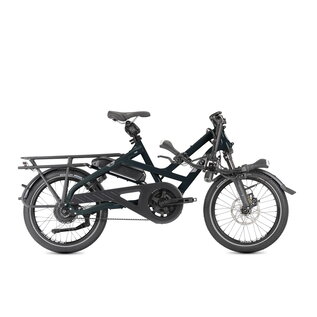

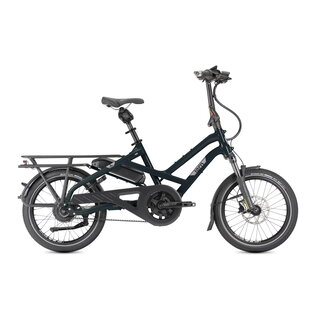

Tern HSD S00 Gen.2 - 545Wh - Dark Blue

Article number: 12-91-87
Quantity in stock: 1

Tern HSD S00 Gen 2


What makes it an S00?

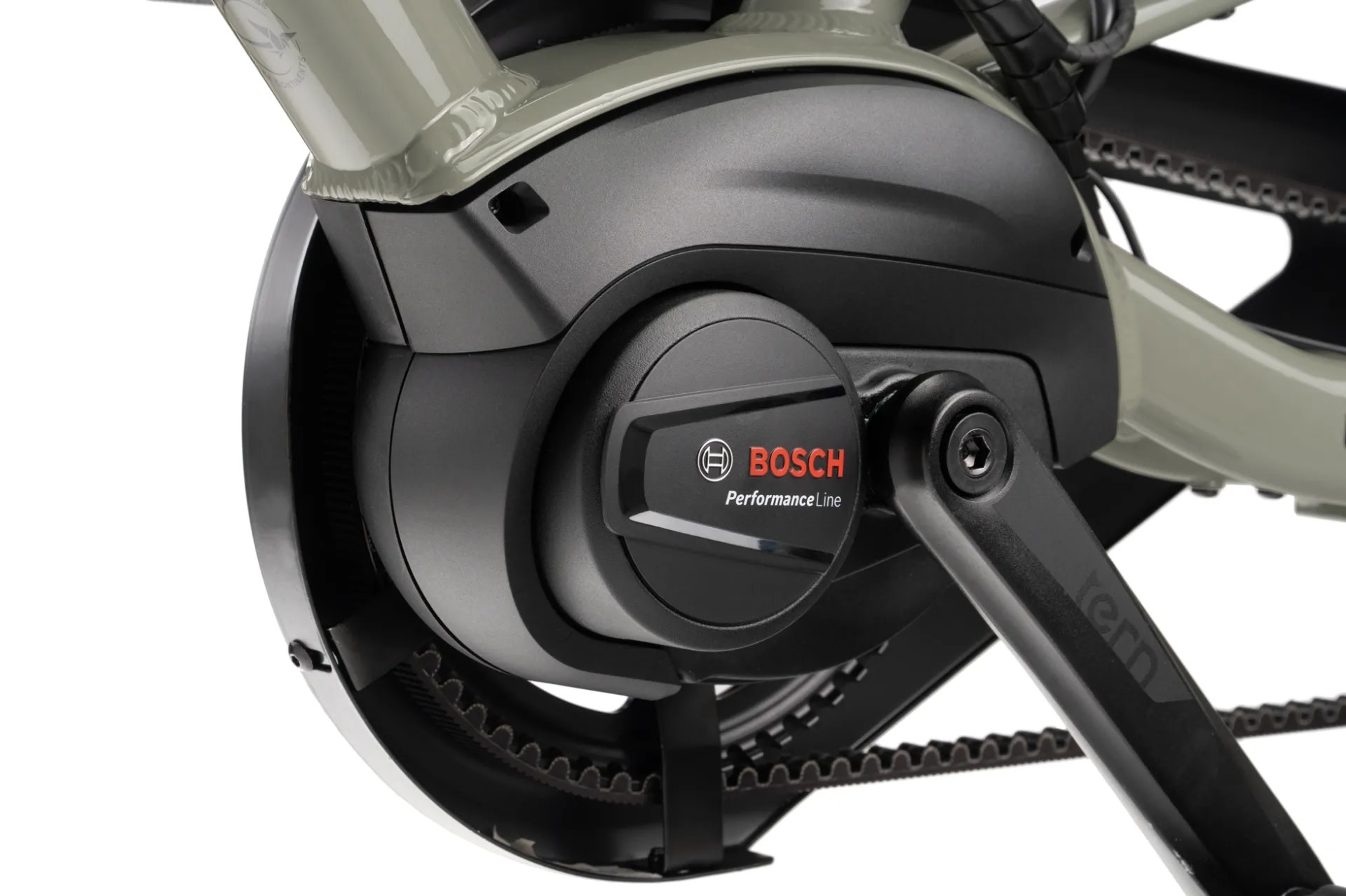

  • Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
  • Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
  • Kiox 300 color display that automatically activates eBike Lock when removed from the bike

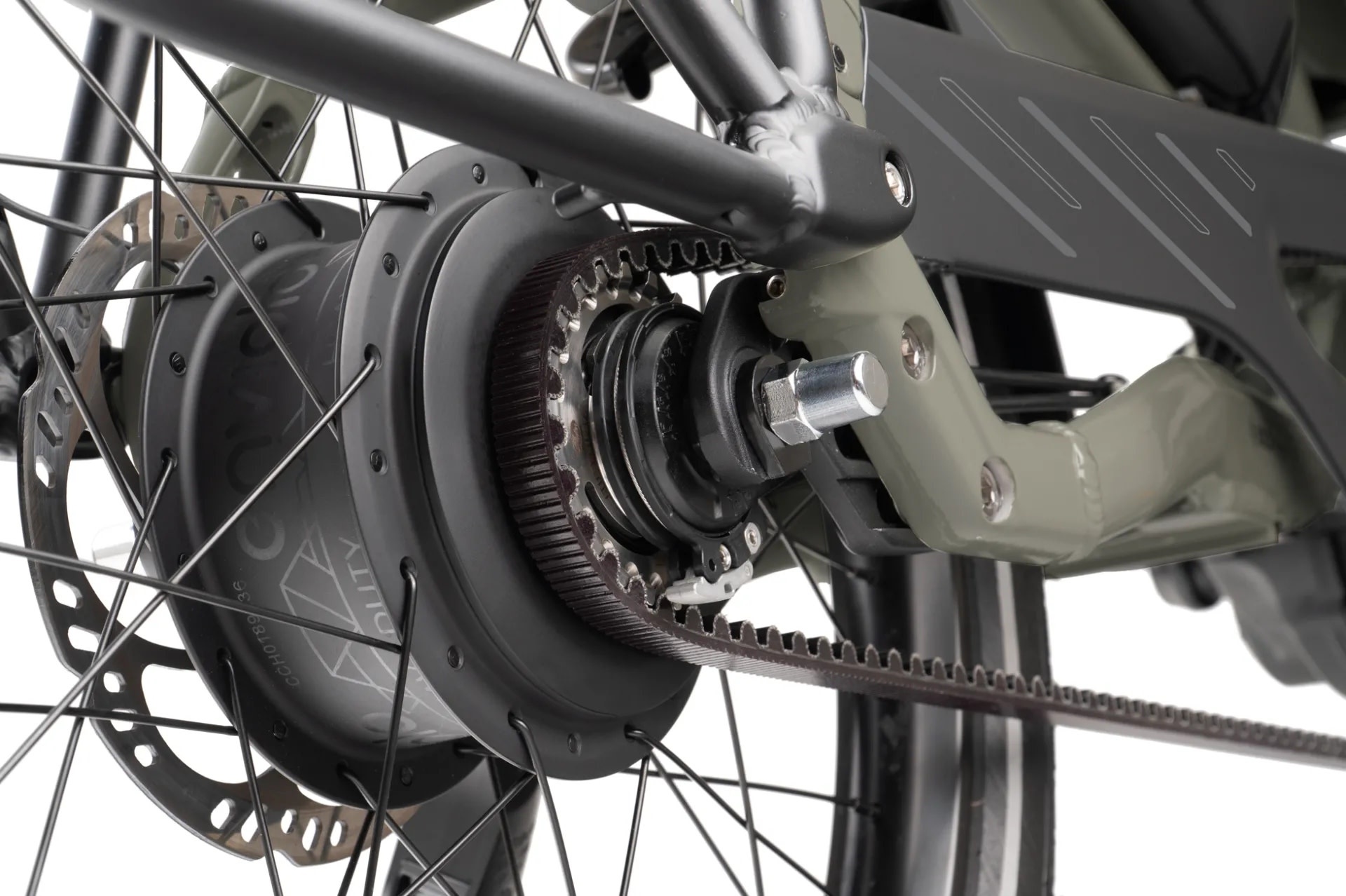

  • Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive

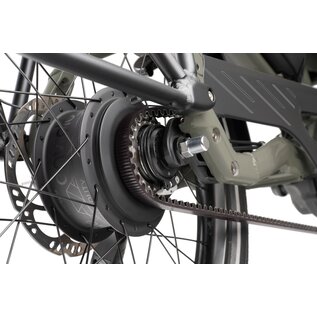

  • Enviolo Heavy Duty internally geared hub with 380% gear ratio range and twist shifter

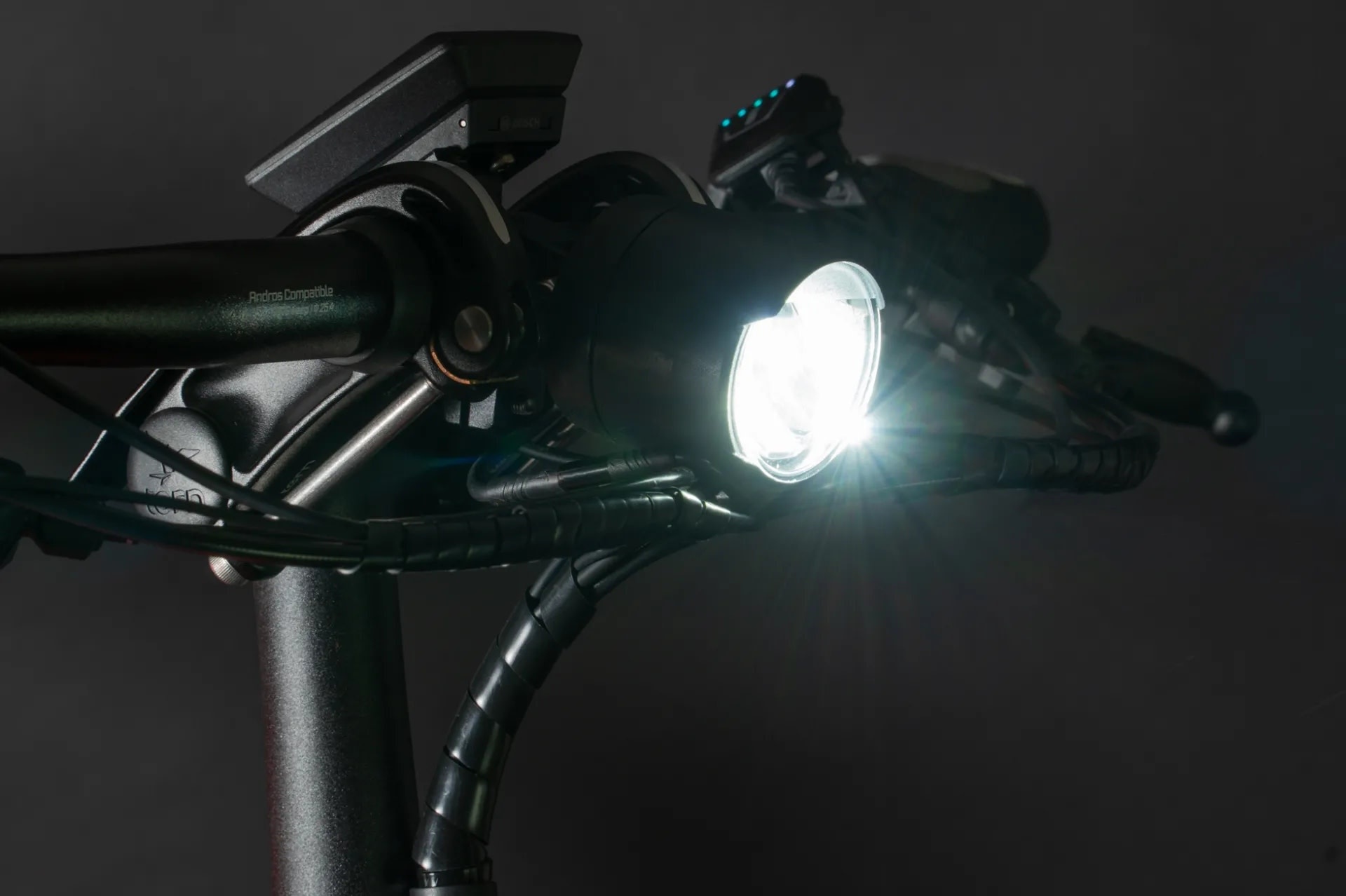

  • Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather

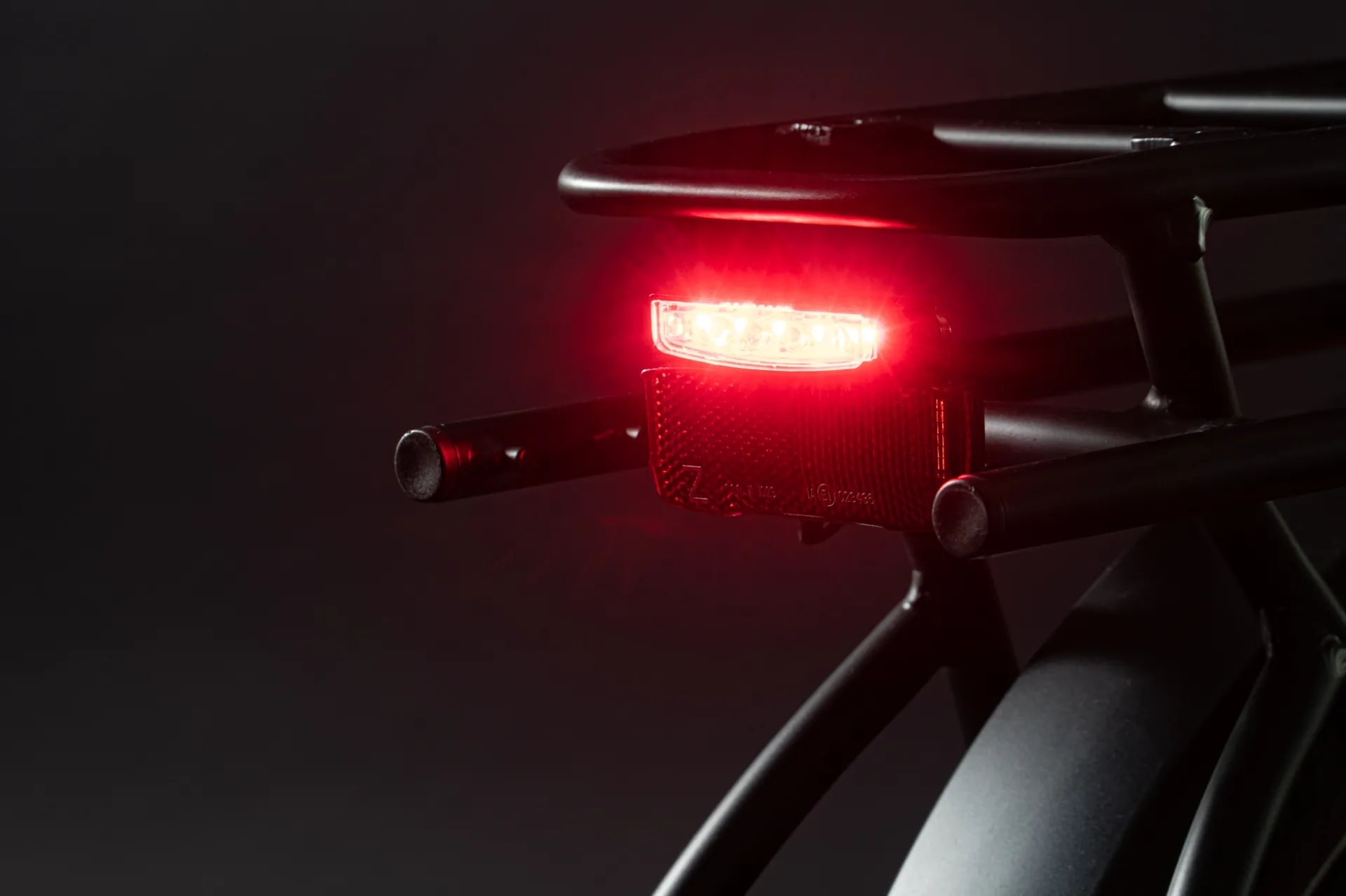

  • Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights

  • Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
  • Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight


General Info

COLOR Dark Blue Dark Blue
wHEEL sIZE 20"
wEIGHT 29.4 kg (64.8 lb)
Folding Size 165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
Folding Time 5 sec
Frame Sizes One Size
Gear Inches 28" - 106" (2.23 - 8.47 m)
Distance: Seatpost to Handlebar 52 - 62.5 cm (20.5 - 24.6 in)
Distance: Saddle to Pedal 76 - 110 cm (29.9 - 43.3 in)
Suggested Rider Height 150 - 195 cm (4'11" - 6'5")
Max Gross Vehicle Weight 180 kg (396.8 lb)
Max Rider Weight 120 kg. (264 lbs.)


Frame Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg


Handlepost Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem Tern Andros (G2), adjustable, forged construction, patented technology
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar Tern Sweep, 6061-AL, Tern Andros adapted
Grips Ergon
Saddle Tern Upright by Velo

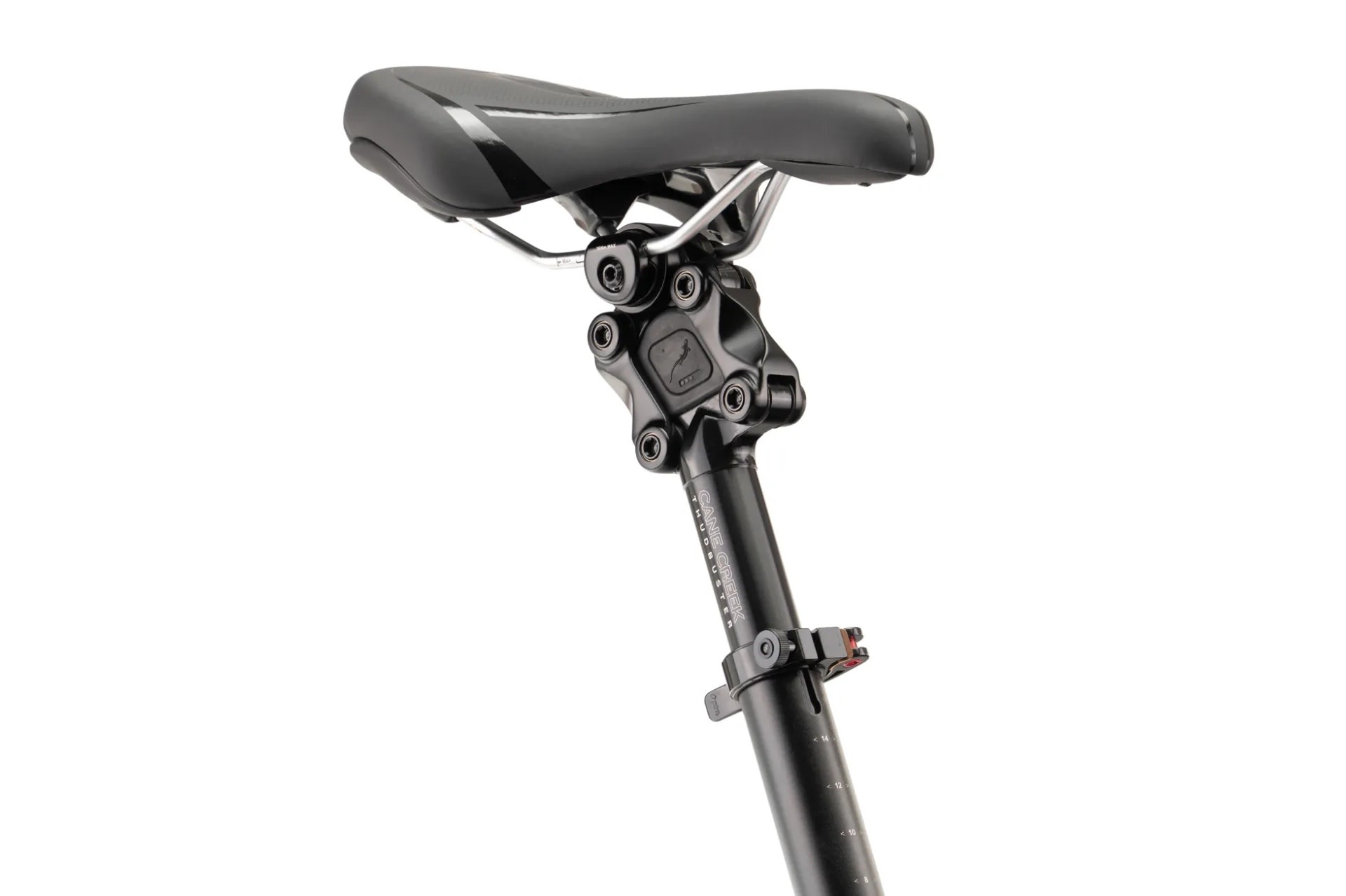

Seatpost Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Seat clamp Tern Collar, 6061-AL, 2pc


Front Brake Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake Magura MT5, 4-piston hydraulic disc, 160 mm rotor, Sport pads
Brake Levers Magura MT4 e-stop, hydraulic, with brake light sensor
Brake Cable & Housing Magura, hydraulic


Front Wheel Tern Atlas H, cargo wheel
Rear Wheel Tern Atlas H, cargo wheel
Front Hub Novatec, Thru-axle, sealed bearings
Rear Hub Enviolo Heavy Duty, 380% continuously variable range
Spokes and Nipples Stainless steel, double-butted
Rims Tern Atlas H, wide 35 mm
Tires Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification


Shifter Enviolo, Twist
Crankset Tern HSD custom, Gates CDX CNC machined beltring
Cassette Gates CDX, precision CNC machined cog
Bottom Bracket Motor integrated
Chain Gates Carbon Drive CDX belt
Pedals Urban with non-slip surface, sealed bearings


Motor Bosch Performance, 340% Assist, 75 Nm Torque, max speed 32 km/h (20 mph)
Battery Bosch PowerPack 545

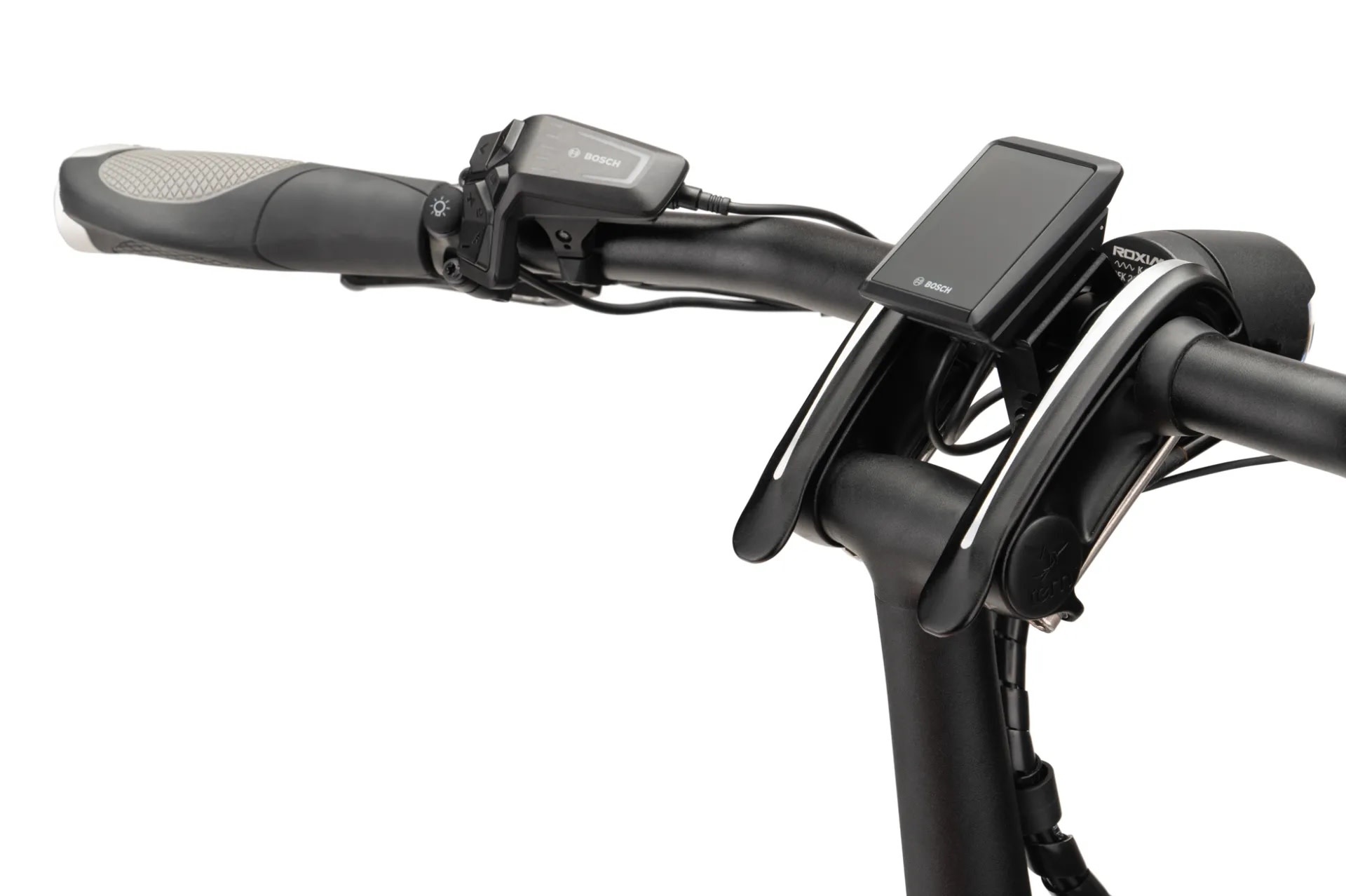

Display Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Range 545 Wh: 51-121 km (32-76 mi)
Lock & Alarm Bosch Connect Module, GPS/GSM connectivity; 1 year free cell connectivity, Anti-theft alarm
Charger Bosch 100-240V, 4A Charger

Bells & Whistles

Bell Pitch Plus, brass
Chainguard Tern Custom, full chain cover
Kickstand Ursus, rear mount
Luggage Socket Combo Mount
Front Light Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light RearStop Brake Light, Always on
Fenders SKS, stainless hardware
Rack(S) Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
Accessory ABUS Wheel Lock, keyed-alike with Bosch battery

We are doing our best to provide accurate and up to date descriptions, specifications and images of our products, but we cannot guarantee that they are absolutely correct. Please contact us if in doubt, or to confirm a particular feature or a spec which is important to you.
0 stars based on 0 reviews
