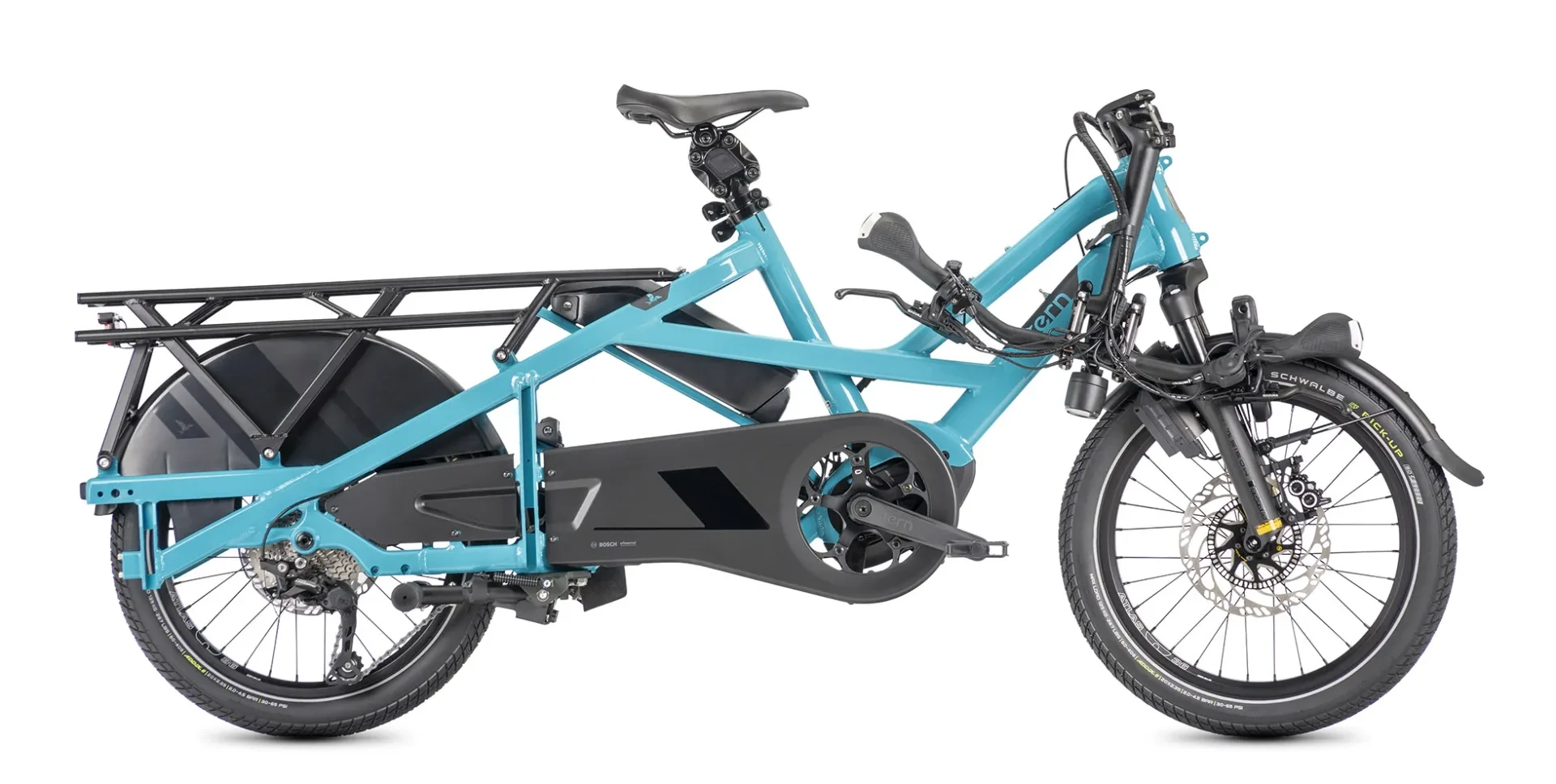

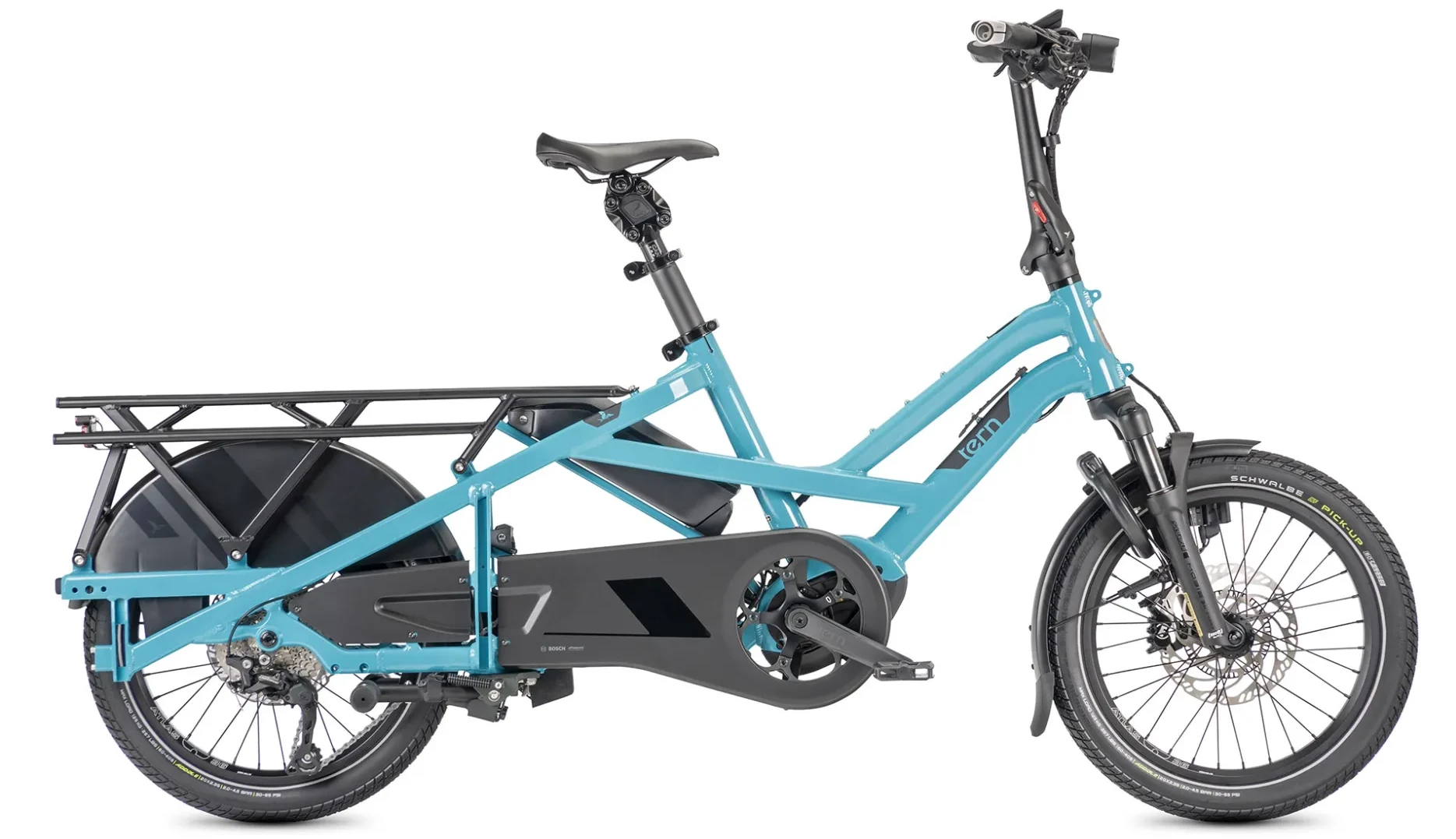

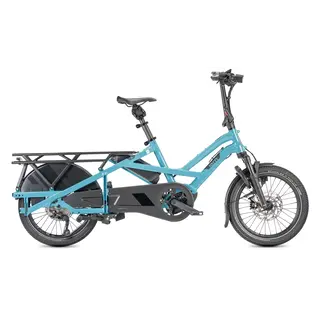

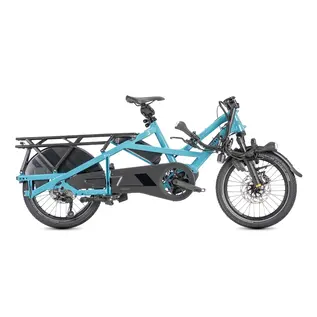

Tern GSD S10 Gen 3 - 545Wh - Beetle Blue

Tern GSD S10 Gen. 3

Still Getting Sh!t Done

What makes it a S10?

• Bosch® Smart System with Kiox 300 color display enhances your eBike experience with smart features for theft protection, ride customization, navigation, and more!
• Bosch Anti-Lock Braking System enables safer, more efficient braking
• Dual-battery compatible, ready to power through heavy use and long distances of up to 196 km (122 mi)
• Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting

GSD highlits

• Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
• Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
• Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
• Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
• Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
• UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability

Specifications

General Info
cOLOR
wHEEL sIZE	20"
sPEEDS	1 x 10
wEIGHT	37.32 kg (82.3 lb)
Folding Size	185 × 46 × 88 cm (72.8 × 18.1 × 34.6 in)
Folding Time	5 sec
Frame Sizes	One Size
Gear Inches	26" - 98" (2.04 - 7.80 m)
Distance: Seatpost to Handlebar	49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal	69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height	153 - 200 cm (5'1" - 6'7")
Max Gross Vehicle Weight	210 kg (463 lb)
Max Rider Weight	130 kg. (286.6 lbs.)
Frame
Frame	Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg

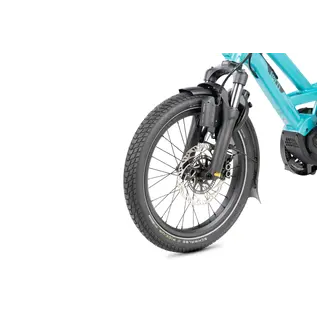

Fork	Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg
Cockpit

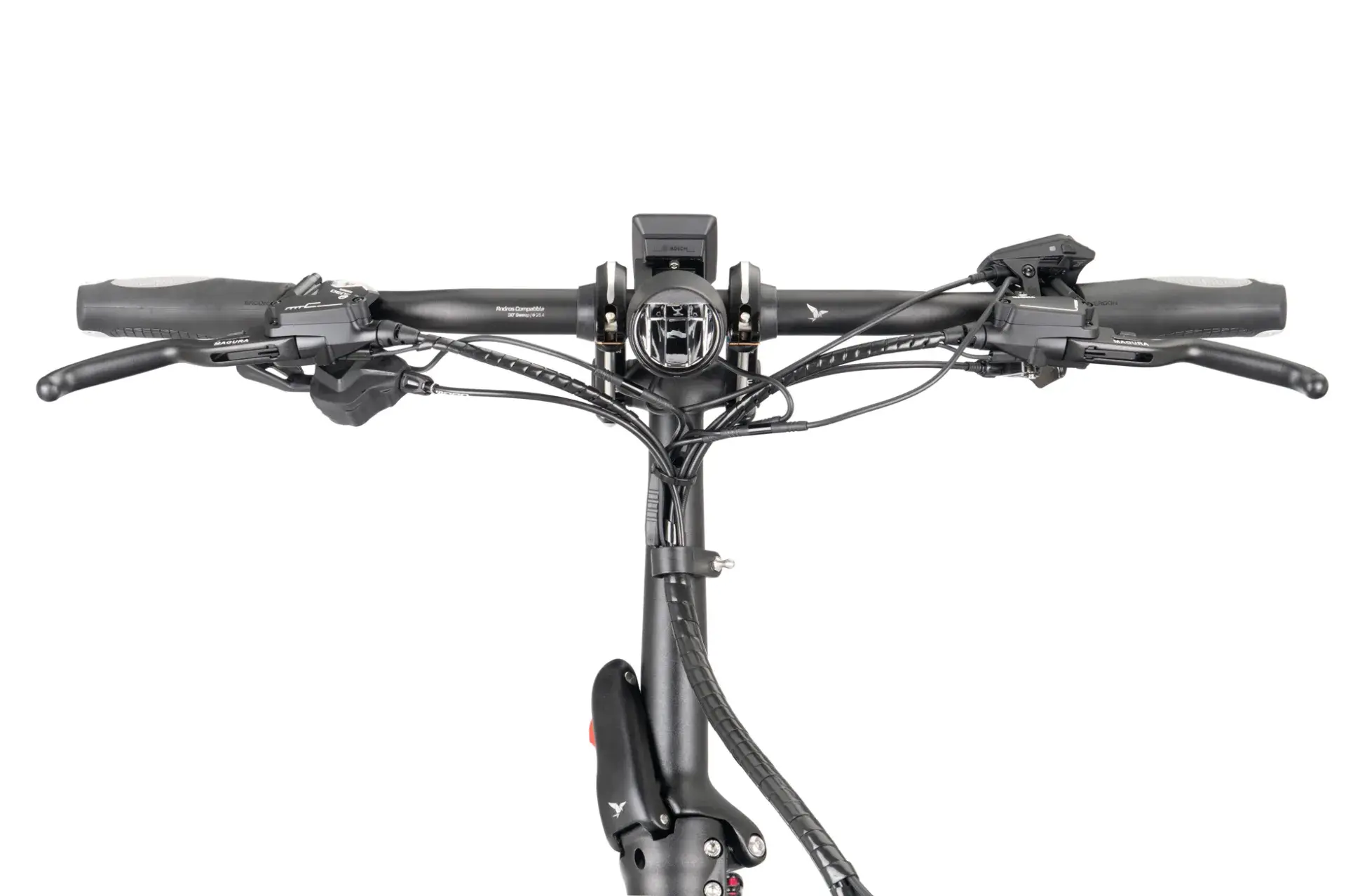

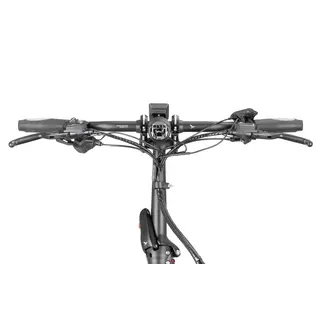

Handlepost	Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem	Tern Andros (G2), adjustable, forged construction, patented technology
Headset	Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar	Tern Sweep, 6061-AL, Tern Andros adapted
Grips	Ergon
Saddle	Tern GSD by Velo

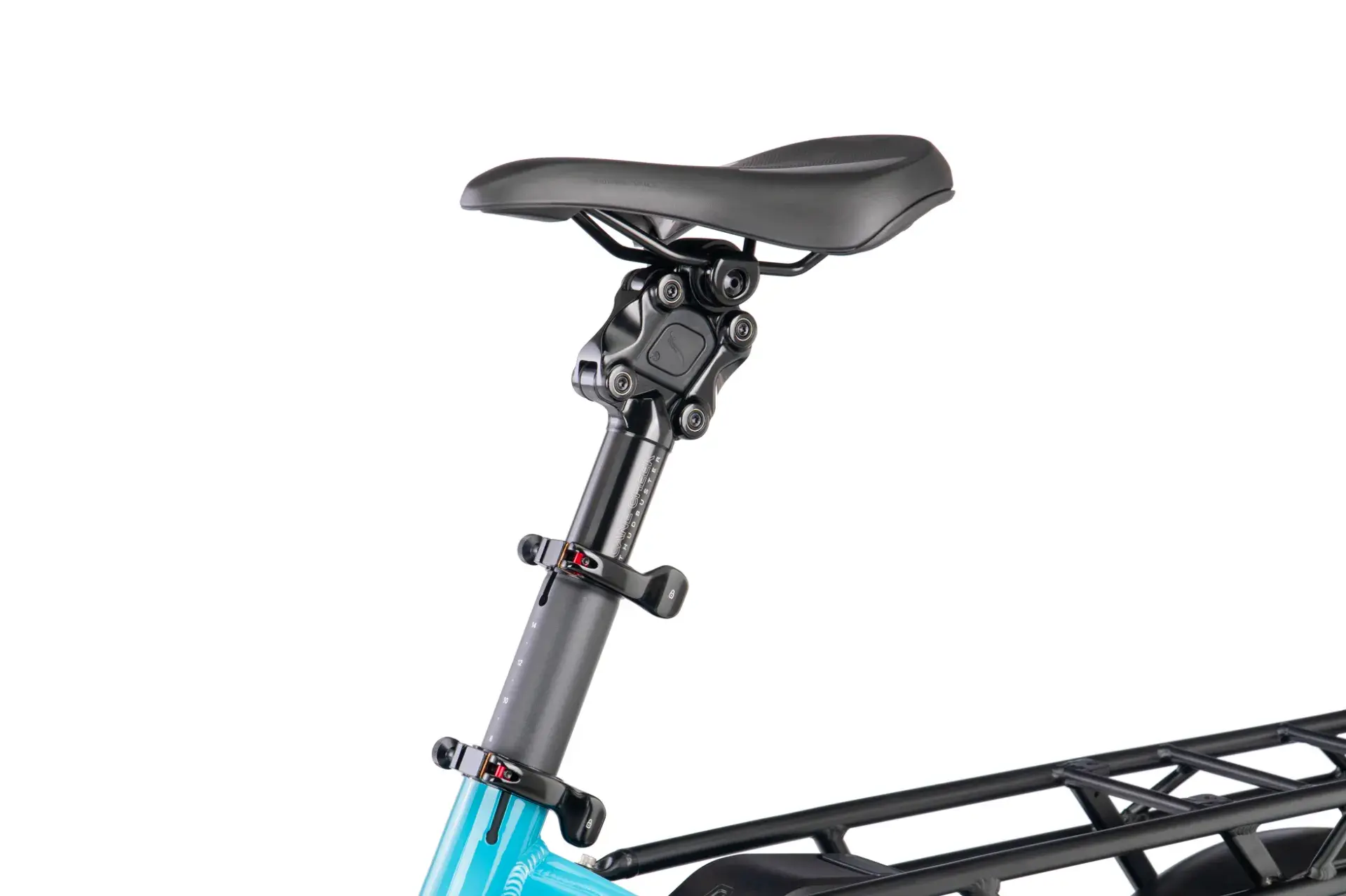

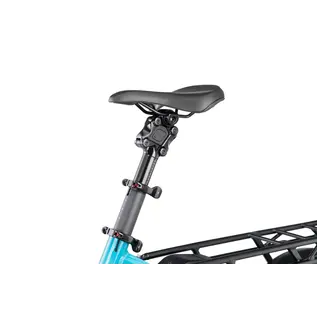

Seatpost	Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
Seat clamp	Tern Collar
Brakes

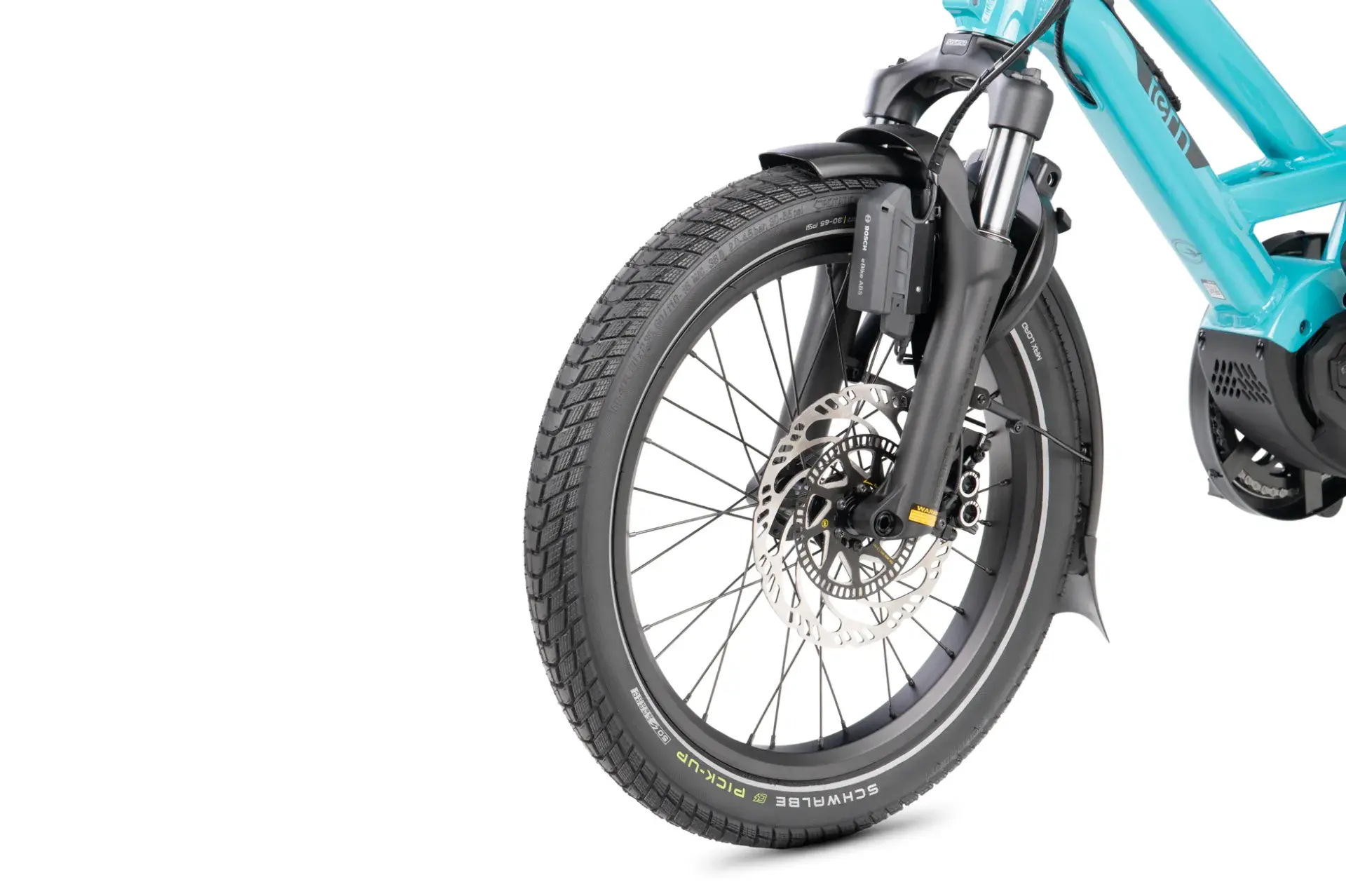

Front Brake	Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake	Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers	Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing	Magura ABS, hydraulic
Wheels
Front Wheel	Tern Atlas, heavy duty cargo wheel
Rear Wheel	Tern Atlas, heavy duty cargo wheel
Front Hub	Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub	Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
Spokes and Nipples	Stainless steel
Rims	Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires	Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
Transmission
Shifter	Shimano Deore, 1 x 10 spd
Rear Derailleur	Shimano Deore Shadow+
Crankset	Tern GSD, forged 6061-AL DH crankarm
Cassette	Shimano 11-42T, 10 spd
Bottom Bracket	Motor integrated
Chain	KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals	Urban with non-slip surface, sealed bearings
Shifter Cable & Housing	Jagwire LEX-SL, slick treatment, alloy ferrules
E-System

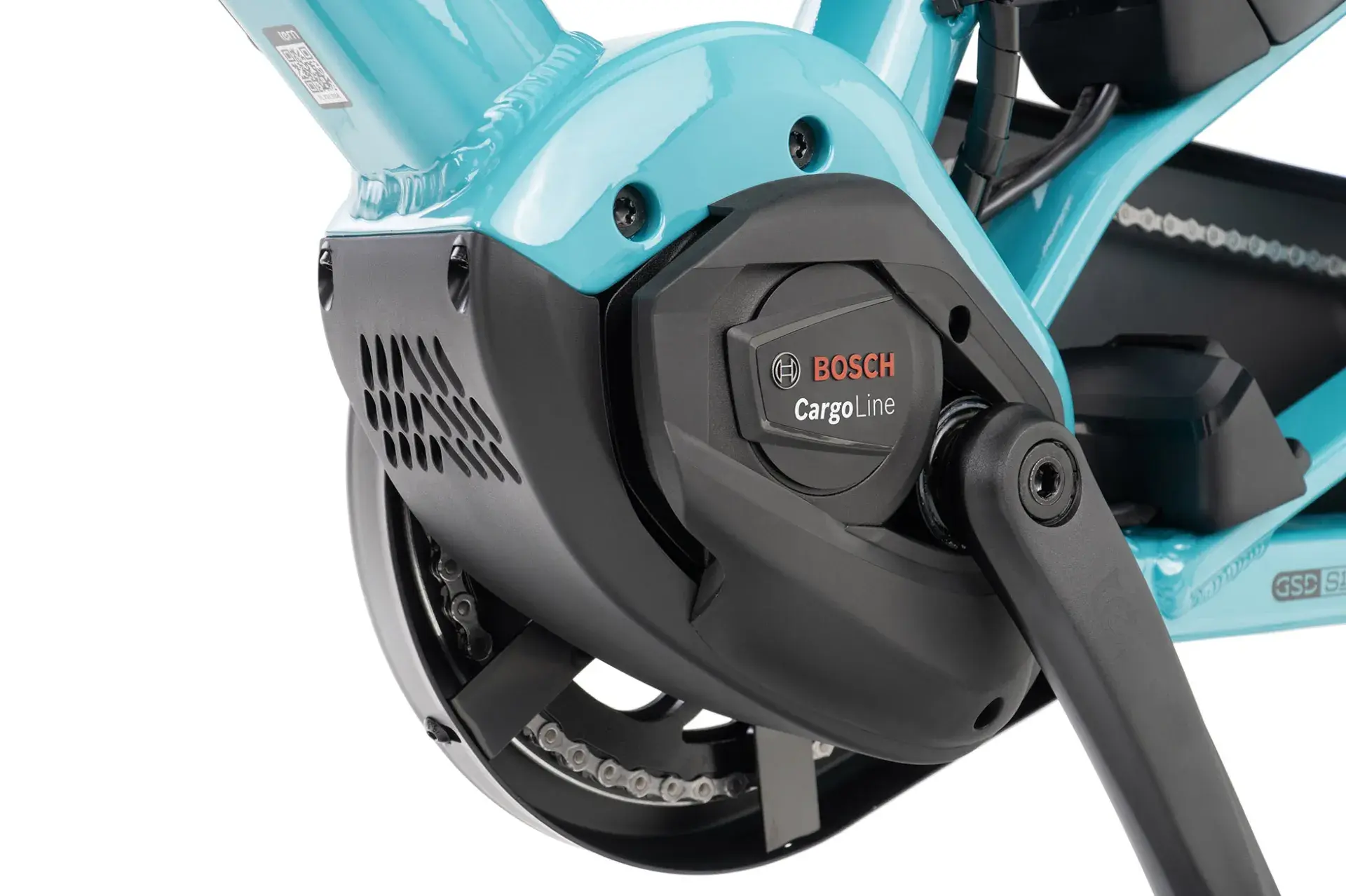

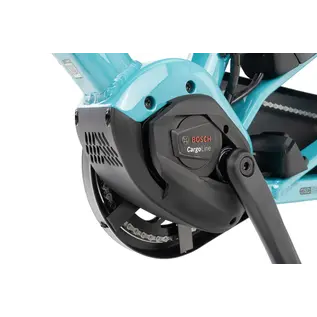

Motor	Bosch Cargo Line, 400% Assist, 85 Nm Torque; max speed 32 km/h (20 mph)
Battery	Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity

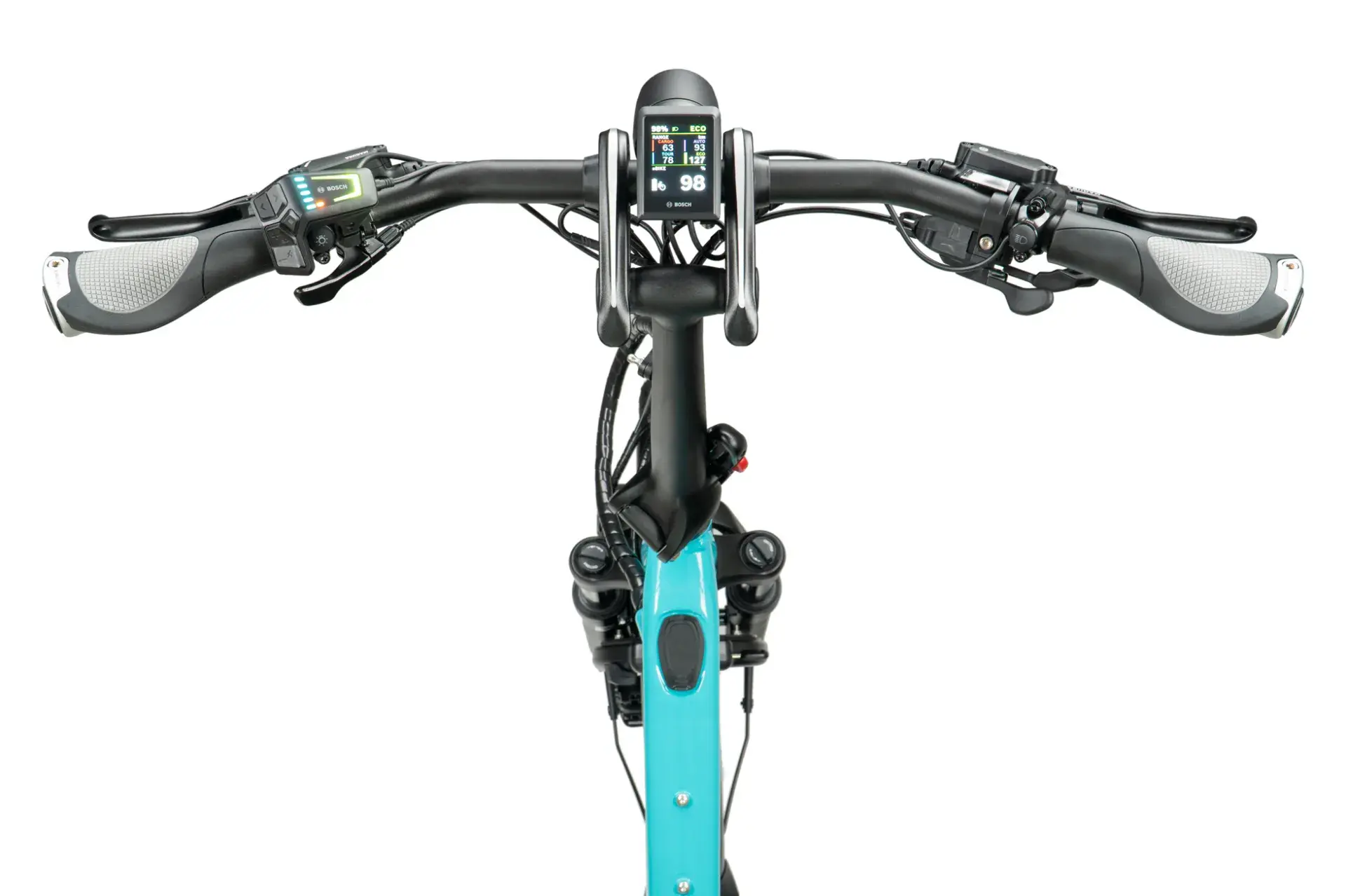

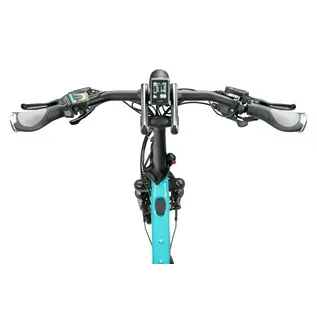

Display	Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock
Range	545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Charger	Bosch 100-240V, 4A Charger
Connect Module	Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System	Bosch Anti-Lock Braking System, Gen 2
Bells & Whistles
Bell	Pitch Plus, brass
Chainguard	Tern GSD, full chain cover
Kickstand	Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket	Combo Mount
Front Light	Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light	RearStop Brake Light, Always on
Fenders	F: Aluminum R: GSD wheel guard

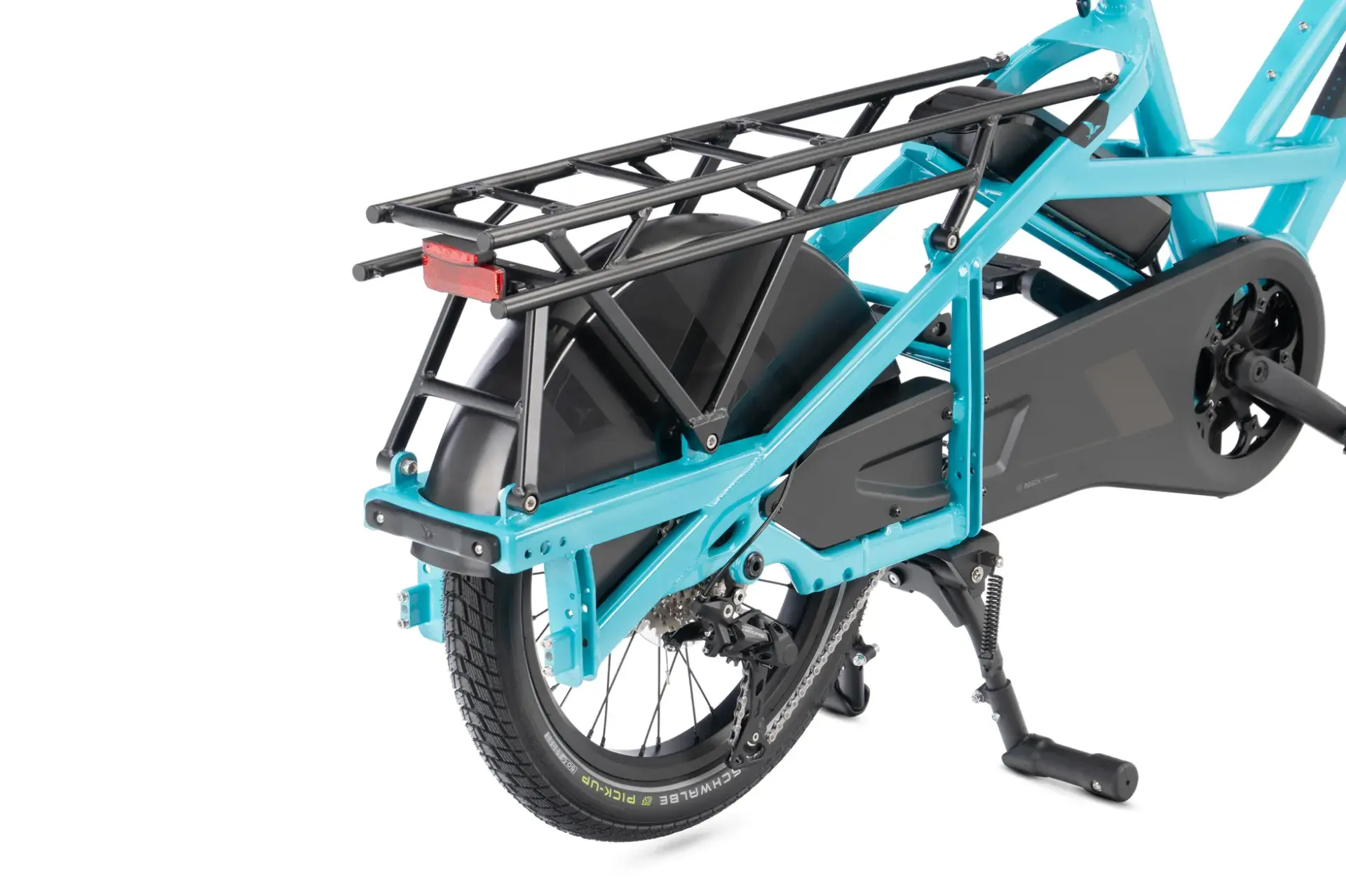

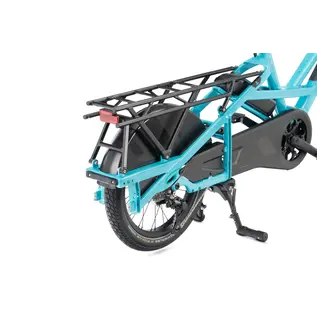

Rack(S)	Atlas G, 100 kg (220 lb) capacity

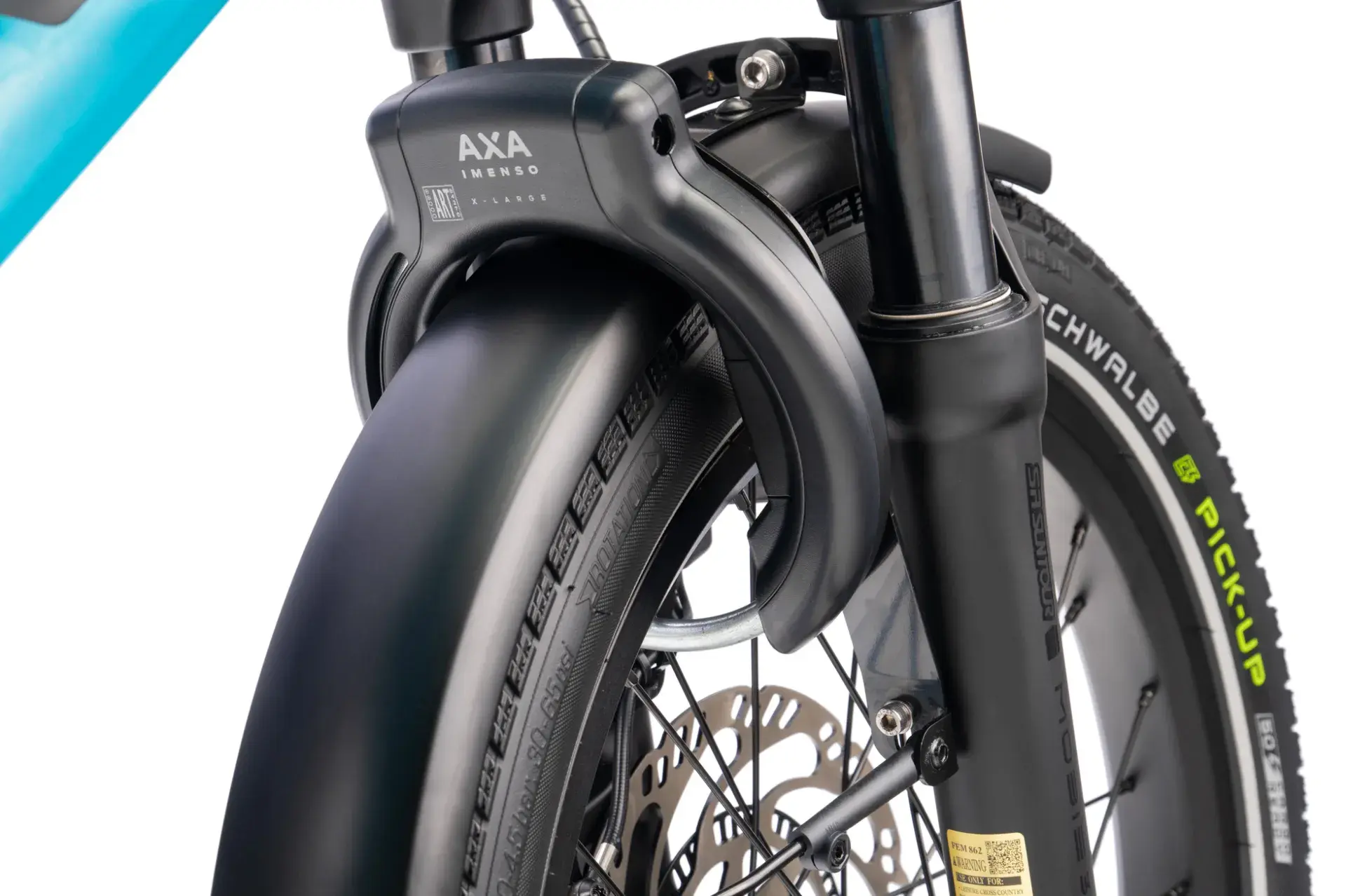

Accessory	ABUS or AXA Wheel Lock, keyed-alike with Bosch battery

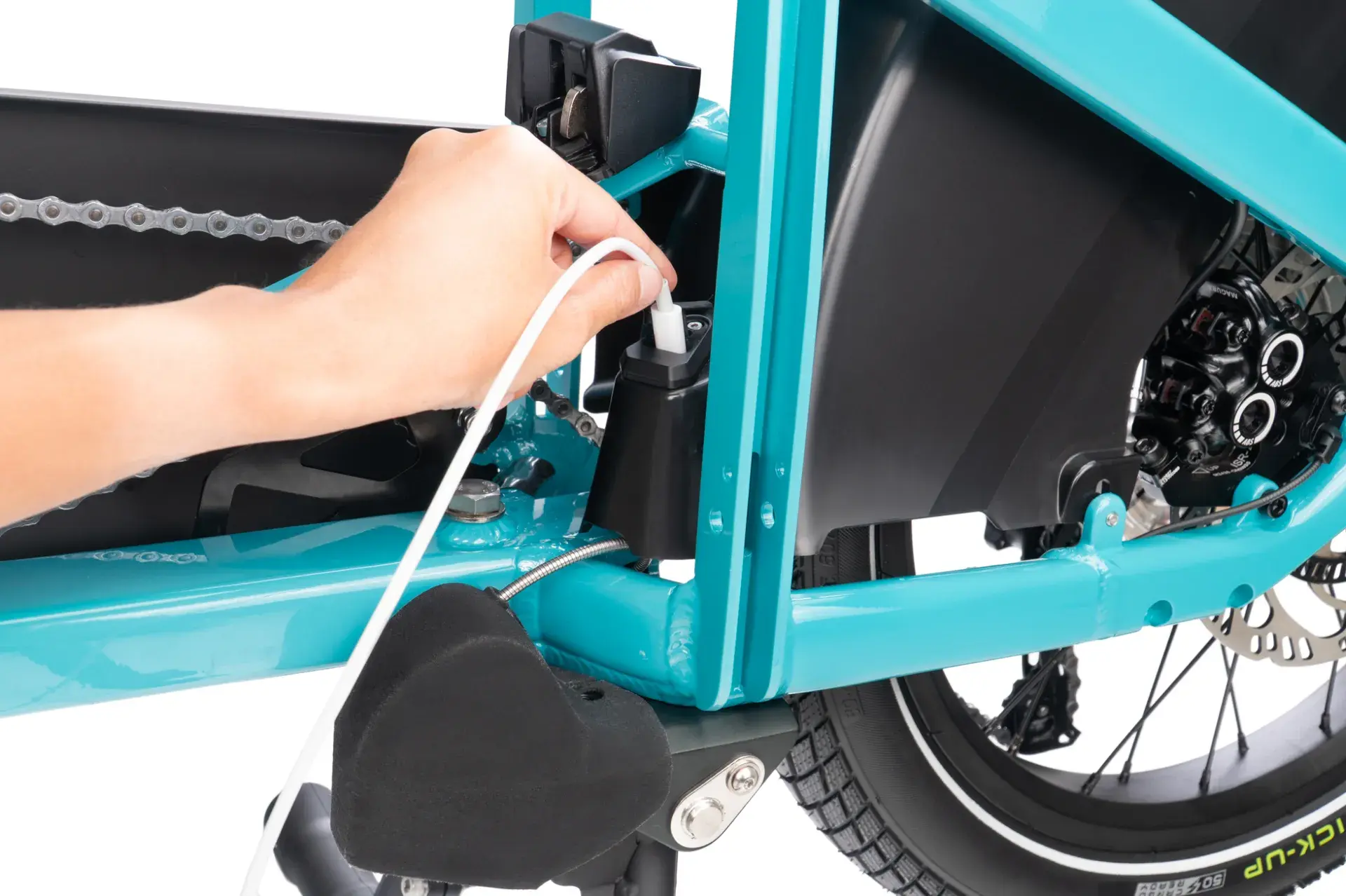

On-board Charging	USB-C, 5V/2.4A, 12W max

Meet The All-New GSD
Still Getting Sh!t Done The new GSD takes the family electric cargo bike to a whole ‘nother level. Smarter than ever and packing even more muscle with a re-engineered frame that handles a max gross vehicle weight of 210 kg (463 lb), it’ll help you carry 2 loved ones and weekly grocery hauls with newfound ease—but it’s similar in length to a regular bike to remain surprisingly manageable. The Greener, Leaner Family Minivan A more efficient alternative to the family minivan that’ll let you breeze past traffic jams and ditch the gas pump, the GSD comfortably carries up to 2 kids—from toddlers to teens—making school runs and shuffling from one activity to the next stress-free. It’ll even take an adult passenger, so you can keep the fun times rolling when it’s just you and your +1.
Fits Your Needs Choose from our wide range of modular accessories for passengers, pets, and cargo to transform the GSD into your ideal vehicle for tackling big and small tasks. Whether it’s safely transporting kids in all sorts of weather, hauling gear to your next gig, or grabbing the obligatory pizza & 12 pack for game night, the GSD is made to fit your life and everything that comes with it.
Easy to Manage The GSD’s unique geometry makes for super stable riding, no matter what you’re hauling (or how wiggly your kids are). The low center of gravity lets even text-smer riders confidently manage heavy loads, and the step-thru frame makes getting on and off the bike a breeze. Plus, we’ve made it easier for the rider’s feet to reach the ground at stops.
Year-Round Riding Keeping your kids dry and cozy is the key to happier rides and fewer complaints. The new Clubhouse Fort transforms the GSD into an all-weather solution to carry young passengers all year round.

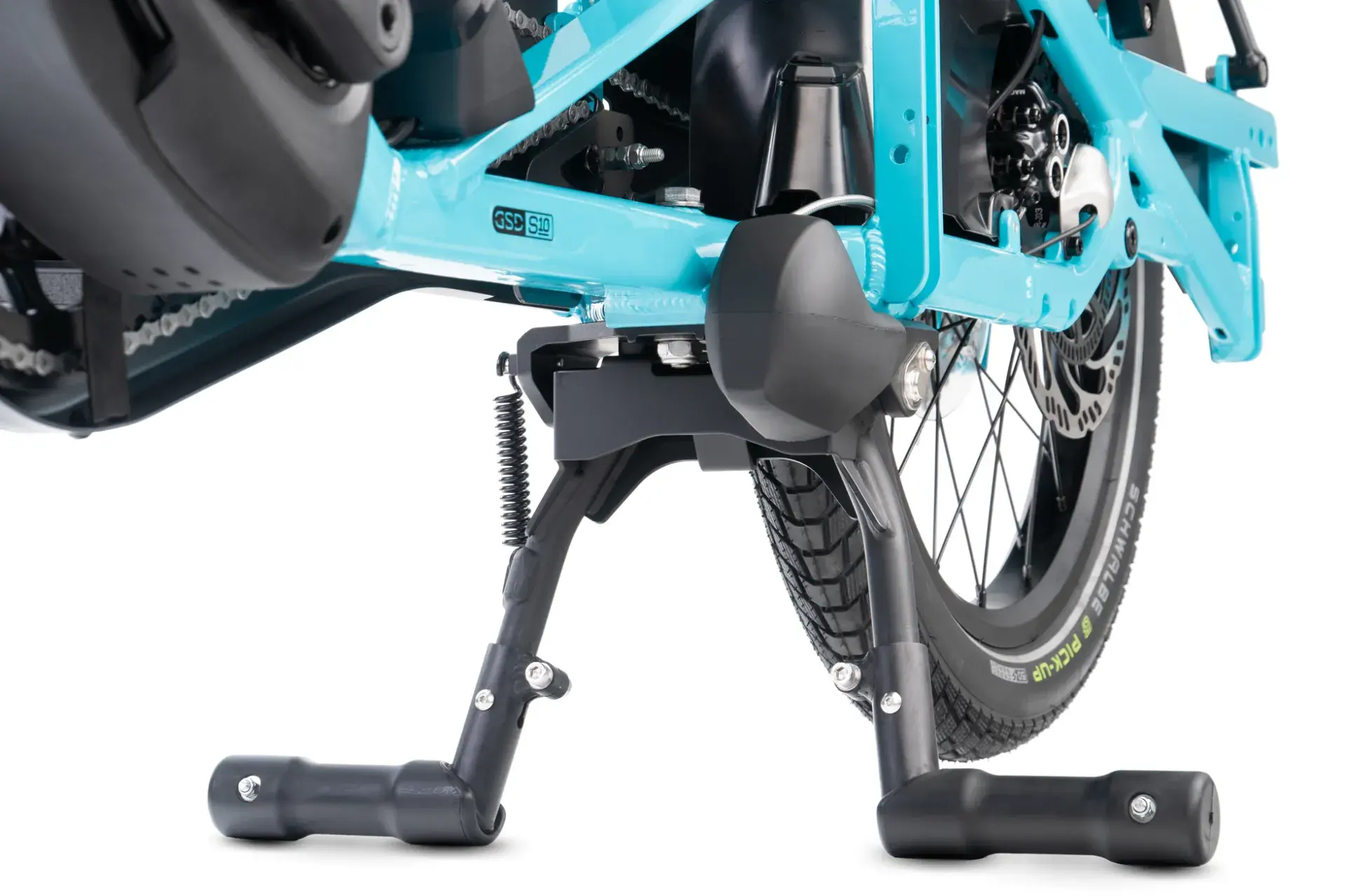

Rock-Solid Loading heavy cargo or kids on and off a bike can be tricky business, so we created the Atlas Lockstand. It’s an unbelievably strong and stable kickstand that automatically locks into place when engaged. When you’re ready to go, just press the Remote Unlock lever and roll forward.
The Bosch Advantage All GSD models now feature the best-in-class Bosch Cargo Line motor, which provides up to 85 Nm of torque for a smooth, natural-feeling ride, and 400% support to tackle serious hills. Top it off with Bosch’s unparalleled service and expertise, and you can rest assured that your GSD’s motor system will be safe and reliable for years to come.

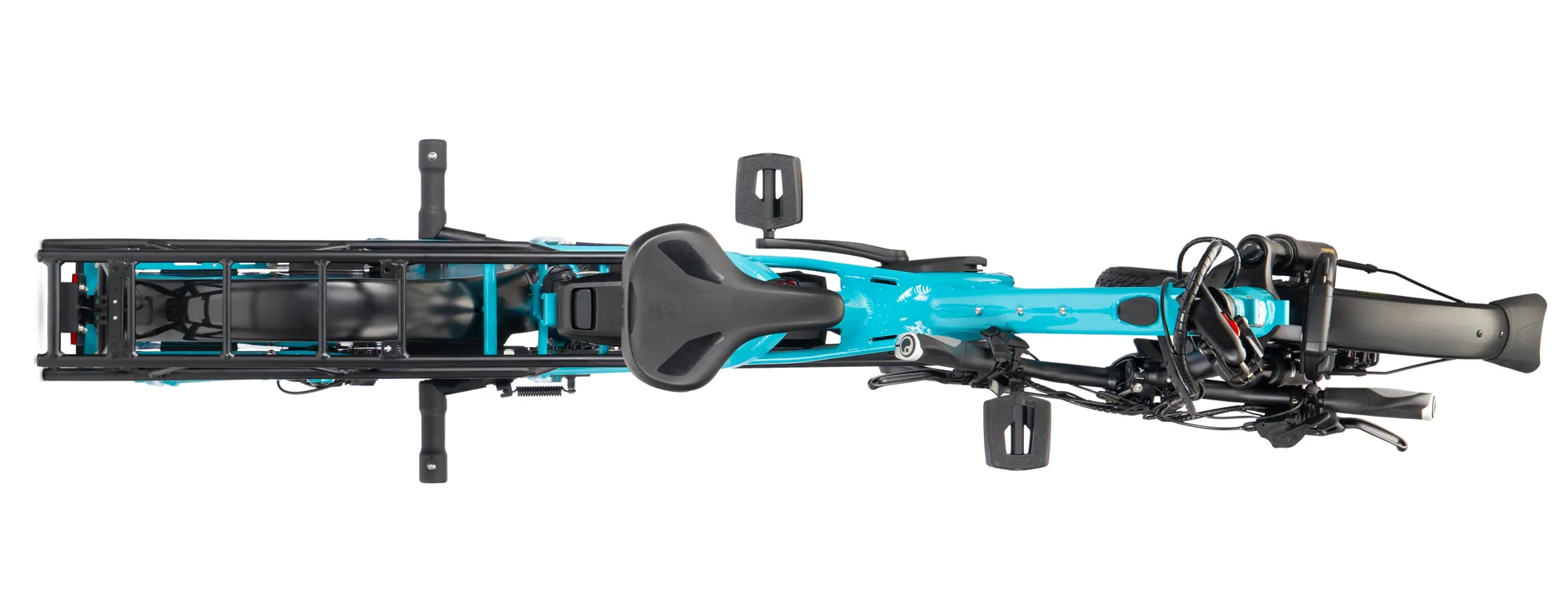

Easy to Transport We think the GSD will help you leave your car behind more often than not. Still, there are times when using a car and a GSD together is the best solution. The GSD packs down to one third of its volume in seconds. Stick a GSD (or two!) in the back of a minivan or small SUV, no heavy-duty rack required.
Small-Space Friendly A regular bike takes up a lot of floor space and can be hard to store in a text-sm living space (never mind getting it in and out of the elevator). We solved this problem by designing the GSD to park vertically, so it takes up about as much space as a potted plant—perfect for city apartments and elevators.
Tough and Tested EFBE Prüftechnik GmbH, one of Europe’s leading bicycle testing labs, has tested the GSD frame and fork to 200 kg using brutally demanding testing standards that meet and exceed the new German cargo bike standard.
