Tern Eclipse P20
THE PASSING LANE

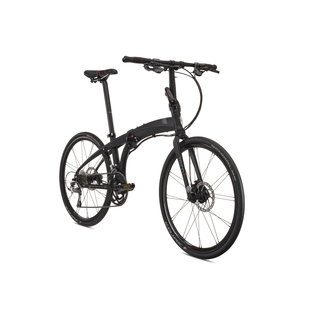

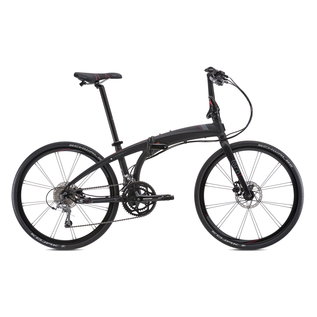

The Eclipse P20 is a high-performance road bike that folds down fast. With custom 26” Rolf Paired Spoke wheels, a 250 mm Physis™ 3D handlepost, and performance-tuned frame geometry, the Eclipse P20 is engineered for speed. It sports a stealth black finish and hydraulic disc brakes.

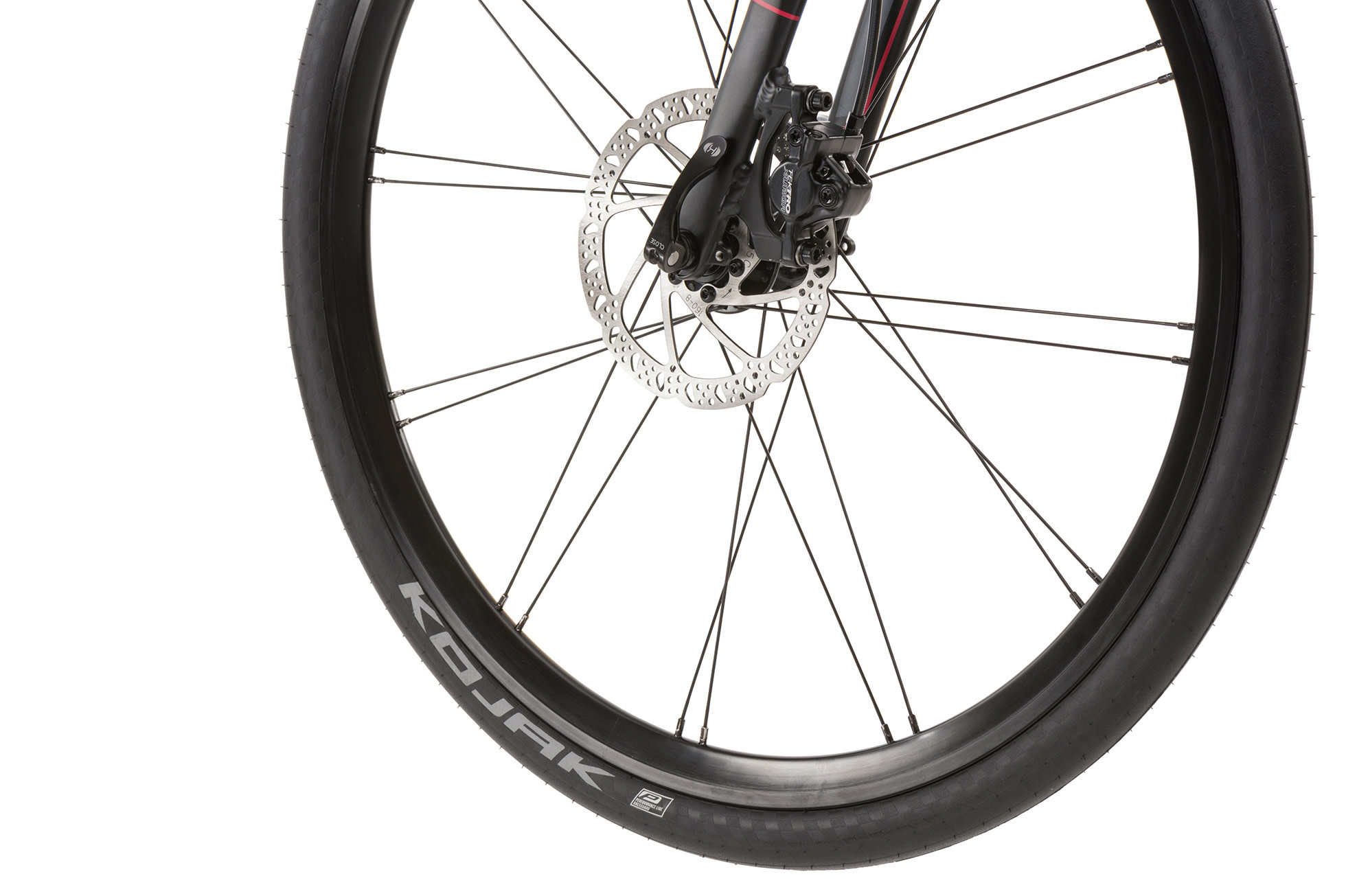

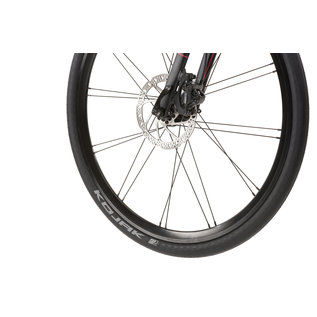

- Kinetix™ Pro Disc 26” wheels with patented Rolf Paired Spoke design

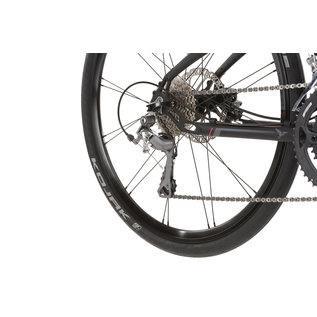

- Shimano Tiagra drivetrain for 20 speeds and precise, responsive shifting

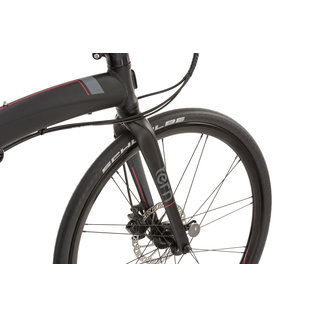

- Tektro Auriga hydraulic disc brakes for all-weather stopping power

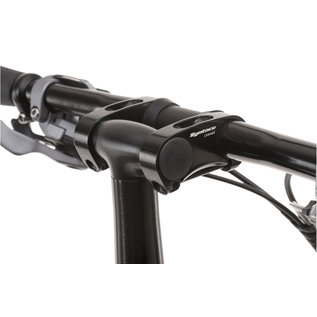

- Adjustable VRO handlebar stem to fine tune your ride position

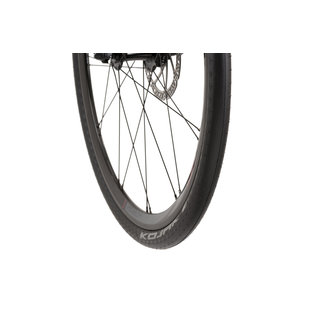

- High performance Kojak road tires with puncture protection

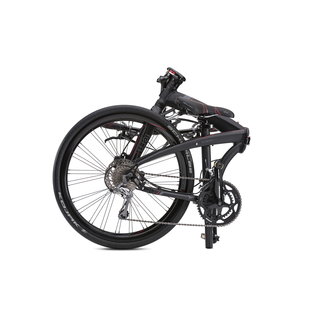

- Folds compactly in 10 seconds for storage and transport
SPECS
|
General Info
| Color: |
 |
| Wheel Size: |
26 inch wheels |
| Speeds: |
20 |
| Weight: |
12.22 kg (26.9 lb) |
| Folding Time: |
10 sec |
| Folding Size: |
38 x 90 x 81 cm (15" x 35.04" x 31.9") |
| Frame Sizes: |
One size |
| Gear Inches: |
26" - 112" (2.09 - 8.92 m) |
| Distance: Seatpost to Handlebar: |
Min: 630 mm (24.8") Max: 700 mm (27.6") |
| Distance: Saddle to Pedal: |
Min: 770 mm (29.7") Max: 1040 mm (40.6") |
| Suggested Rider Height: |
148 - 195 cm (4'10" - 6'5") |
| Max Rider Weight: |
105 kg (230 lb) |
Frame
| Frame: |
Tern Eclipse, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies |
| Fork: |
Tarsus, 6061-AL, hydroformed |
Cockpit
| Handlepost: |
Tern Physis 3D, 3D forged, 5 patented technologies |
| Stem: |
Syntace VRO Adjustable |
| Headset: |
Flux, cartridge bearings, Physis integrated |
| Handlebar: |
Kinetix Comp, 6061-Al, VRO butted |
| Grip/Bars Tape: |
BioLogic Arx w/ T-Tool |
| Saddle: |
BioLogic Phia, PrimeGel padding |
| Seatpost: |
SuperOversize, 6061-Al, forged clamp |
| Seatpost Clamp: |
Syntace OverLock |
Brakes
| Front Brake: |
Tektro Auriga, hydraulic disc |
| Rear Brake: |
Tektro Auriga, hydraulic disc |
| Brake Levers: |
Tektro Auriga, hydraulic disc |
| Brake Cable & Housing: |
Tektro Auriga, hydraulic |
|
Wheels
| Front Hub: |
Kinetix Pro by American Classic, stainless steel cartridge bearings, ultralight 58 gram design |
| Rear Hub: |
Kinetix Pro by American Classic, stainless steel cartridge bearings, ultralight 205 gram design |
| Spokes and Nipples: |
Double-butted 18/10 stainless, Sapim Polyax nipples |
| Rims: |
Kinetix Pro X, 24H, 6061-T10 aluminum, patented Rolf Paired Spoke design |
| Tires: |
Schwalbe Kojak, 35-559, foldable Kevlar bead, RaceGuard puncture protection, 95 psi |
Transmission
| Shifter(s): |
Shimano Tiagra trigger, 2x10 spd |
| Front Derailleur: |
Shimano Tiagra |
| Rear Derailleur: |
Shimano Tiagra |
| Crankset: |

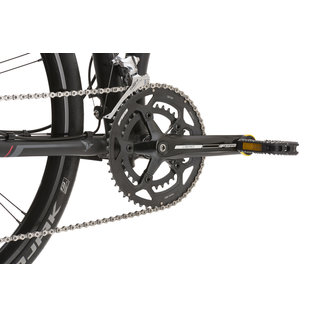

FSA Vero, 50/34T |
| Cassette/Freewheel: |
Shimano Deore, 11-32T, 10 spd |
| Bottom Bracket: |
Cartridge, sealed bearings |
| Chain: |
KMC X10 |
| Pedals: |
LiteForm QR, alloy body, QR right/standard left |
| Shifter Cable & Housing: |
Jagwire LEX-SL, slick treatment, alloy ferrules |
Extras
| Bell: |
Pitch, brass |
| Kickstand: |
Premium center mount |
| Clip System: |
Magnetix 2.0 |
| Luggage Socket: |
Yes |
| Rear Light: |
BioLogic TailLight |
