Tern Eclipse D16 - Gunmetal

C$1,599.00 Excl. tax
Brand:
Article number: 16-6-10
Quantity in stock: 2

Tern Eclipse D16

CRITICAL MASS

The Eclipse D16 delivers the best price-to-performance ratio of any bike in our lineup. Designed with full-sized 26” wheels, hydraulic disc brakes, and a massively stiff hydroformed Eclipse frame, it ticks all the boxes. Somehow, we managed to get it all in there at an amazing price.

  • Best-riding introductory bike in our lineup, thanks to large 26” wheels and our unique folding technology
  • Folds in 10 seconds or less—store it indoors or transport it in your car
  • Resizes in seconds to fit a wide range of riders
  • Tool-free adjustable handlebar stem lets you change riding positions on the fly
  • Fenders for rainy days (included)



SPECS


General Info
Color: Gunmetal Grey
Wheel Size: 26 inch wheels
Speeds: 2x8
Weight: 14.8 kg (32.6 lb)
Folding Time: 10 sec
Folding Size: 440 × 910 × 750 mm (17.3 × 35.8 × 29.5 in)
Frame Sizes: One size
Gear Inches: 29" - 115" (2.28 - 9.14 m)
Distance: Seatpost to Handlebar: 63 - 70 cm (24.8 - 27.6 in)
Distance: Saddle to Pedal: 79.5 - 105 cm (31.3 - 41.3 in)
Suggested Rider Height: 148 - 195 cm (4'10" - 6'5")
Max Rider Weight: 105 kg (230 lb)

Frame
Frame: Tern Eclipse, hydroformed aluminum, 3 patented technologies
Fork: Integrated, hi-tensile steel

Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies
Stem: Tern Andros, adjustable, forged construction, patented technology
Headset: Flux, cartridge bearings, Physis integrated
Handlebar: Flat bar, 6061-Al
Grip/Bars Tape: Velo ergonomic, lock-on
Saddle: Tern Porter, patented GripPad design
Seatpost: SuperOversize, 6061-Al, micro-adjust clamp
Seatpost Clamp: SuperOversize, 6061-Al

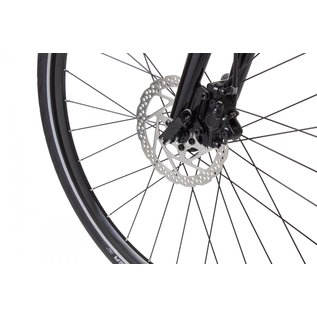

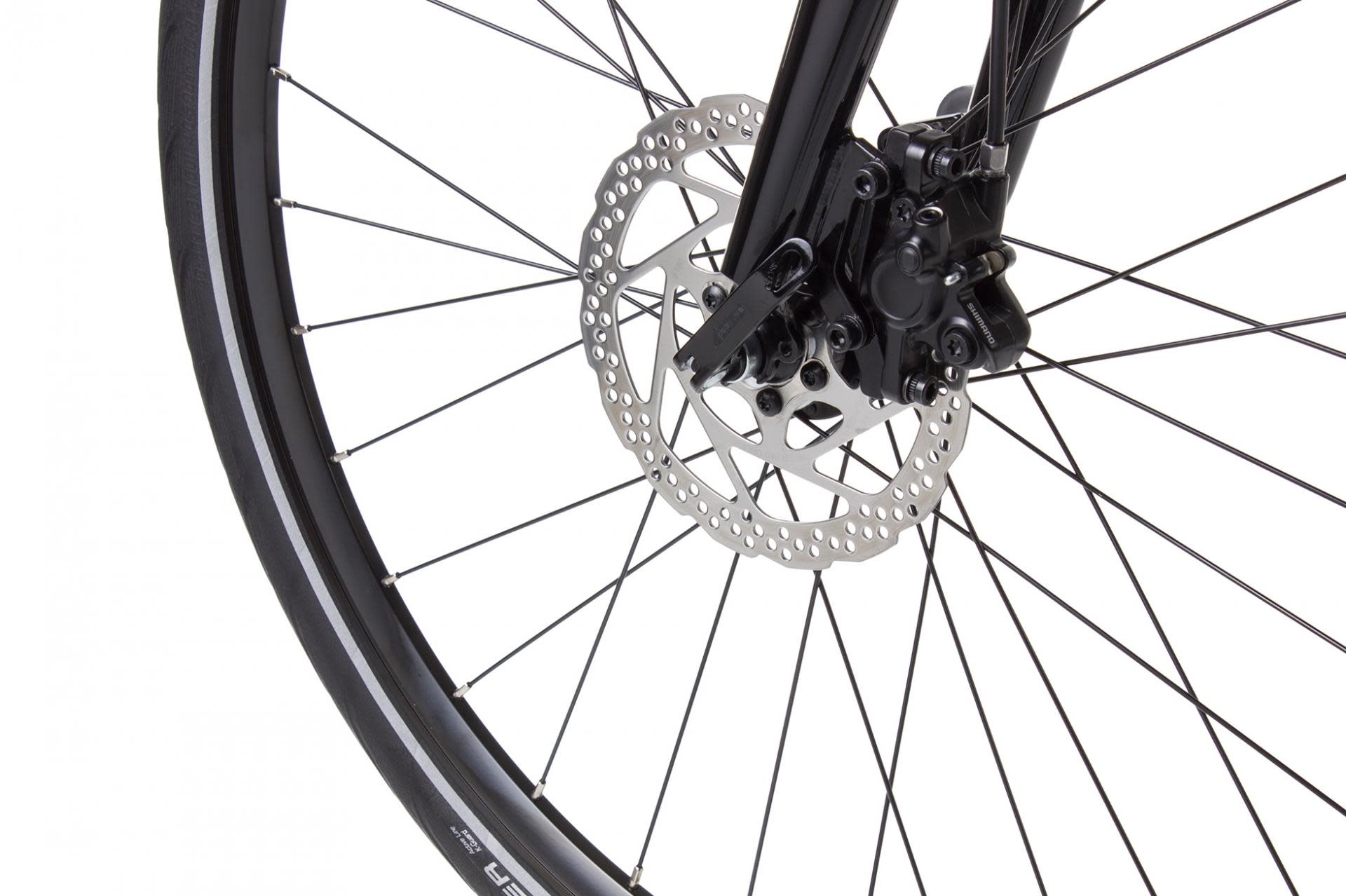

Brakes
Front Brake: Shimano, hydraulic disc
Rear Brake: Shimano, hydraulic disc
Brake Levers: Shimano, hydraulic disc
Brake Cable & Housing: Shimano

Wheels
Front Hub: Shimano, Centerlock disc
Rear Hub: Shimano, Centerlock disc
Spokes and Nipples: Stainless steel
Rims: Doublewall aluminum, disc only
Tires: Schwalbe Spicer, 40-559, puncture protection, Reflex

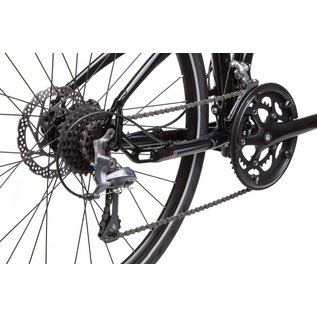

Transmission
Shifter(s): Shimano Tiagra trigger, 2x8 spd
Front Derailleur: Shimano Altus
Rear Derailleur: Shimano Claris
Crankset: Forged 6061 aluminum crank, 50/34T
Cassette/Freewheel: Shimano 11-30T, 8 spd
Bottom Bracket: Cartridge, sealed bearings
Chain: KMC 8spd
Pedals: Folding, alloy body
Shifter Cable & Housing: SP

Extras
Bell: Aluminum
Kickstand: Deluxe center mount
Clip System: Magnetix 2.0
Luggage Socket: Yes
Fenders: RP Chromeplastic, stainless hardware




Disclaimer:
We are doing our best to provide accurate and up to date descriptions, specifications and images of our products, but we cannot guarantee that they are absolutely correct. Please contact us if in doubt, or to confirm a particular feature or a spec which is important to you.
