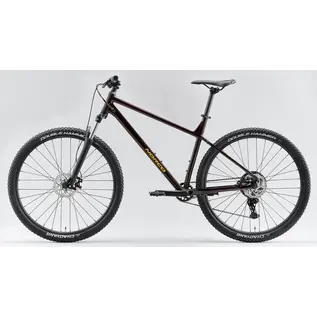

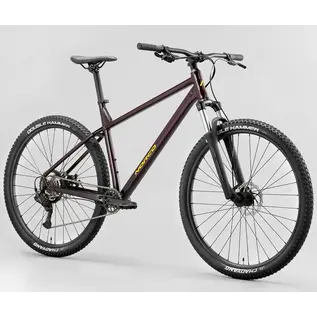

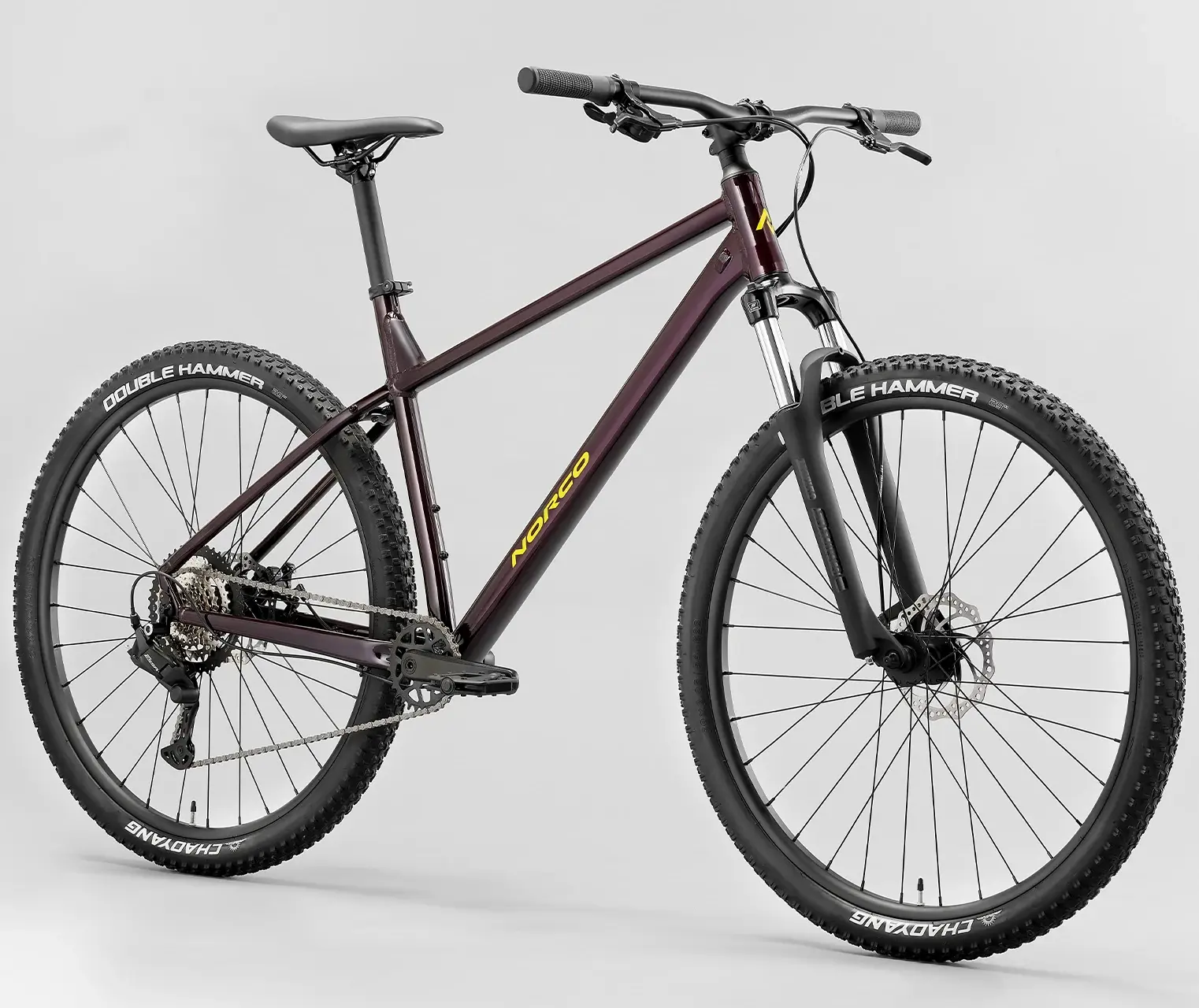

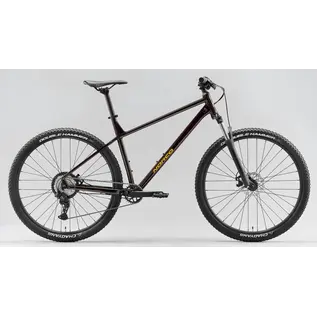

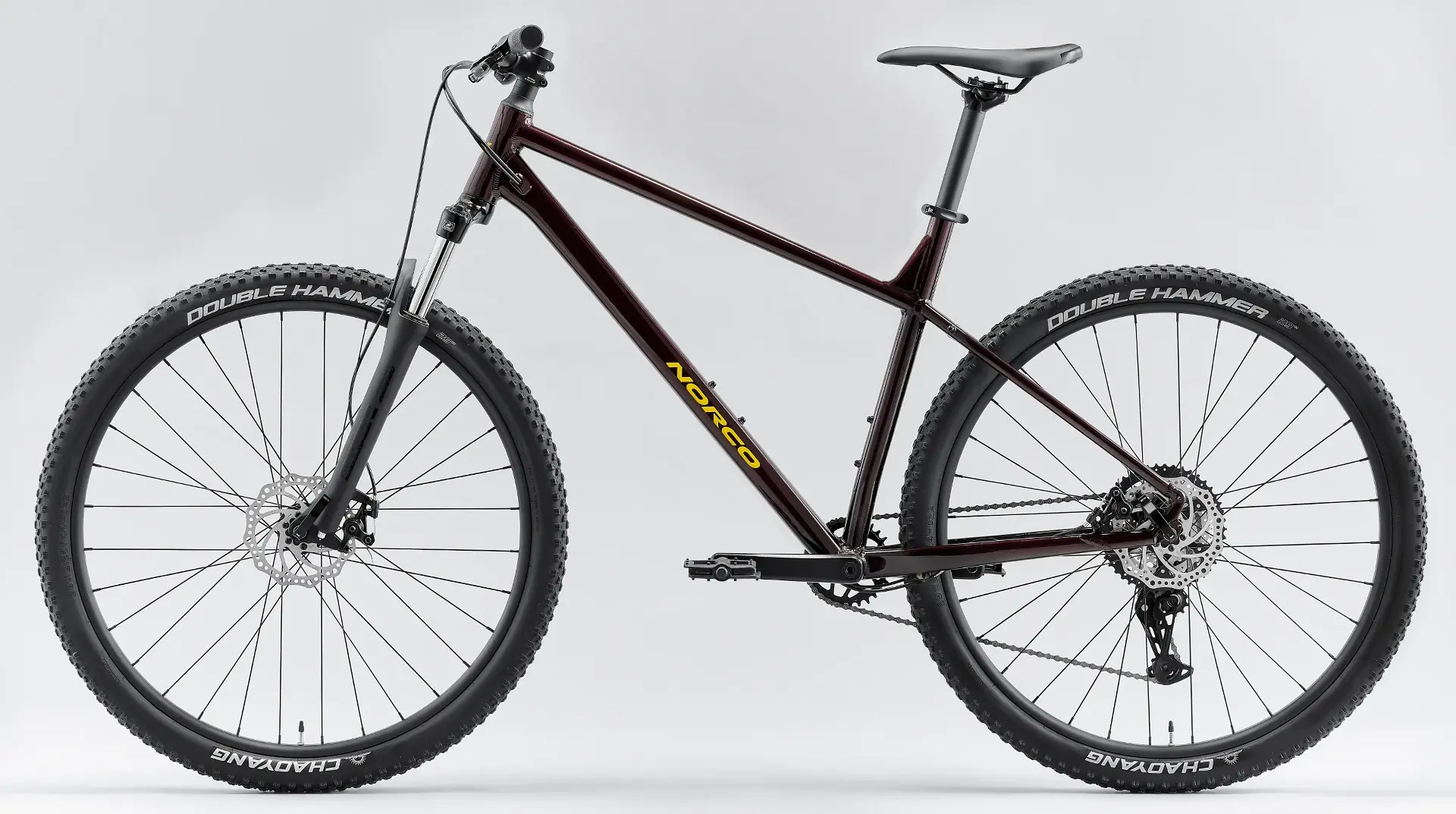

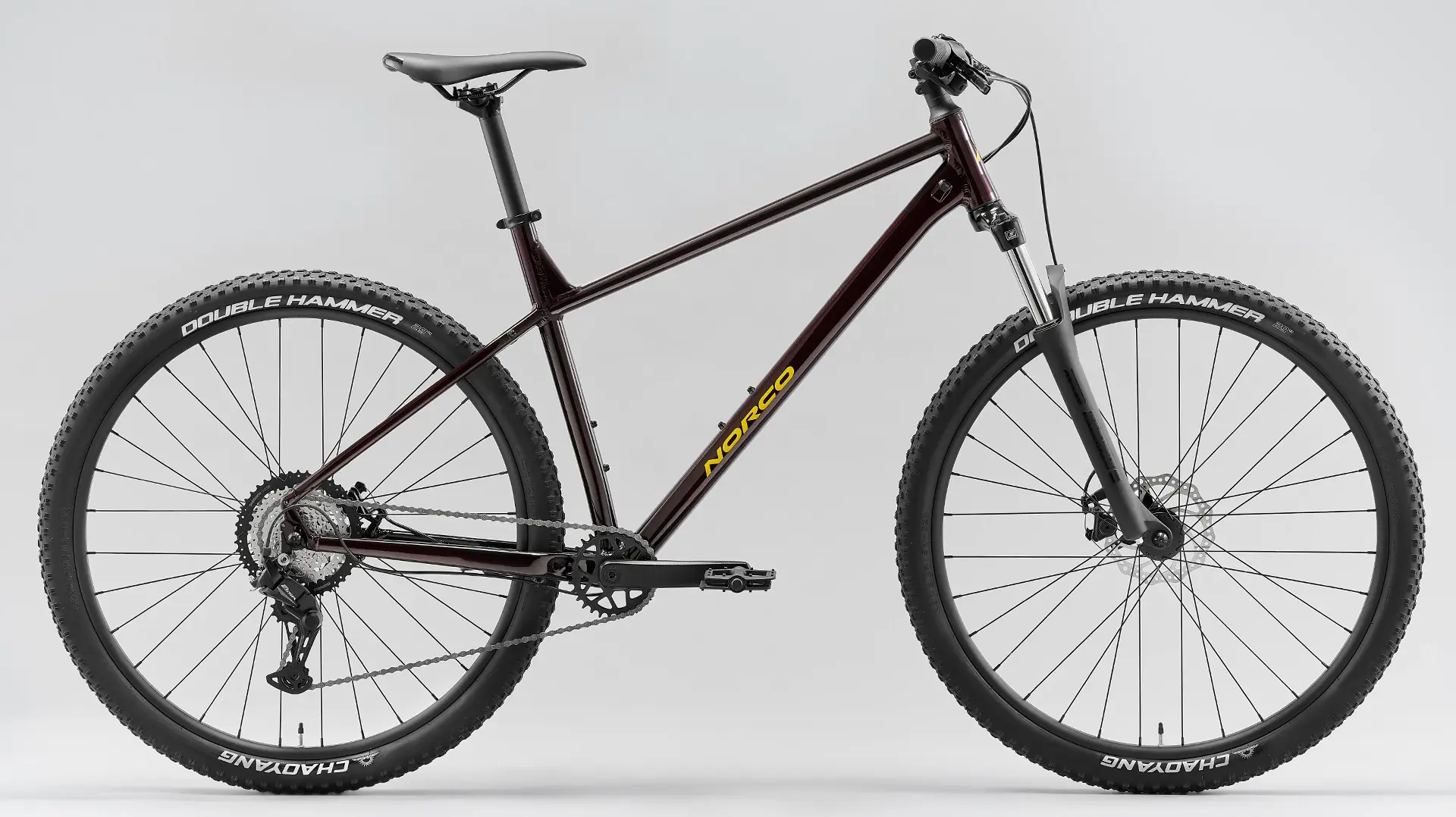

Norco Storm - Liquid Currant

Article number:	0673525915
Quantity in stock:	1

2025 Norco Storm

The Storm features a progressive off-road design and features that’ll help you discover your favourite way to ride.

The Storm opens up the world of off-road adventure.

It’s built for off-road adventure, but the lightweight aluminum Storm is more than happy to lead a double life on city streets and park paths.

Details

Progressive design for nimble, confident trail performance.
The perfect amount of suspension for comfort and control on the trail.
Mechanical systems protected from the elements.
Stop on a dime.
Size-specific wheels optimize the ride.
Versatile frame features to take you anywhere.
No Other Way Limited Lifetime Warranty.

SPECS

Frameset
Frame	Aluminum, Tig Welding, 10x135mm QR, Tapered HT
Fork	Suntour XCT-30 DS Coil, 100mm, 46mm offset, 9x100 QR

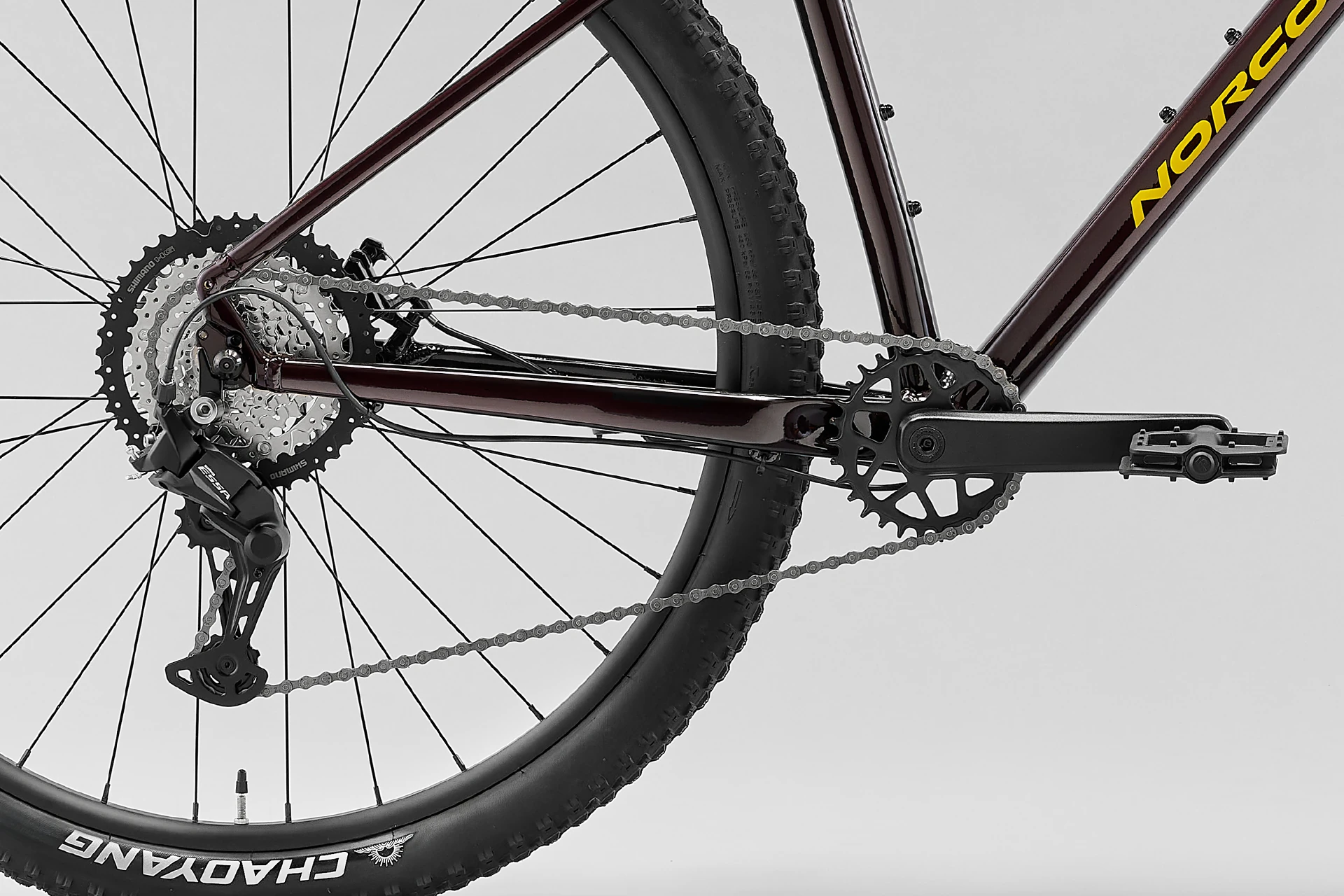

Drivetrain

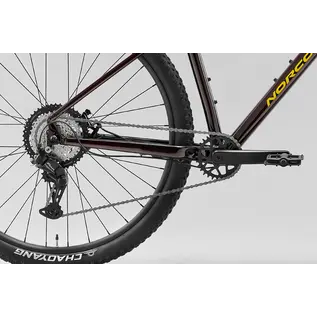

rear DERAILLEUR	Shimano Essa RD-U2000, 8sp Shadow
Cassette	Shimano CS-HG400-8, 11-45T, 8spd
Chain	KMC Z8
Crankset	Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket	Cartridge, ST 73mm, 113mm axle length
Shifter Rear	Shimano Altus SL-M315, 8spd

Brakes
Front Brake	C-Star BX-351, Mechanical Disc
Front Brake Rotor	C-Star, 160mm, 6-Bolt
Rear Brake	C-Star BX-351 Mechanical Disc
Rear Brake Rotor	C-Star, 160mm, 6-Bolt
Brake Levers	C-Star VL-801D Mechanical Disc

Components

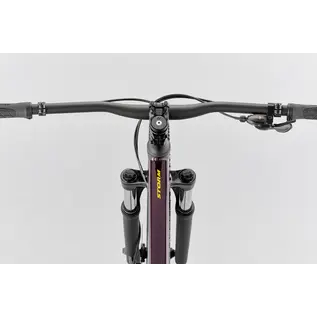

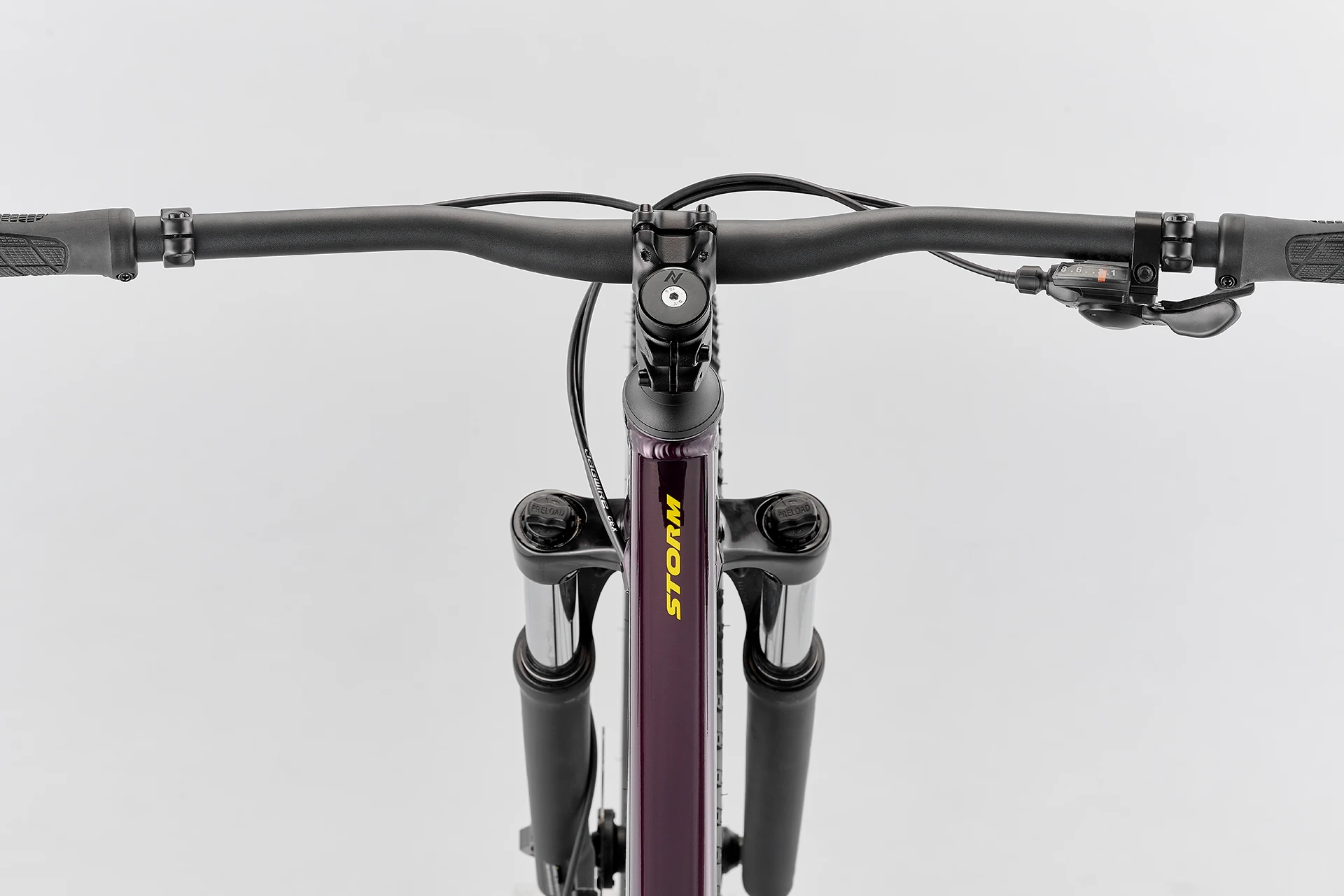

Handlebar	6062 Alloy DB 6.1, 760mm, 30mm rise
Stem	Alloy 45mm Length, 31.8mm Clamp
Seat Post	Alloy 31.6mm, 300mm length
Seat Post Clamp	Norco Alloy QR, 34.9mm ID
Headset	Zero Stack, 1-1/8" Steer, ZS44/28.6 \| ZS44/30 1 1/8"
Headset Spacer	3x10mm
Saddle	Norco XC, Steel Rail
Grips	DDK lock-On, 139mm length
Pedals	Nylon Flat Pedal

Wheels
Front Hub	Formula DC-1420, 9x100mm QR, 32h, 6-bolt
Rear Hub	Formula DC-1422,10x135mm QR, HG, 32h, 6-bolt
Spokes/Nipples	Stainless Steel, 14g
Rims	DP 27 Rims, 27mm ID, 32H
Front Tire	CY H-5162, 60TPI, Wire
Rear Tire	CY H-5162, 60TPI, Wire

GEOMETRY

Norco Storm Geometry

	Frame Size:	S	M	L	XL	XXL
	Wheel Size	27.5"	29"	29"	29"	29"
	Travel - Front (mm)	100	100	100	100	100
	Reach:	405	435	465	495	525
	Stack:	598	619	629	638	647
HTA	Head Tube Angle:	67.0
OS	Fork Offset:	42	46	46	46	46
ST	Seat Tube Length:	430	470	510	550	590
STA	Effective Seat Tube Angle:	74.5	74.75	75	75.25	75.5
RC	Rear Centre Length:	430	440	440	440	440
BB	Bottom Bracket Drop:	30	50	50	50	50
BBH	Bottom Bracket Height:	323
HTT	Horizontal Top Tube:	571	604	633	663	692
WB	Wheel Base:	1121	1164	1198	1232	1266
SOH	Stand Over:	647	695	720	743	777
HT	Head Tube Length:	135	120	130	140	150
	Trail:	104	108	108	108	108
	Maximum Post Insertion	305	345	385	425	465
	Recommended Seatpost Drop	0
	Stem Length:	50
	Crank Length:	170	170	175	175	175
	Tire Size:	2.25" - 2.4"

Water Bottle compatibility as per frame size:

S: 1 x 750 ml
M, L: 1 x 620 ml and 1 x 750 ml
XL, XXL: 2 x 750 ml

IMPORTANT:

This Norco bicycle can only be delivered to the Customer as fully assembled and tuned by a Norco dealer.
This means the following:

Any on-line order for this Norco bicyle can only be picked after it is fully assembled at our store, or shipped to a Norco dealer for the assembly and the tune*.
We cannot ship directly to Customer's address. If you cannot pick up the bike at our store please find your nearest Norco dealer who will accept to assemble, and tune the bike. Please specify Dealer's address as a shipping address in your online order. Any order specifying any address other than a Norco dealer address will be canceled, and a cancellation fee may apply if the payment was processed.

*Sorry, we cannot cover assembly charges which other Norco dealers will charge.

Assembly, tune, and any furter tuneups are free of charge when the bike is picked up at our store.

Disclaimer:
We are doing our best to provide accurate and up to date descriptions, specifications and images of our products, but we cannot guarantee that they are absolutely correct. Please contact us if in doubt, or to confirm a particular feature or a spec which is important to you.
