| Article number: | 0406015854 |
| Quantity in stock: | 1 |

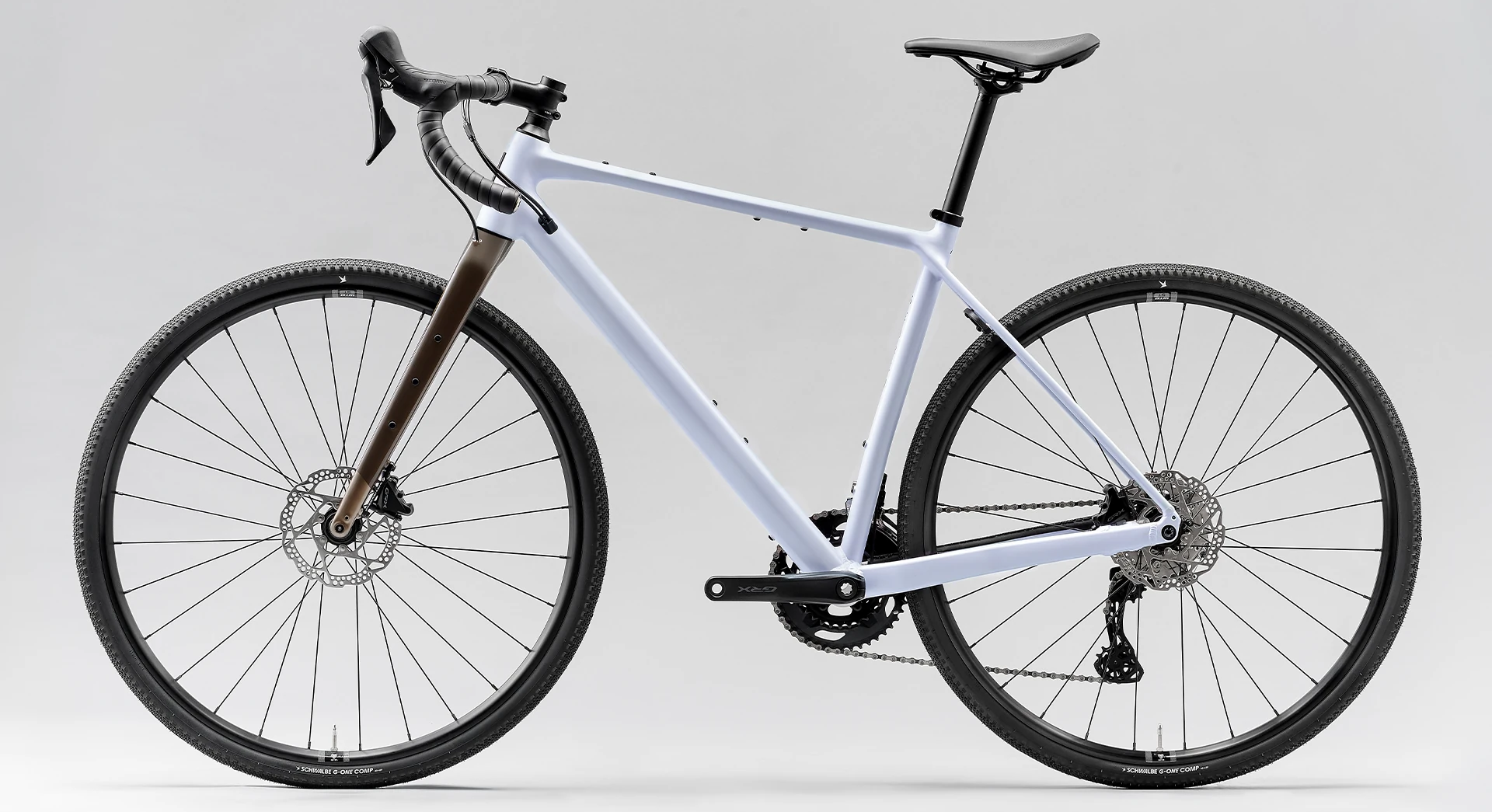

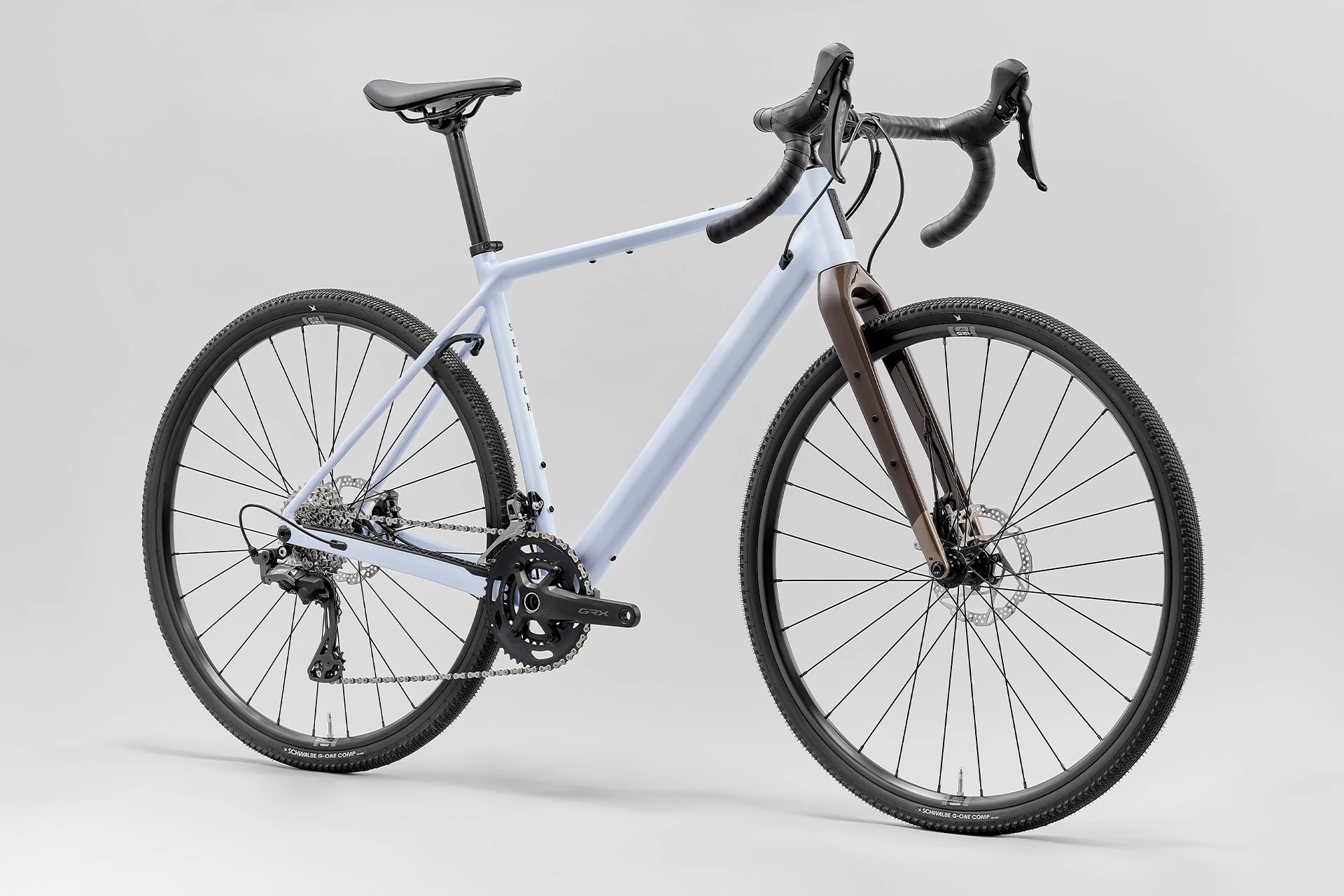

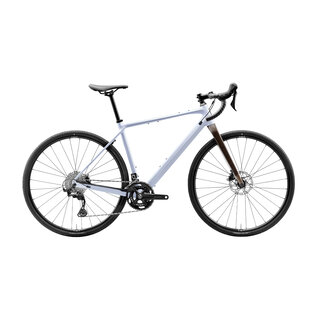

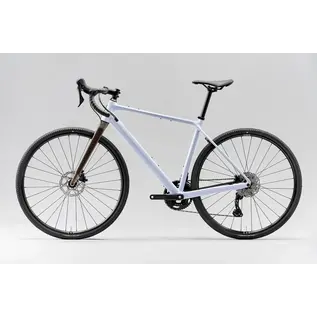

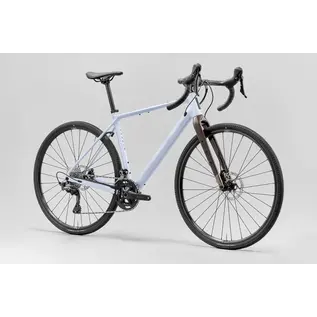

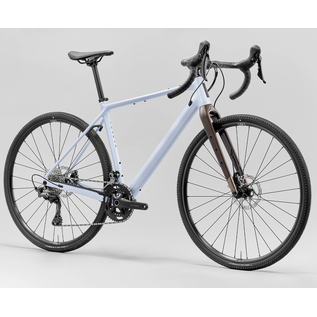

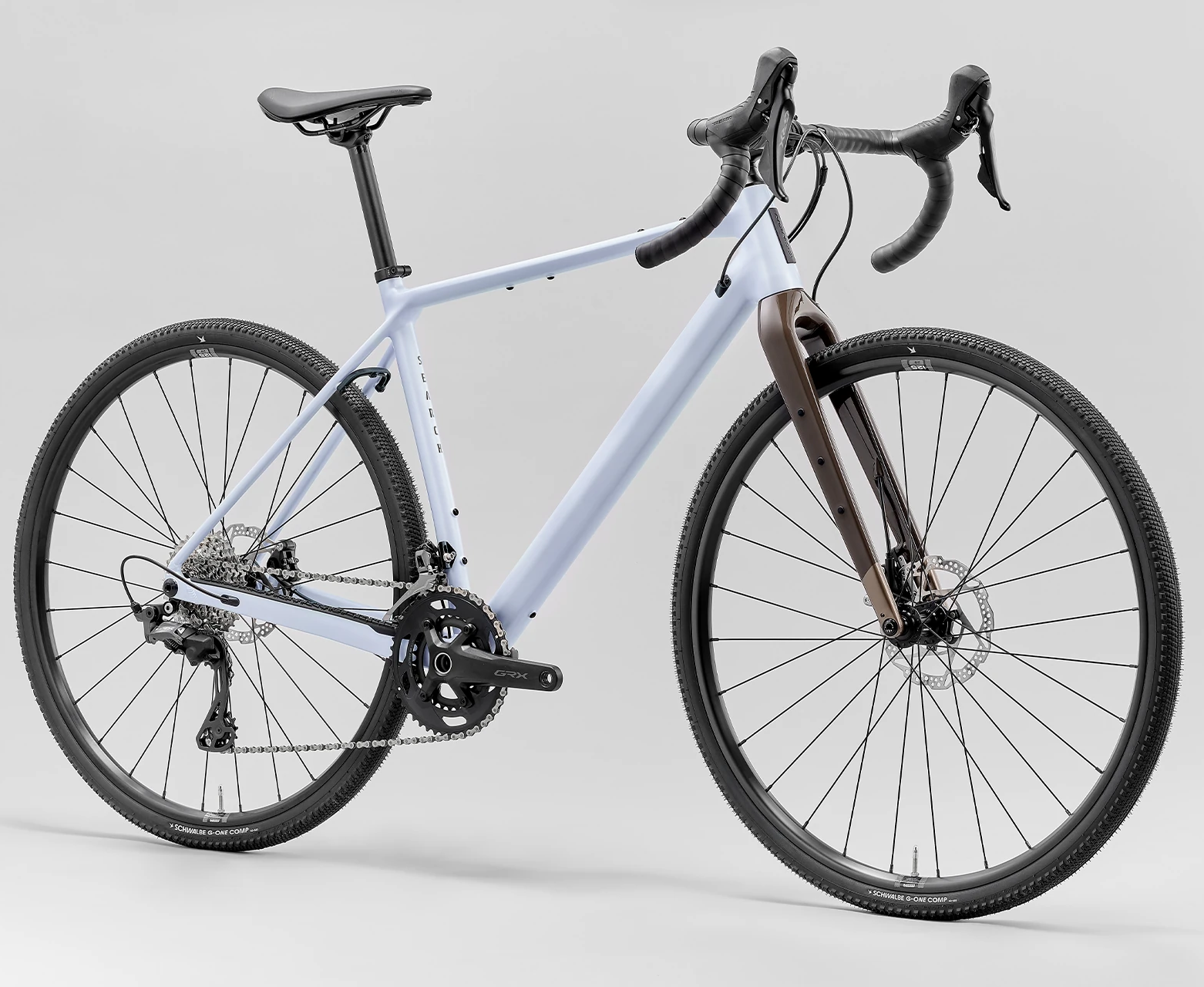

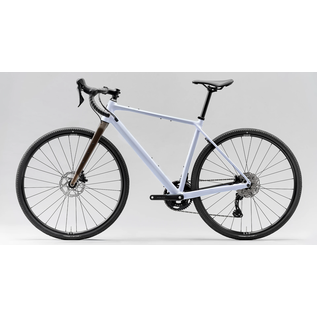

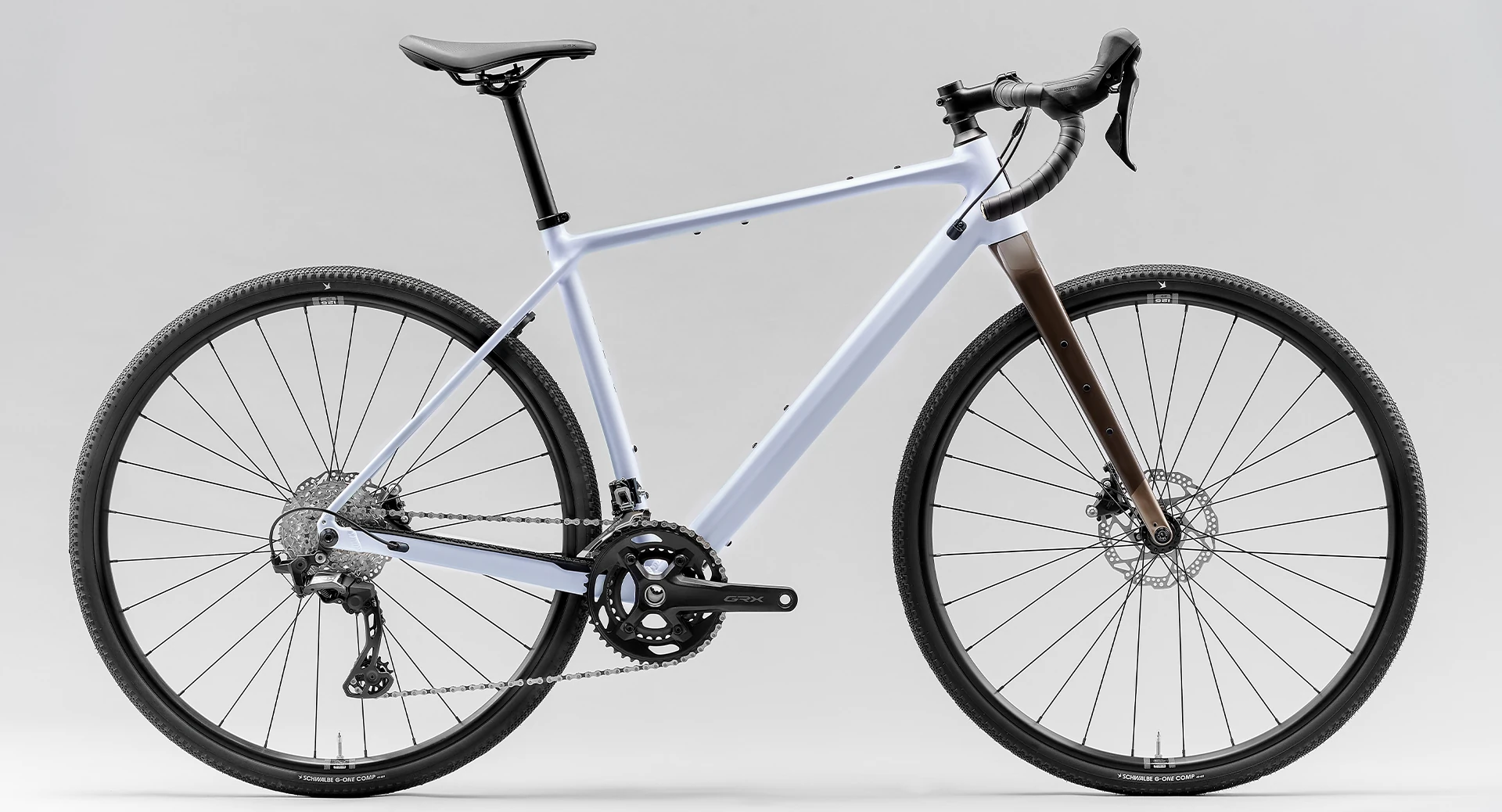

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A GRX is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano GRX 2x12 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.
Search A GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.
The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.
Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.
| Frame | Search Butted Aluminum w/Smooth Welds |

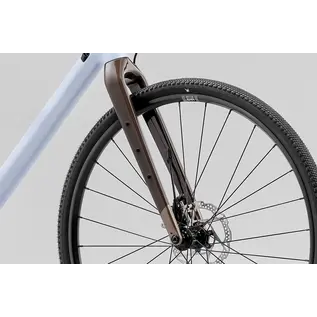

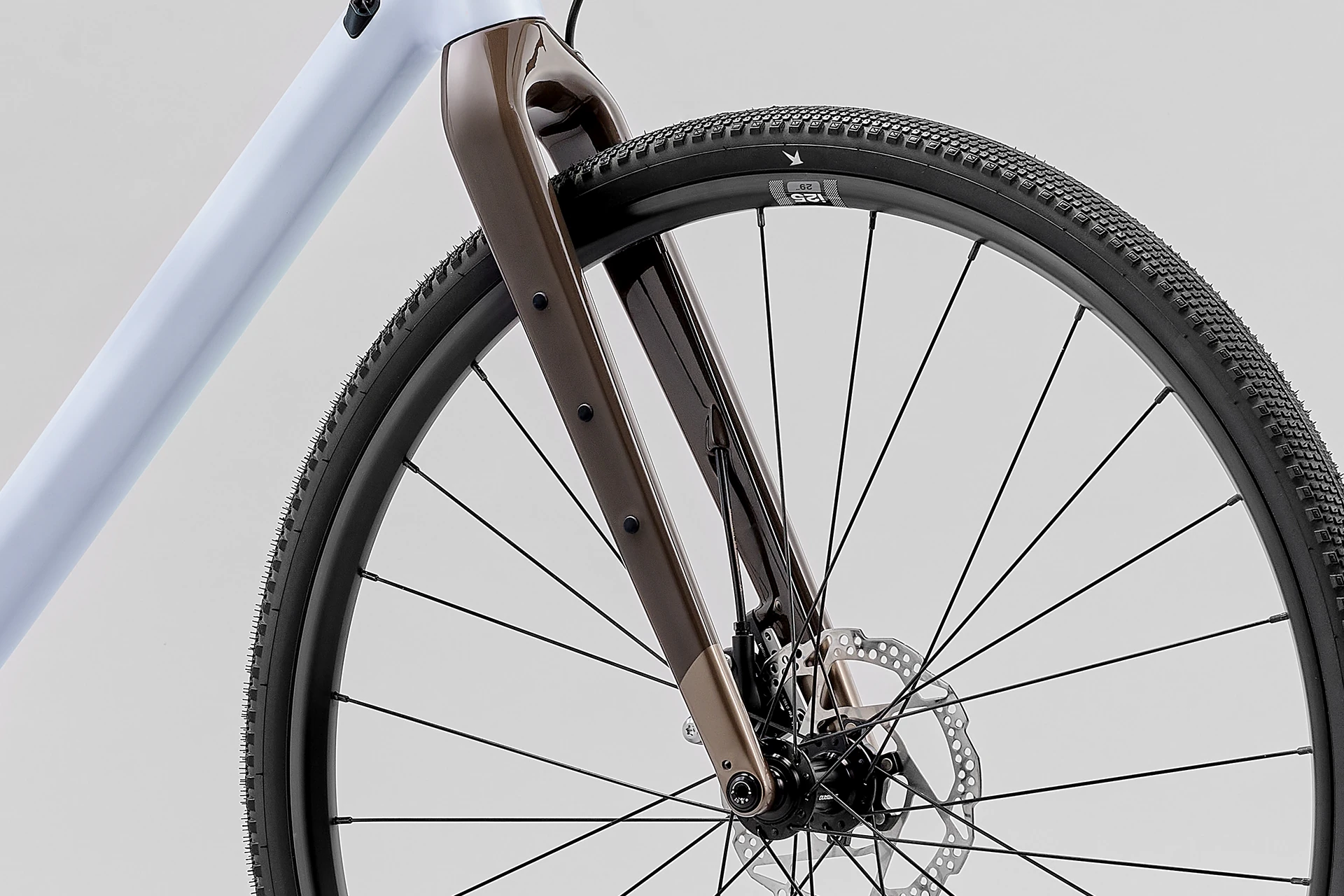

| Fork | Search Carbon, 51mm Offset, 12x100mm TA |
| Rear Shifter | Shimano GRX ST610, 12sp |
| Rear Derailleur | Shimano GRX GS RD-RX820, 12sp |
| Front Shifter | Shimano GRX ST610, 2x |
| Front Derailleur | Shimano GRX FD-RX820,Braze On, Down Swing |

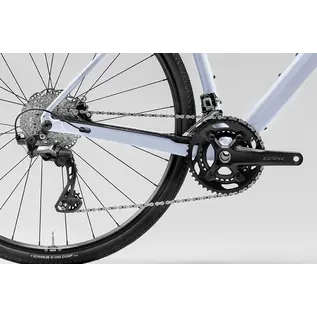

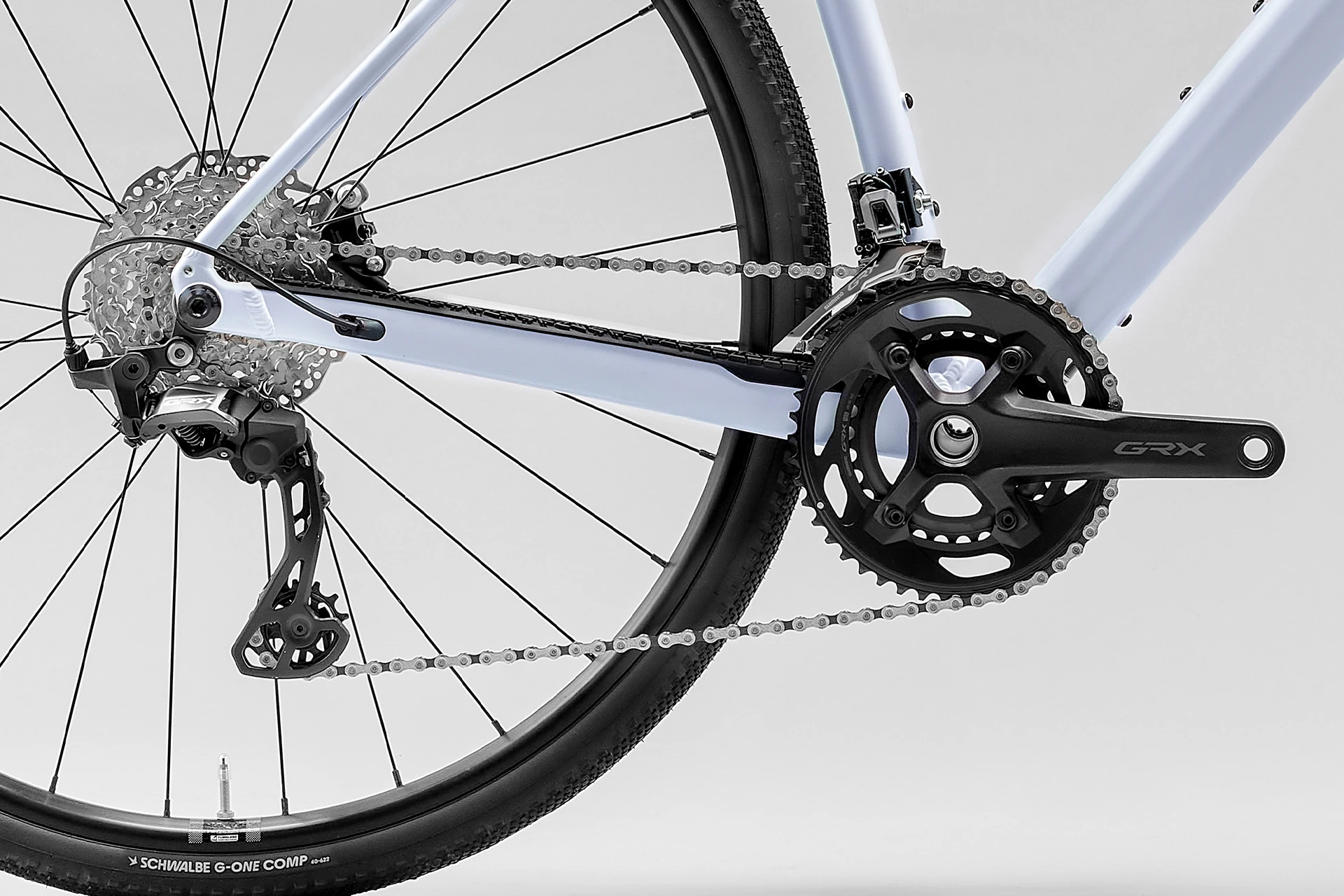

| Crankset | Shimano GRX FC-RX610, 46-30T, 47CL, 165mm (S1,S2) - 170mm (S3,S4) - 172.5mm (S5) |
| Bottom Bracket | Shimano SM-BBR60, 68mm BSA |
| Cassette | Shimano CS-HG710, 10-36T, 12sp |
| Chain | KMC X12 |
| Front Brake | Shimano BR-RX400, Resin w/o Fin |
| Front Brake Rotor | Shimano SM-RT64, 160mm, C-lock |
| Rear Brake | Shimano BR-RX400, Resin w/o Fin |
| Rear Brake Rotor | Shimano SM-RT64, 160mm, C-lock |
| Brake Levers | Shimano GRX ST610 |

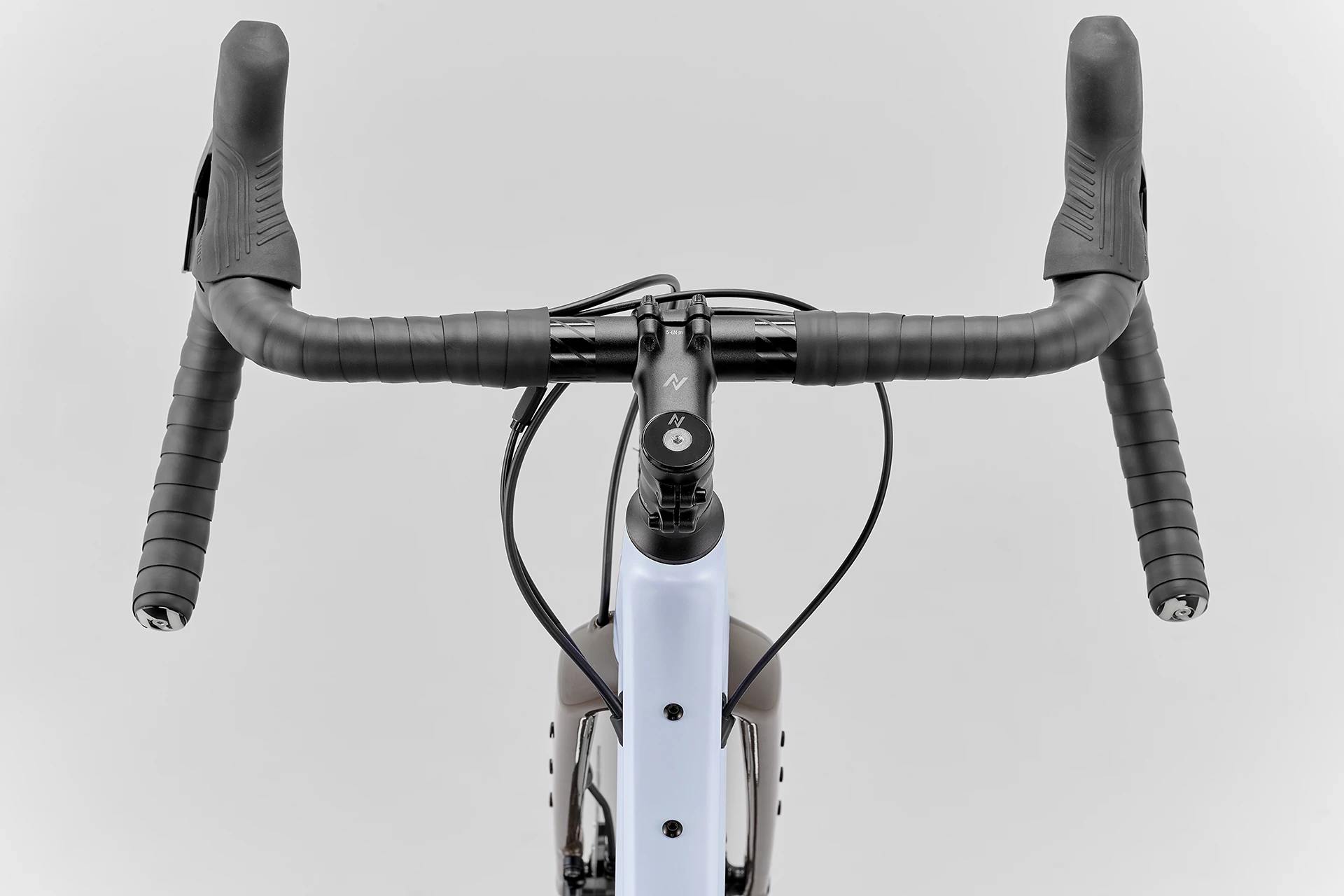

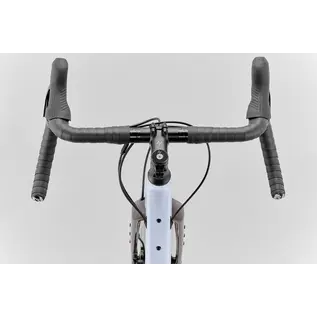

| Handlebar | Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree |
| Stem | Norco SL Alloy 70mm Length, 31.8mm Clamp |
| Seatpost | Norco Alloy, 27.2mm, 12Deg Offset, 300mm length |
| Headset | FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Saddle | Selle Royale SRX Gravel, 148mm |
| Grips | Griptacular Shockproof Tape 3mm |
| Seatpost Clamp | Norco Aluminum, 31.8mm ID |
| Front Hub | Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Rear Hub | Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H, C-lock |
| Rims | WTB ST i25 2.0, 28h, 25mm ID |
| Rear Tire | Schwalbe G-One All Round, Race Guard, 700x40c |
| Rear Tire | Schwalbe G-One All Round, Race Guard, 700x40c |
| Spokes/Nipples | Sapim Leader 2.0mm - Black w/Black Brass Nipples |
| Valves | WTB TCS Tubeless Valve, Brass |
| Sealant | WTB TCS Tubeless Tire Sealant, 8oz/236ml |
| Rim Tape | WTB TCS 2.0 Solid Strip |
| Weight | 10.6 kg (23 lbs. 8 oz.) |
| Weight Size | S3 |
| Frame Size | 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|---|
| Wheel Size | 700c | 700c | 700c | 700c | 700c | |
| Reach | 385 | 400 | 415 | 430 | 445 | |
| Stack | 554 | 564 | 587 | 611 | 634 | |
| HTA | Head Tube Angle |
69.5
|
||||
| OS | Fork Offset |
51
|
||||
| ST | Seat Tube Length | 440 | 475 | 510 | 545 | 580 |
| STA | Effective Seat Tube Angle | 74.5 | 74.25 | 74 | 73.75 | 73.5 |
| RC | Rear Centre Length |
425
|
427.5 |
430
|
||
| BB | Bottom Bracket Drop |
75
|
||||
| BBH | Bottom Bracket Height |
285
|
||||
| HTT | Horizontal Top Tube | 539 | 559 | 583 | 608 | 633 |
| WB | Wheelbase | 1037 | 1056 | 1082 | 1108 | 1132 |
| SOH | Standover | 682 | 715 | 748 | 781 | 814 |
| HT | Head Tube Length | 100 | 110 | 135 | 160 | 185 |
| Trail |
80
|
|||||
| Maximum Post Insertion | 210 | 240 |
310
|
345 | ||
| Stem Length |
70
|
|||||
| Crank Length | 165 |
170
|
172.5
|
|||
| Tire Size |
40c — 50c
|
|||||
| Water Bottle Compatible |
3 x 750 mL
|
|||||
| IMPORTANT:
This Norco bicycle can only be delivered to the Customer as fully assembled and tuned by a Norco dealer.
*Sorry, we cannot cover assembly charges which other Norco dealers will charge. Assembly, tune, and any furter tuneups are free of charge when the bike is picked up at our store. |
