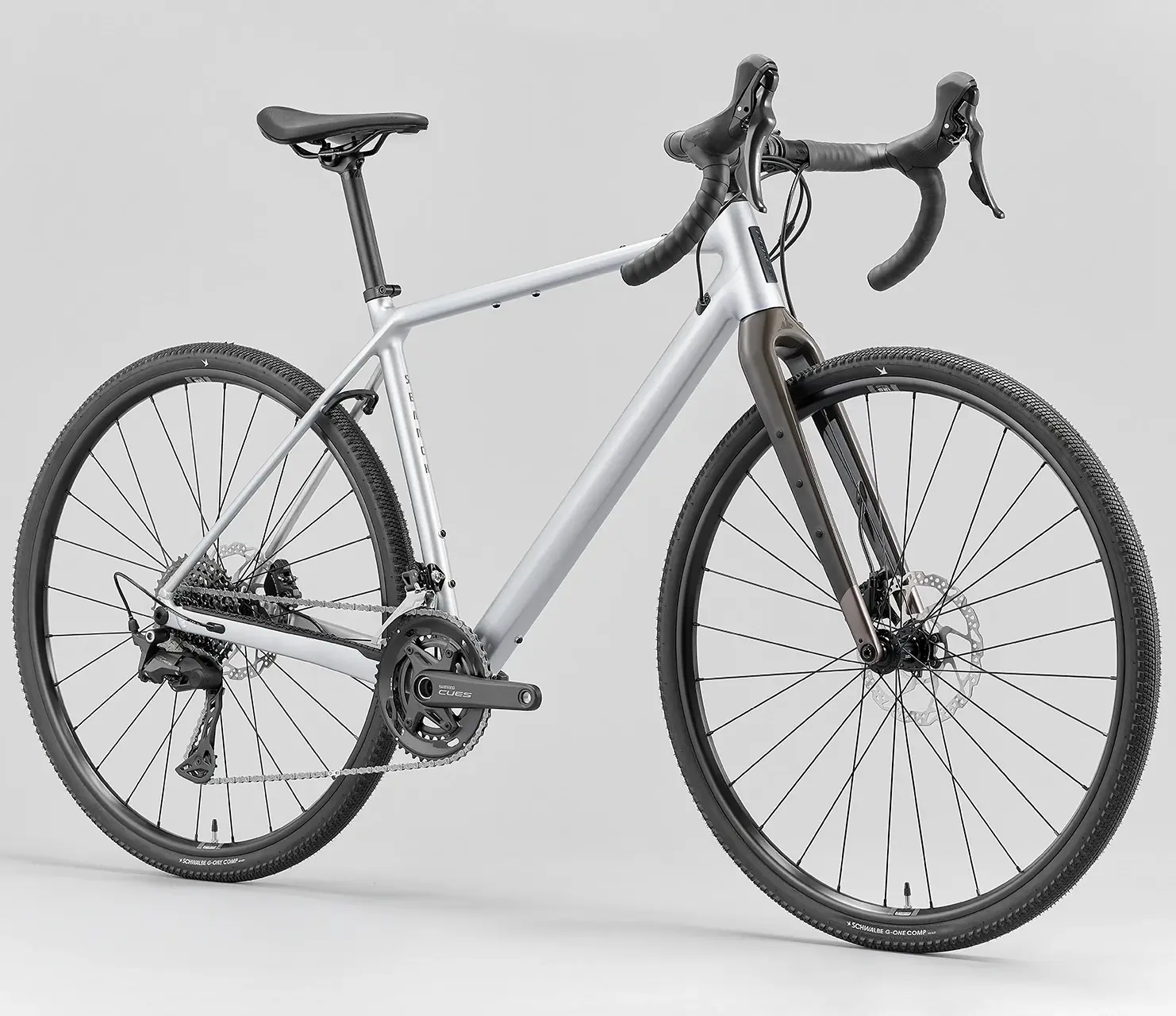

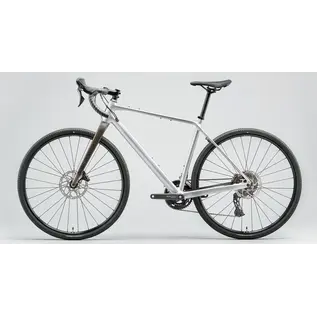

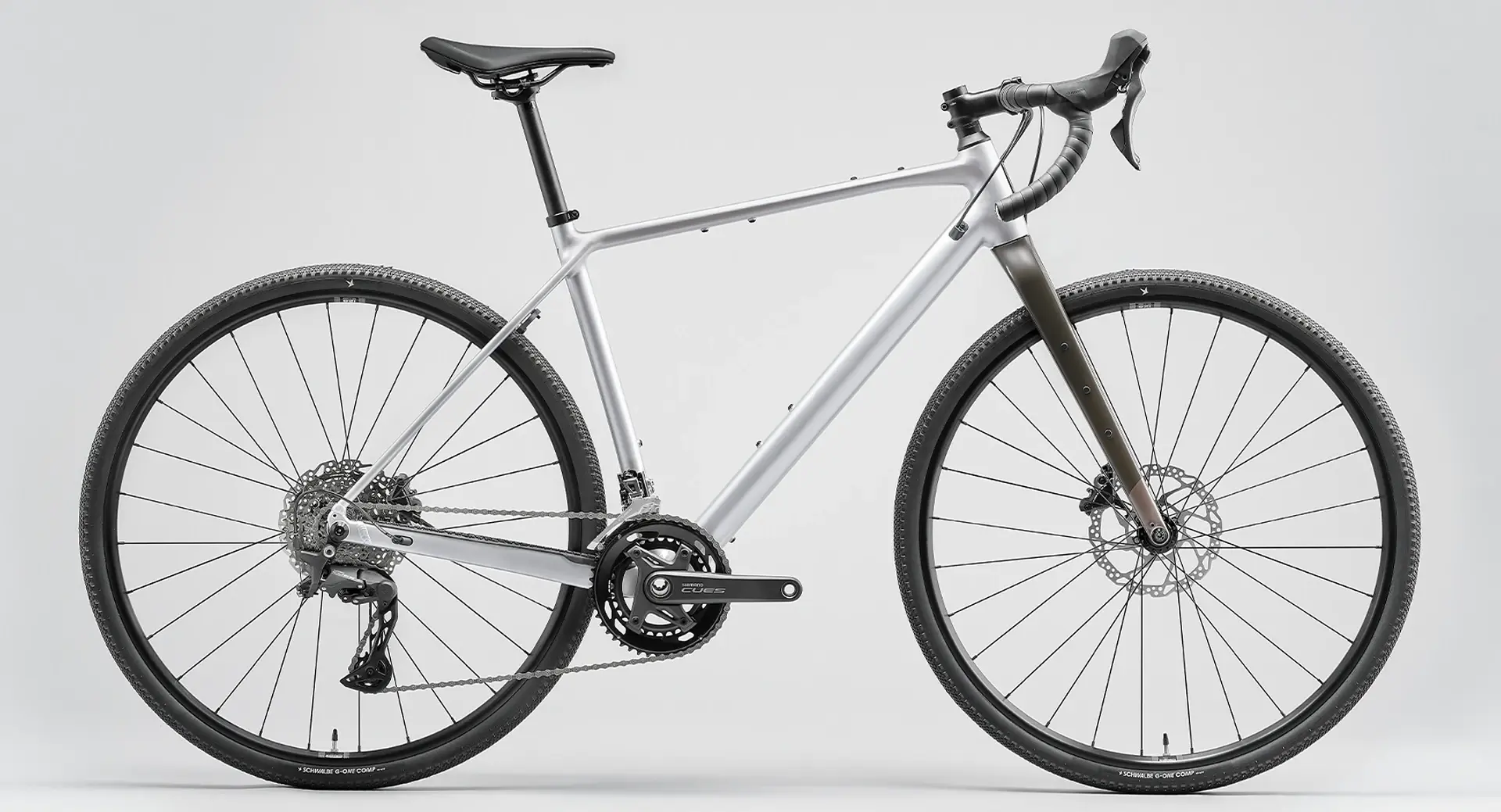

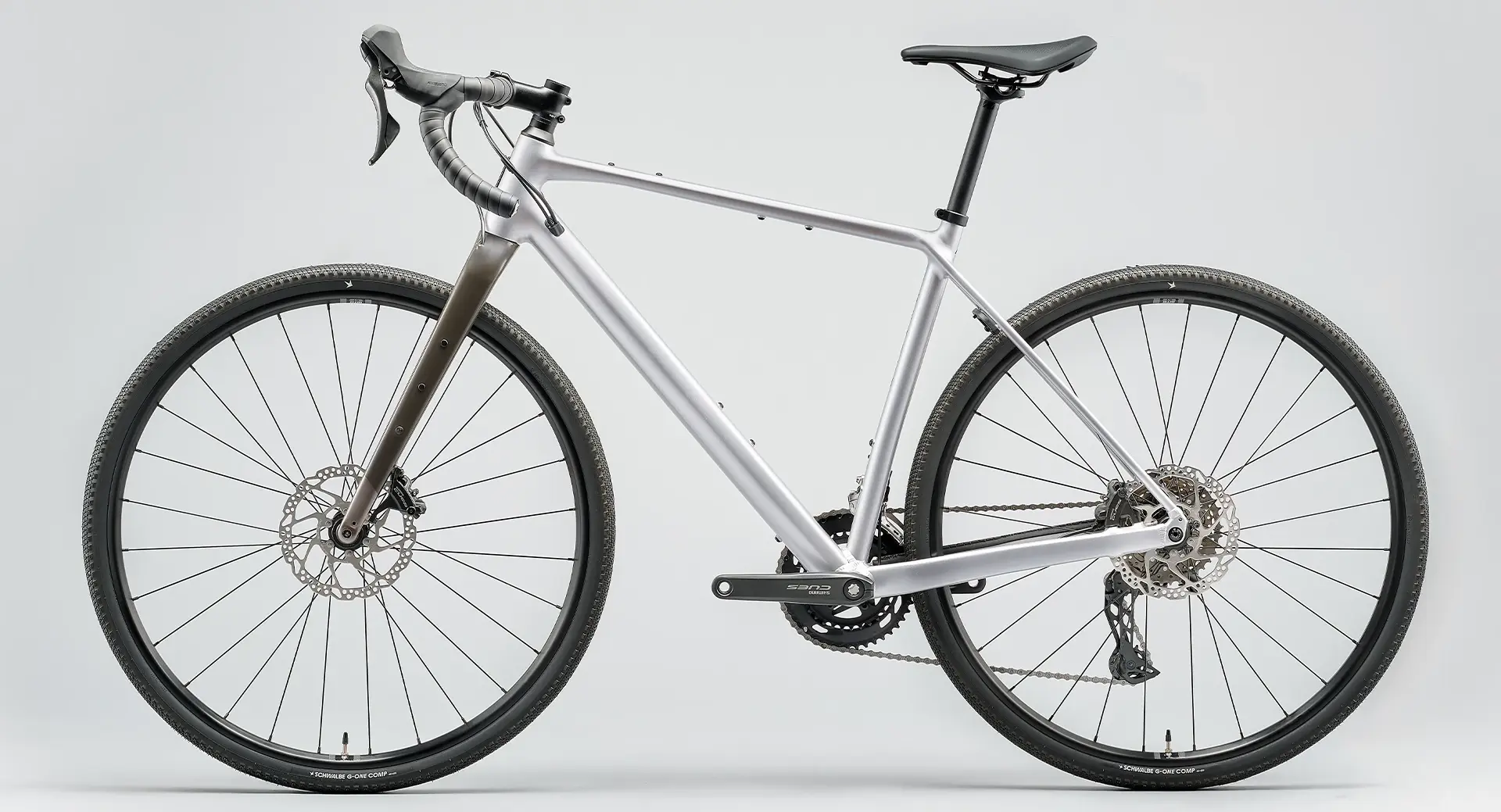

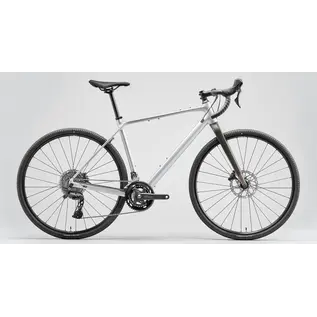

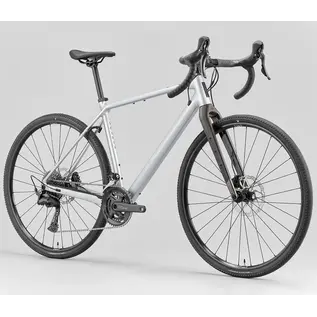

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A CUES is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano CUES 2x10 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.
Search A CUES features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.
The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.
Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.
| Frame | Search Butted Aluminum w/Smooth Welds |

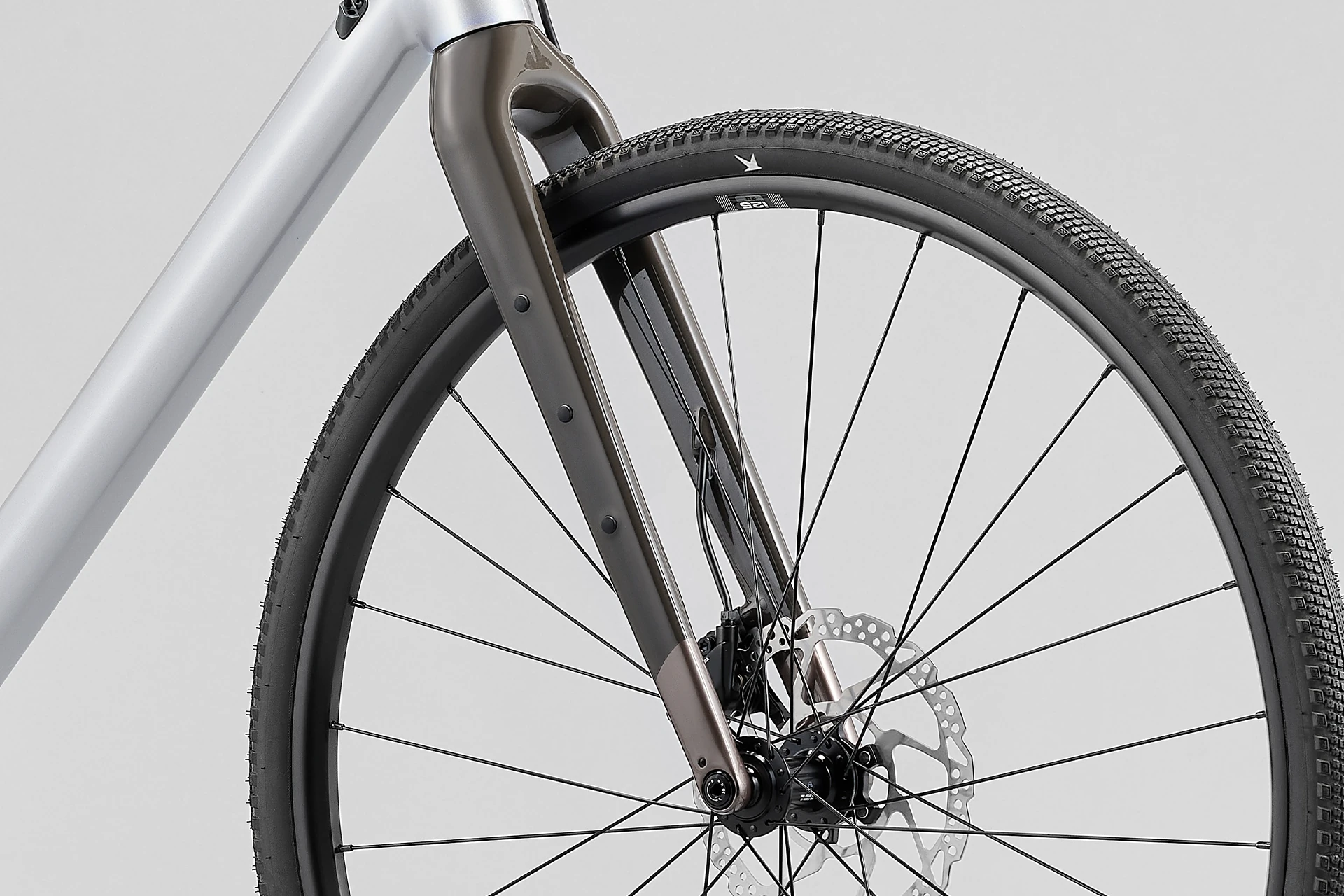

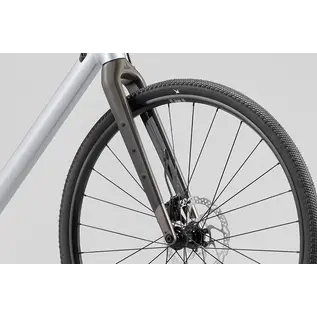

| Fork | Search Carbon, 51mm Offset, 12x100mm TA |

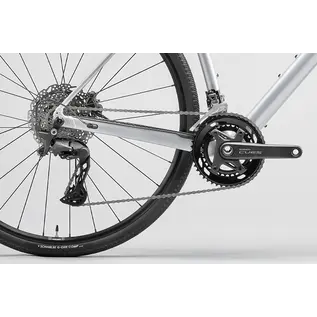

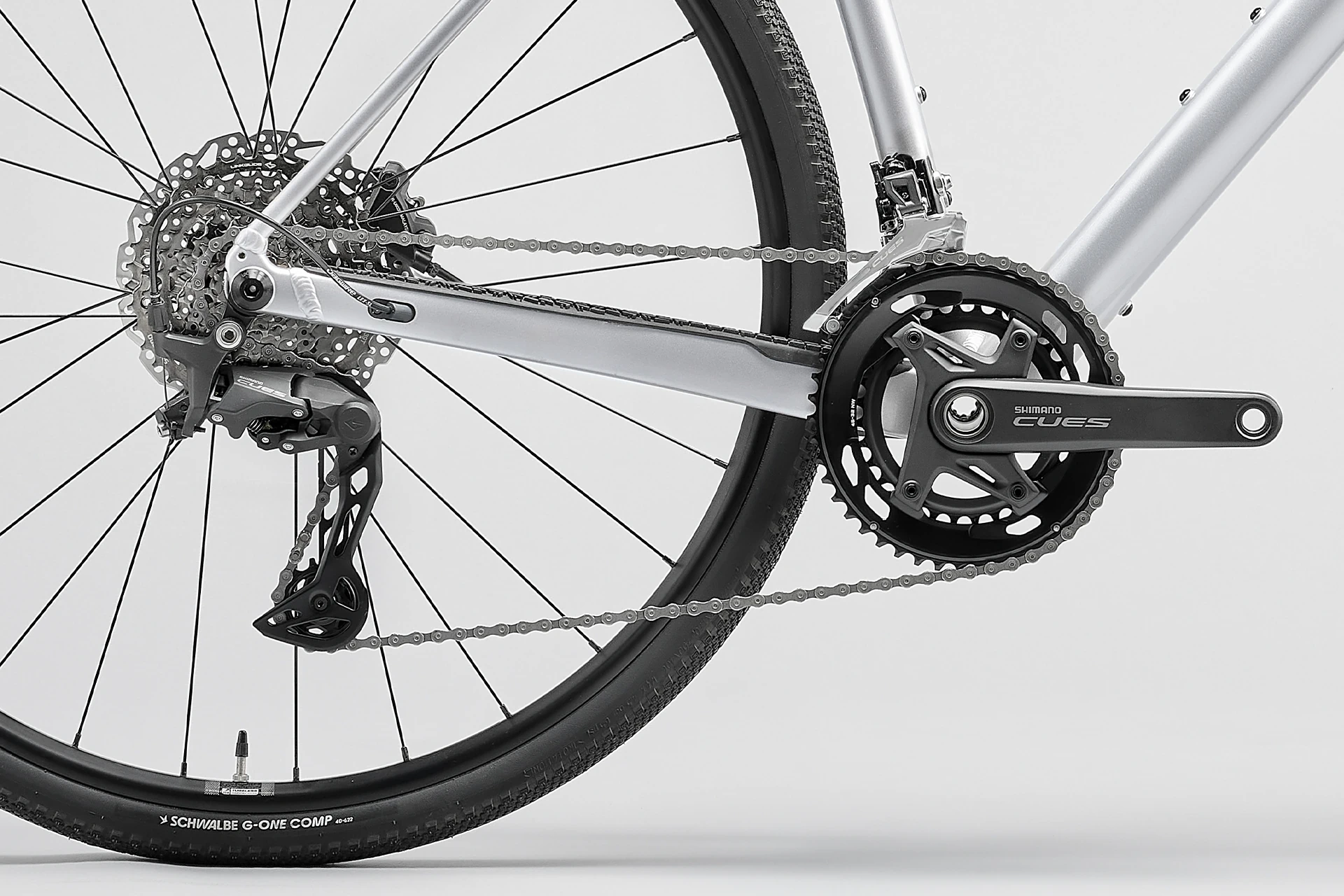

| Rear Shifter | Shimano CUES ST-U6030, 10sp |
| Rear Derailleur | Shimano CUES RD-U6020, Shadow, 10sp |
| Front Shifter | Shimano CUES ST-U6030, 2sp |
| Front Derailleur | Shimano CUES FD-U6030, 9/10sp, Down Swing |
| Crankset | Shimano CUES FC-U6030, 46-32T, 170mm |
| Bottom Bracket | Shimano Cartridge Bearing, 68mm BSA |
| Cassette | Shimano LG-400, 11-39T, 10sp |
| Chain | KMC X12 |
| Front Brake | Shimano CUES BR-U6030, Resin Pads |
| Front Brake Rotor | Shimano SM-RT54, 160mm, C-lock |
| Rear Brake | Shimano CUES BR-U6030, Resin Pads |
| Rear Brake Rotor | Shimano SM-RT54, 160mm, C-lock |
| Brake Levers | Shimano CUES ST-U6030 |

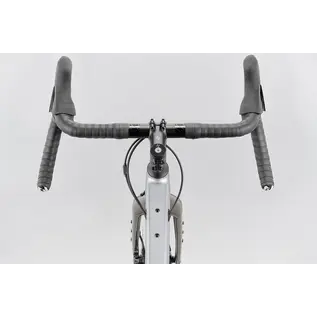

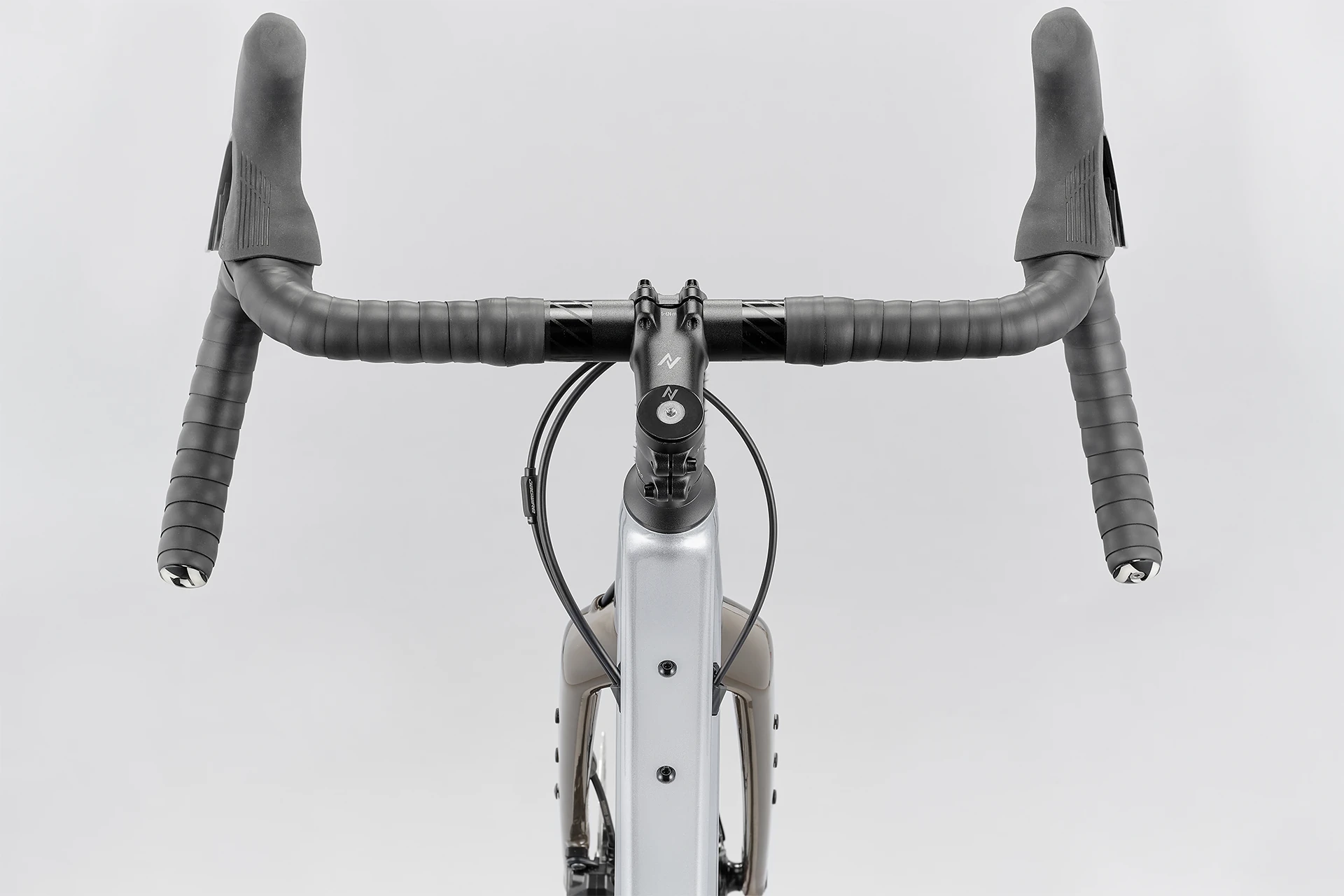

| Handlebar | Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree |
| Stem | Norco SL Alloy 70mm Length, 31.8mm Clamp |
| Seatpost | Norco Alloy, 27.2mm, 12Deg Offset, 300mm length |
| Headset | FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Saddle | Selle Royale SRX Gravel, 148mm |
| Grips | Griptacular Shockproof Tape 3mm |
| Seatpost Clamp | Norco Aluminum, 31.8mm ID |
| Front Hub | Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Rear Hub | Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H, C-lock |
| Rims | WTB ST i25 2.0, 28h, 25mm ID |
| Rear Tire | Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Rear Tire | Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Spokes/Nipples | Sapim Leader 2.0mm - Black w/Black Brass Nipples |
| Valves | WTB TCS Tubeless Valve, Brass |
| Sealant | WTB TCS Tubeless Tire Sealant, 8oz/236ml |
| Rim Tape | WTB TCS 2.0 Solid Strip |
| IMPORTANT:
This Norco bicycle can only be delivered to the Customer as fully assembled and tuned by a Norco dealer.
*Sorry, we cannot cover assembly charges which other Norco dealers will charge. Assembly, tune, and any furter tuneups are free of charge when the bike is picked up at our store. |
