CONNECT - Arctic White

Opus CONNECT STePS 5000 - Arctic White

C$3,079.99
C$2,899.00 Excl. tax
Brand:
+ -
Add to cart
Article number: OP-CON2AW
Quantity: 1

Opus Connect

FOR THE NEW GENERATION OF E-BIKE LOVERS
Powered by the new Shimano E-5000 STePS system, the new Connect is for those seeking a fun and easy-riding ebike. The power-assisted ride lets you go further with less effort. The semi-integrated downtube battery from Shimano is combined with a powerful motor which offers 3 power-assist modes. Whether you want to go up that famous hill, out of town, or commute to work, the new Opus Connect is the smart choice.

  • Low step-through frame for everyone to enjoy
  • Shimano STePS with three power modes
  • Range of up to 125 km


Shimano STePS E5000

20% LONGER RIDING DISTANCE*
Optimal setting of the assist output characteristic adds up to 20% more range per charge. (compared with E6002)

SHIMANO STEPS preserves a more natural and organic City and Trekking riding experience by providing the right amount of power at the right time. The system continuously and precisely monitors the rider’s pedaling input, interprets the riding conditions based on this data, and adjusts the output profile accordingly. Zoom to your local café or glide through the countryside in comfort, control and style.

Natural and efficient pedaling positioning provides a more linear response.

Optimized setting of assist output characteristic uses battery power more intelligently.

SPECS:
Assist Modes: HIGH, NORMAL, ECO, Walk Assist
Riding Characteristics (set by E-TUBE Software): Comfort
Rated Power: 250 W
Maximum Power Output: 420 W
Maximum Torque: 40 Nm
Weight: 2.5 kg

*TEST CONDITIONS: (Shimano original riding pattern)
Flat paved road, riding speed: 14mph, stop/go 2 times/0.48miles, optimal gear shifting cadence 60 rpm, rider weight: 80 kg, trekking bike tire 38C, outside temperature: 15 degree - 25 degree, without electronic shifting, without lights.


Shimano BT-E8014 Battery

To supply year-round enjoyment under any conditions, the Shimano battery system features long-life operation at a wide range of temperatures.

Anti-aging battery
SHIMANO STEPS utilizes a long-life battery to maintain sufficient output, even after a 1,000 charges

Reliable low-temperature battery performance
SHIMANO STEPS batteries last longer at low temperatures. Even while riding outside in the freezing cold (0°C / 32°F) of winter, Shimano batteries continue to perform near peak capacity.

SPECS:
Rated Capacity: 418 Wh
Rated Voltage: 36 V
Weight: 2.55 kg


Shimano SC-E6100 Cycle Computer

Large, easily viewable display
Assist Modes: HIGH, NORMAL, ECO, Walk Assist

Expanded communication by wireless connectivity with smartphone applications and 3rd party displays:

- E-TUBE RIDE smartphone app (Android, IOS). The E-TUBE RIDE app easily turns your smartphone into a SHIMANO STEPS cycling display and beautifully visualizes your favorite real-time riding data.
- Compatible device made by one of Shimano official display partners (Garmin, Sigma)





SPECIFICATIONS

Frame Meta 30 6061 Aluminum
Fork Aluminum Tapered 1-1/2 to 1-1/8 in
Weight (lb) 43
Sizes S-M-L
Color(s) Arctic White
Shifters Shimano Altus 9
Front Derailleur N/A
Rear Derailleur Shimano Altus Shadow
Brakes Shimano BR-M315 Hydraulic Disc
Brake Levers Shimano BL-M315
Crank Shimano STePS
Chainrings 38
Bottom Bracket Shimano STePS E-5000
Cassette Shimano 11-32
Chain KMC X9
Headset FSA Orbit Integrated Sealed
Handlebar Opus Bronze 25 mm Rise
Stem OPUS Silver
Grips/Tape Velo ERGO Dual Density
Saddle Opus E-Bike With Handle
Seatpost Opus Silver 30.9 x 350/300
Wheels/Rims Alex EM23
Hubs Formula / Shimano
Tires Kenda Kwick Journey 700 x 42
Pedals Wellgo Flat Resin
Other Shimano STePS E-5000 Motor 250W 40Nm
Other Shimano E-8014 418Wh 36V Battery
Other Compatible with rack and fenders

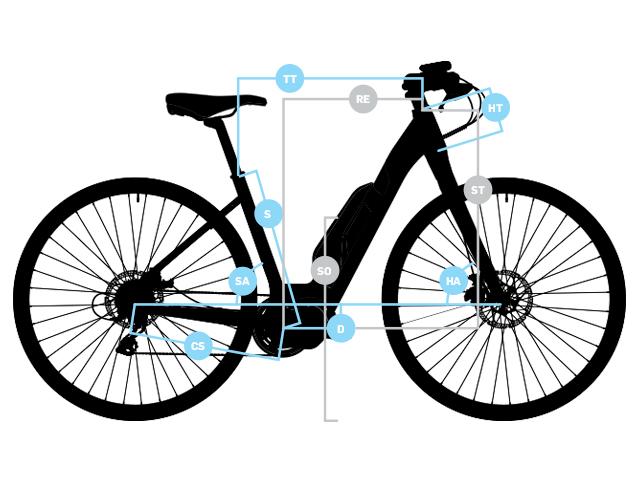

GEOMETRY

  S M L
Riders's height
± 5cm 155 165 178
± 2" 5'2" 5'6" 5'10"
Size (cm)
S - Seat tube (effective center-center in mm) 440 480 520
TT - top tube (effective center-center in mm) 590 605 620
HT - Head tube (mm) 145 145 155
HA - Head angle (mm) 71 71 71
SA - Seat angle (mm) 73 73 73
CS - Chain stay (mm) 440 440 440
D - BB drop (mm) 65 65 65
ST - Stack (mm) 623 623 632
RE - Reach (mm) 400 415 427
SO - Stand over (mm)
Handlebar width (mm) 580 580 580
Stem length (mm) 110 110 110
Crank length (mm) 170 170 170
